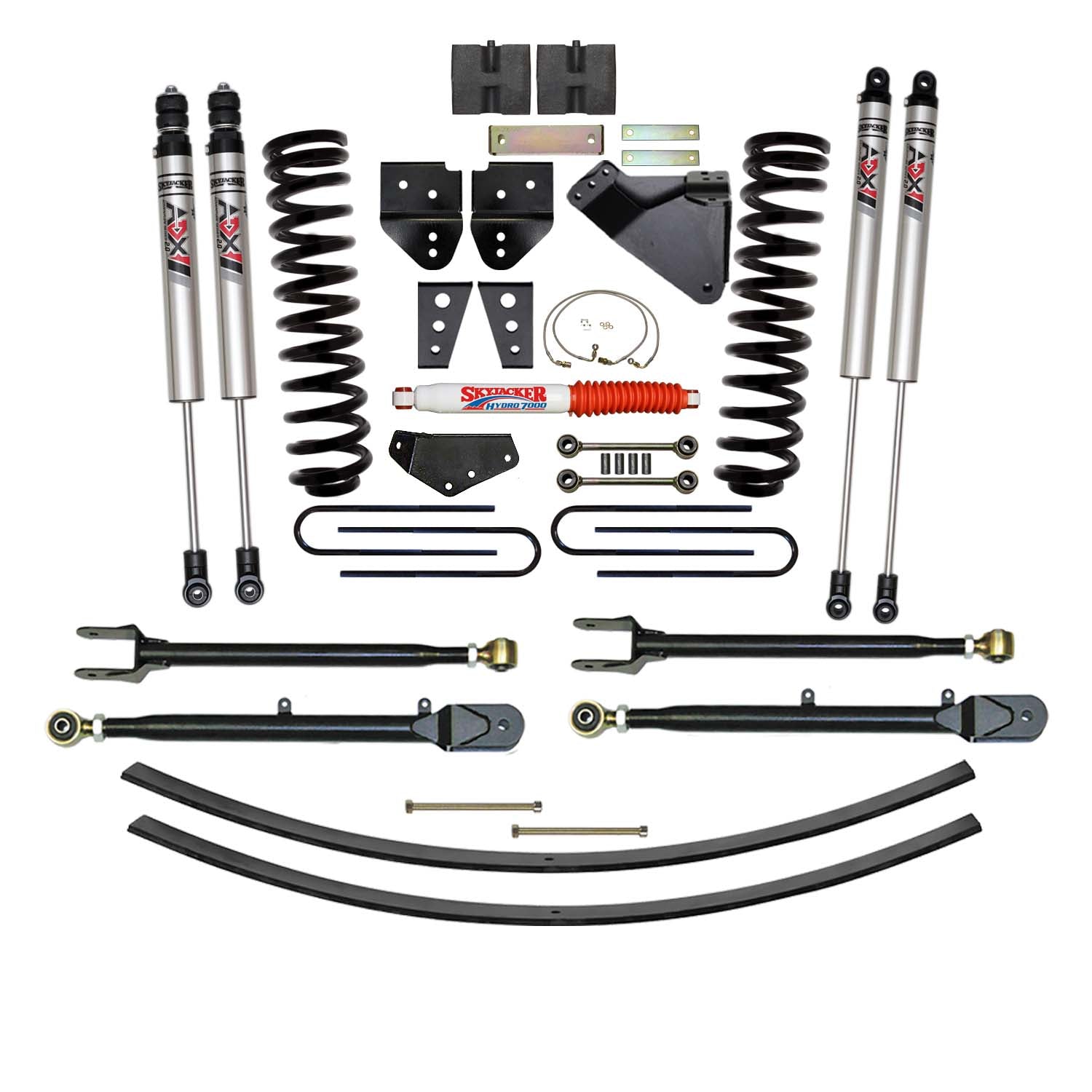

8.5 In. Suspension Lift Kit With ADX M2.0 Aluminum Monotube Shocks.

Skyjacker re-engineered the Super Duty's suspension via an impressive 4-Link Conversion. Replace your OEM radius arms with integrated radius arm drop brackets plus upper and lower adjustable control arms. Formed from 2-in. OD x 0.250 wall DOM tubing, both pairs of control arms are adjustable Flex Links. The adjustability allows proper caster settings to improve handling. Flex Links have a forked clevis end at the lower axle mount. The upper bracket mount has 1-1/4? forged rod end with steel encased rubber bushing. Drop brackets lower the rear mounts at the frame to maintain the correct caster specifications for proper alignment. Specifically engineered for Super Duty F250 4WD Gas motors, these 2-Stage Variable Rate Springs deliver a smooth controlled comfortable ride. First Flex Rate stage delivers a comfortable ride with the ability to flex/expand during full articulation. Second Ride Rate stage only engages after compression past Flex Rate: resulting in a smoother ride. An ultra heavy-duty track bar relocation bracket captures the front crossmember on both sides to prevent movement in this critical high-stress area and to keep the axle centered. Front sway bar links realign sway bar. Drop Brackets reposition front bump stops. Front brake line brackets and braided stainless steel brake lines correct and reposition the brake lines. A heavy-duty steering stabilizer relocation bracket and Hydro steering stabilizer included. A 5-in. rear block and U-bolt kit and Softride add-a-leaf delivers a more level stance. Carrier bearing lowering kit corrects driveline angles to eliminate driveshaft vibrations. Shocks are a key link in-between the chassis and your suspension. Front and rear damper capacity enhanced with ADX M2.0 Adventure Series Aluminum Monotube Shocks. ADX M2.0 has a race-inspired full-displaced valving system. Nitrogen charged with Internal Floating Piston Technology = Quickest Shock Reaction Time Ever.

• 38's Improve Your Off-Road Stance And Gain Ground Clearance.
• Softride Technology Enhanced Variable Rate Coil Springs.
• Ultra Heavy-Duty Track Bar Bracket Keeps Axle Centered.
• Yields More Lift In Front For A More Level Stance.
• ADX M2.0 Has Race-Inspired Full-Displaced Valving System.
• ADX M2.0 Nitrogen Charged / Internal Floating Piston Technology.
• ADX M2.0 Reacts Quicker To Improve Control And Stability.
• IFP Technology Provides Quickest Shock Reaction Time Ever.
• Increase Travel With Impressive 4-Link Flex Ride Enhancement.
• Proper Caster Maintains Factory Handling And Ride Quality.
• Radius Arm Mount Drop Brackets Properly Corrects Caster.
• Softride Heightened Rear Add-A-Leaf And Block / U-Bolt Kit.

Attributes:

• Brand Name: Skyjacker
• GTIN: 00803696300351
• Maximum Lift: 8.5
• Mounting Hardware Included: Yes
• Shocks Included: Yes

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24 x 6 x 6 inches
• Weight: 26.78 POUNDS
