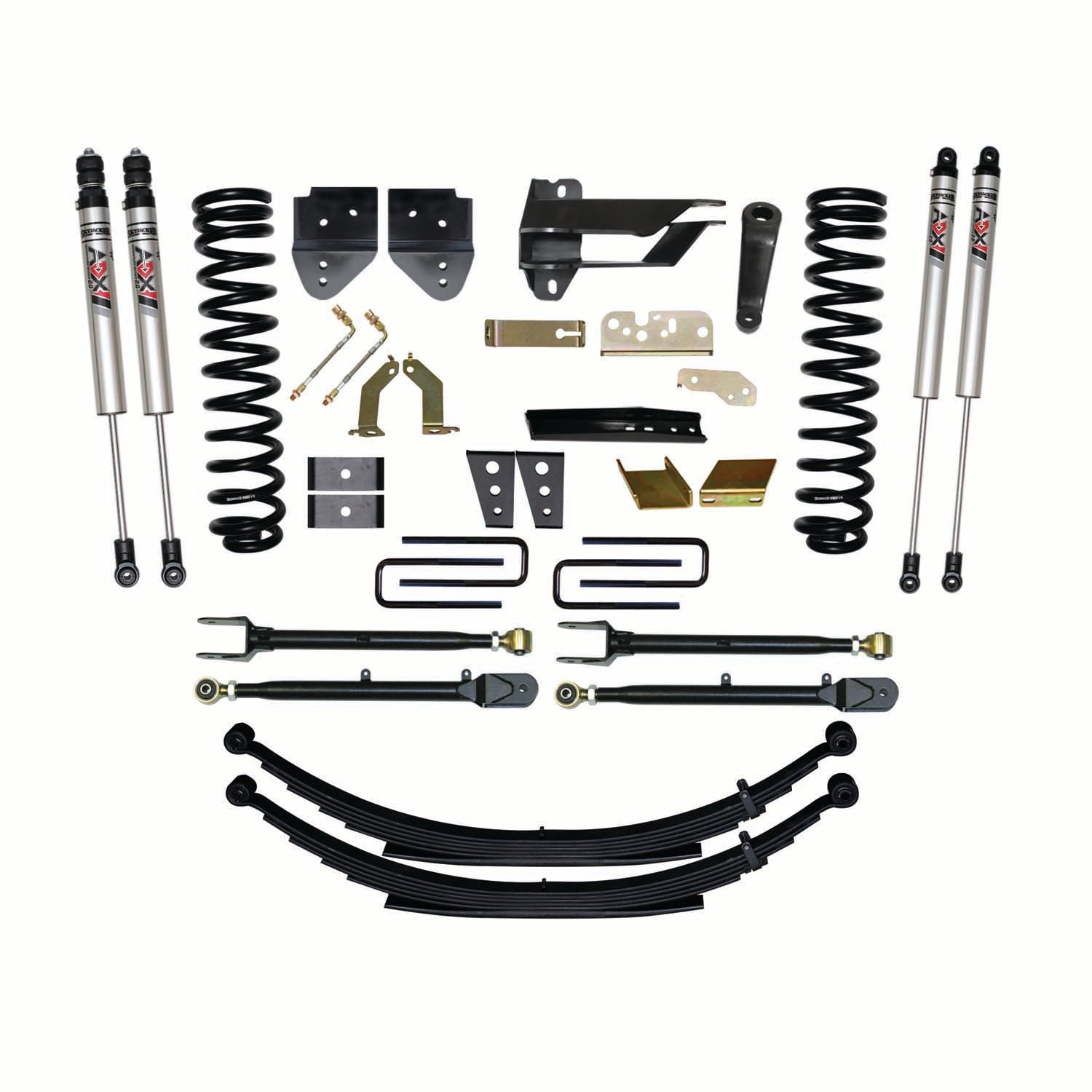

8.5 In. Suspension Lift Kit With ADX M2.0 Aluminum Monotube Shocks.

Skyjacker re-engineered the Super Duty's suspension via an outstanding 8.5-in. 4-Link Conversion. Replace your OEM radius arms with integrated radius arm drop brackets plus upper and lower adjustable control arms. Formed from 2-in. OD x 0.250 wall DOM tubing, both pairs of control arms are adjustable Flex Links. The adjustability allows proper caster settings to improve handling. Flex Links have a forked clevis end at the lower axle mount. The upper bracket mount has 1-1/4? forged rod end with RB style rubber bushing. Skyjacker's legendary Softride technology engineered processes achieve maximum wheel travel, ride quality and extends the long-lasting life of the coil spring. Skyjacker specifically engineered this Variable Rate Coil Spring for the Super Duty 4WD Gas to deliver a smoother ride. An ultra heavy-duty track bar relocation bracket captures the front crossmember on both sides to prevent movement in this high-stress area and to keep the axle centered. A drop pitman corrects steering angle. Lowering brackets realign the front sway bar for maximum sway control. Drop spacers reposition the front bump stops. Front brake line extension brackets correctly reposition the brake lines. A heavy-duty steering stabilizer relocation bracket corrects and enforces the stabilizer connection. Softride Technology leaf springs have tapered leafs to distribute loads more evenly and to create more flex at the leaf ends. Teflon? wear pads between leafs help eliminate friction. E-brake relocation brackets, bump stop spacers, rear braided stainless steel brake line extensions and rear exhaust hanger brackets are included. Shocks are a key link in-between the chassis and your suspension. Front and rear damper capacity enhanced with ADX M2.0 Adventure Series Aluminum Monotube Shocks. ADX M2.0 has a race-inspired full-displaced valving system. Nitrogen charged with Internal Floating Piston Technology = Quickest Shock Reaction Time Ever.

• 38's Improve Your Off-Road Stance And Gain Ground Clearance.
• Skyjacker Softride Technology Heightened Leaf Springs.
• Ultra Heavy-Duty Track Bar Bracket Keeps Axle Centered.
• Yields More Lift In Front For A More Level Stance.
• ADX M2.0 Has Race-Inspired Full-Displaced Valving System.
• ADX M2.0 Nitrogen Charged / Internal Floating Piston Technology.
• ADX M2.0 Reacts Quicker To Improve Control And Stability.
• Bump Stop Spacers Keep Suspension Travel Safely In Check.
• IFP Technology Provides Quickest Shock Reaction Time Ever.
• Increase Travel With Impressive 4-Link Flex Ride Enhancement.
• Radius Arm Mount Drop Brackets Properly Corrects Caster.
• Skyjacker Softride Technology Enhanced Spring Performance.

Attributes:

• Brand Name: Skyjacker
• GTIN: 00803696299198
• Lift Type: Front - Coil Springs
• Maximum Lift: 8.5
• Mounting Hardware Included: Yes
• Shocks Included: Yes

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 24 x 6 x 6 inches
• Weight: 26.88 POUNDS
