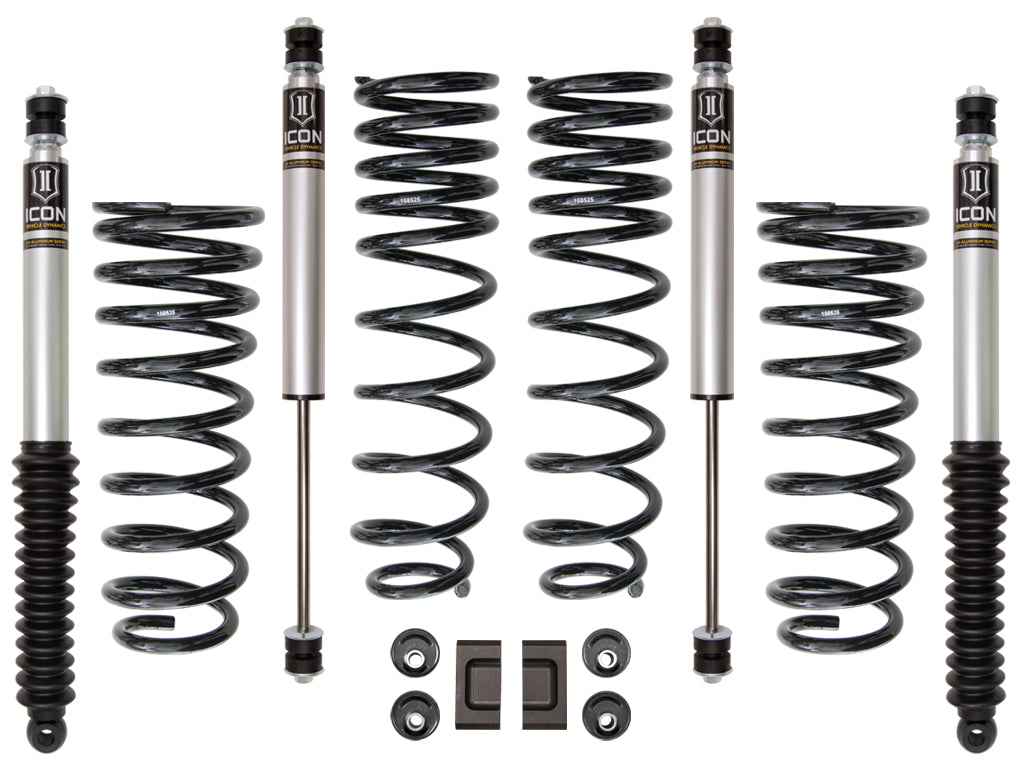

After an in-depth R&D process, ICON engineers have developed a 3” suspension system for the 80 Series that is aimed to improve on-road handling characteristics while also maximizing the Land Cruiser’s off-road potential. This Stage 1 system includes ICON-designed dual rate coil springs, caster correction bushings, sway bar relocation components, all bracketry and hardware required for install, and ICON Vehicle Dynamics 2.0 Aluminum Series shocks that feature a vehicle specific valving for optimized ride quality and balanced damping front to rear. This ICON Stage 1 System is the perfect entry level suspension system for drivers seeking a quality on-road ride with exceptional off-road characteristics as well.
- 3” lift height
- Approximately 40% increased front wheel travel over stock
- Approximately 35% increased rear wheel travel over stock
- ICON-engineered dual rate coil springs provide exceptional on-road ride quality and outstanding off-road performance
- Vehicle specific tuned 2.0 Aluminum Series front and rear shocks offer superior shock damping and control
- 2.0 aluminum body IFP shocks with 5/8" shaft
- Corrosion resistant anodized aluminum shock body
- 6061 aircraft grade aluminum CNC machined components
- 100% bolt-on design means no drilling, cutting or welding necessary for install
Attributes:
-
Brand Name: ICON Vehicle Dynamics
-
GTIN: 00840103417189
-
30: Yes
-
2064: Steel
-
2371: Yes
-
3096: Black
-
3097: Yes
-
3390: Performance
-
5520: 3
-
7325: 2
-
7326: 2
-
AAP_UDA_12: EA
-
AAP_UDA_22: 1
-
AAP_UDA_4: 55
-
California Prop 65 Warning: Yes
-
Dual Rate Coil Springs: Yes
-
OEM Wheels & Tires Fitment: Yes
-
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
-
Recommended Aftermarket Wheels: 17x8.5" w/ 4.63” Backspace
Extended Information:
-
Country of Origin: US
-
Emissions : Emissions Compliance Exempt
-
Life Cycle Status: Available To Order
Packing Information:
-
Quantity of Each: 1.0
-
Package UOM: EA
-
Dimension: 21.0000 x 13.0000 x 7.0000 inches
-
Weight: 109.0000 POUNDS
