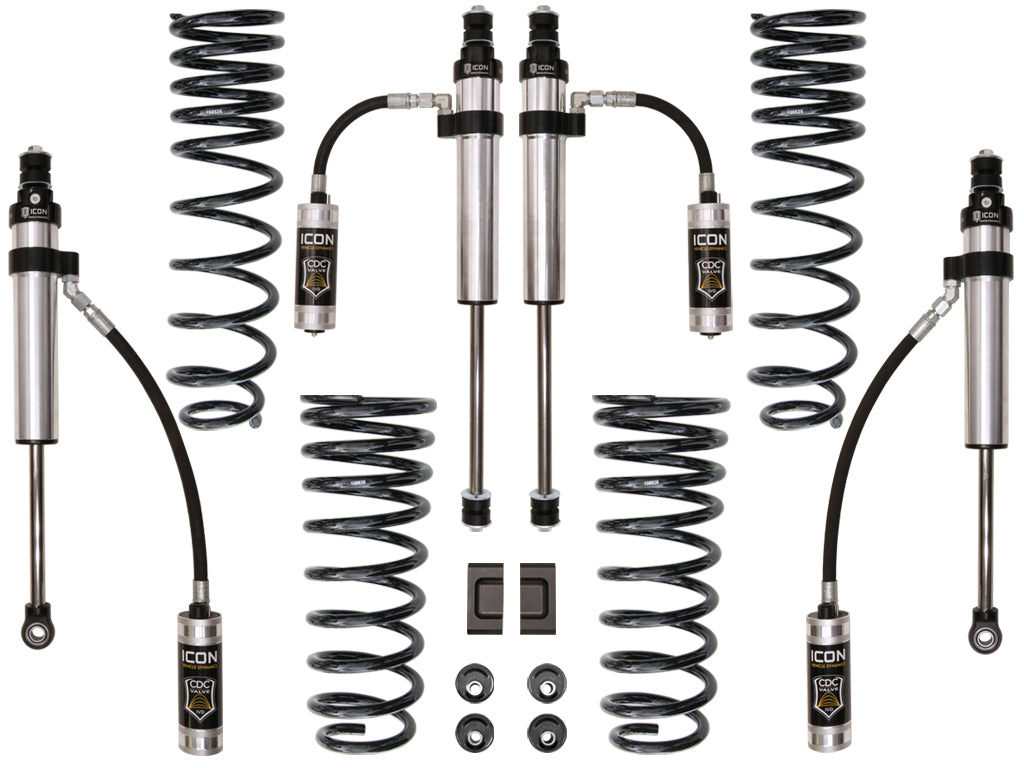

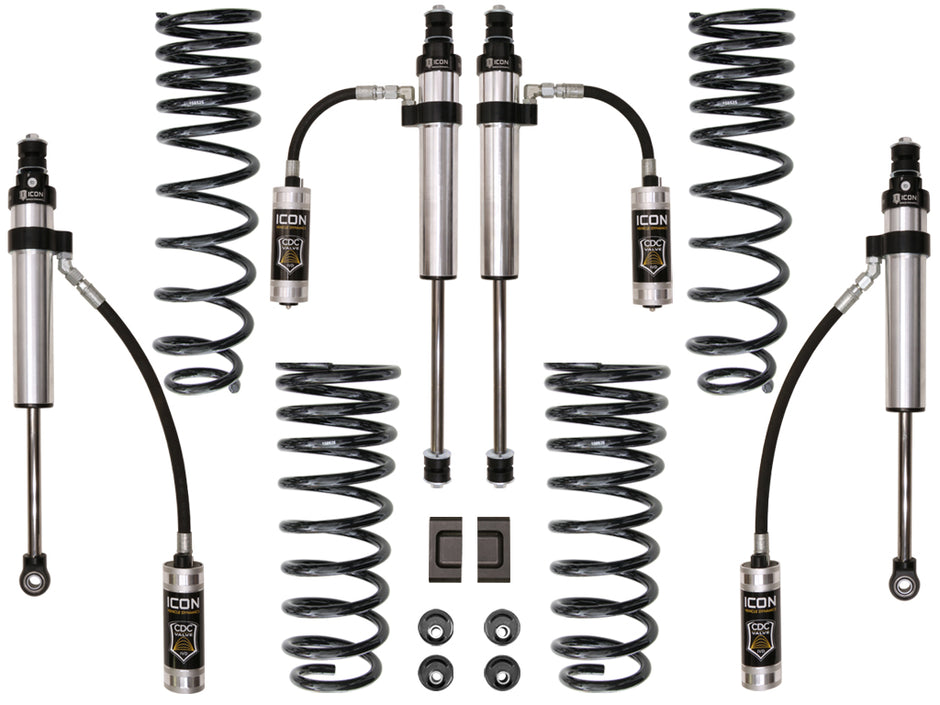

91-97 LAND CRUISER 80 SERIES 3" STAGE 3 SUSPENSION SYSTEM

After an in-depth R&D process, ICON engineers have developed a 3” suspension system for the 80 Series that is aimed to improve on-road handling characteristics while also maximizing the Land Cruiser’s off-road potential. This Stage 3 system includes ICON-designed dual rate coil springs, caster correction bushings, sway bar relocation components, all bracketry and hardware required for install, and ICON Vehicle Dynamics 2.5 Aluminum Series remote reservoir shocks that feature a vehicle specific valving for optimized ride quality and balanced damping front to rear. The 2.5" remote reservoir shocks front and rear ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during extended off-road use. The Stage 3 system outfits the 80 Series Land Cruiser with ICON 2.5 Aluminum Series shocks that feature CDCV, or Compression Damping Control Valve. This technology allows end-users to quickly adjust the ride quality of their shocks with the simple turn of a knob – no tools required! With ten high-resolution settings to choose from, the ICON CDC Valve will allow for the perfect ride quality across any terrain. This ICON Stage 3 System is the perfect suspension system for drivers seeking a quality on-road ride with outstanding off-road performance under extreme use, and the ability to fine tune the vehicle's performance for any conditions encountered.

• 3” lift height
• 100% bolt-on design means no drilling, cutting or welding necessary for install
• Approximately 40% increased front wheel travel over stock
• Approximately 35% increased rear wheel travel over stock
• ICON-engineered dual rate coil springs provide exceptional on-road ride quality and outstanding off-road performance
• Vehicle specific tuned 2.5 Series front and rear shocks offer superior shock damping and control
• 2.5 body remote reservoir shocks with 7/8" shafts
• 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• 6061 aircraft grade aluminum CNC machined components
• ICON CDC Valve allows quick and easy end-user compression adjustability

Attributes:

• Brand Name: ICON Vehicle Dynamics
• GTIN: 00840103417202
• 30: Yes
• 2064: Steel
• 2371: Yes
• 3096: Black
• 3097: Yes
• 3390: Performance
• 5520: 3
• 7325: 2
• 7326: 2
• AAP_UDA_12: EA
• AAP_UDA_22: 1
• AAP_UDA_4: 55
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• California Prop 65 Warning: Yes
• Dual Rate Coil Springs: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: 17x8.5" w/ 4.63” Backspace

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 31.0000 x 13.0000 x 7.0000 inches
• Weight: 155.0000 POUNDS
