A90 Supra / BMW B58 Charge-Air Cooler Manifold - Custom Finish

• Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core
• Individual Port Injection Bungs on Each Cylinder Runner (Comes Pre-Plugged)
• Individual 1/8" NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection
• Allows for Even Spray Distribution and Control for Maximum Performance and Engine Protection
• Individual 1/8" NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Air-Bleeding of the System
• Plug-and-Play design, Requiring No Modifications to Install

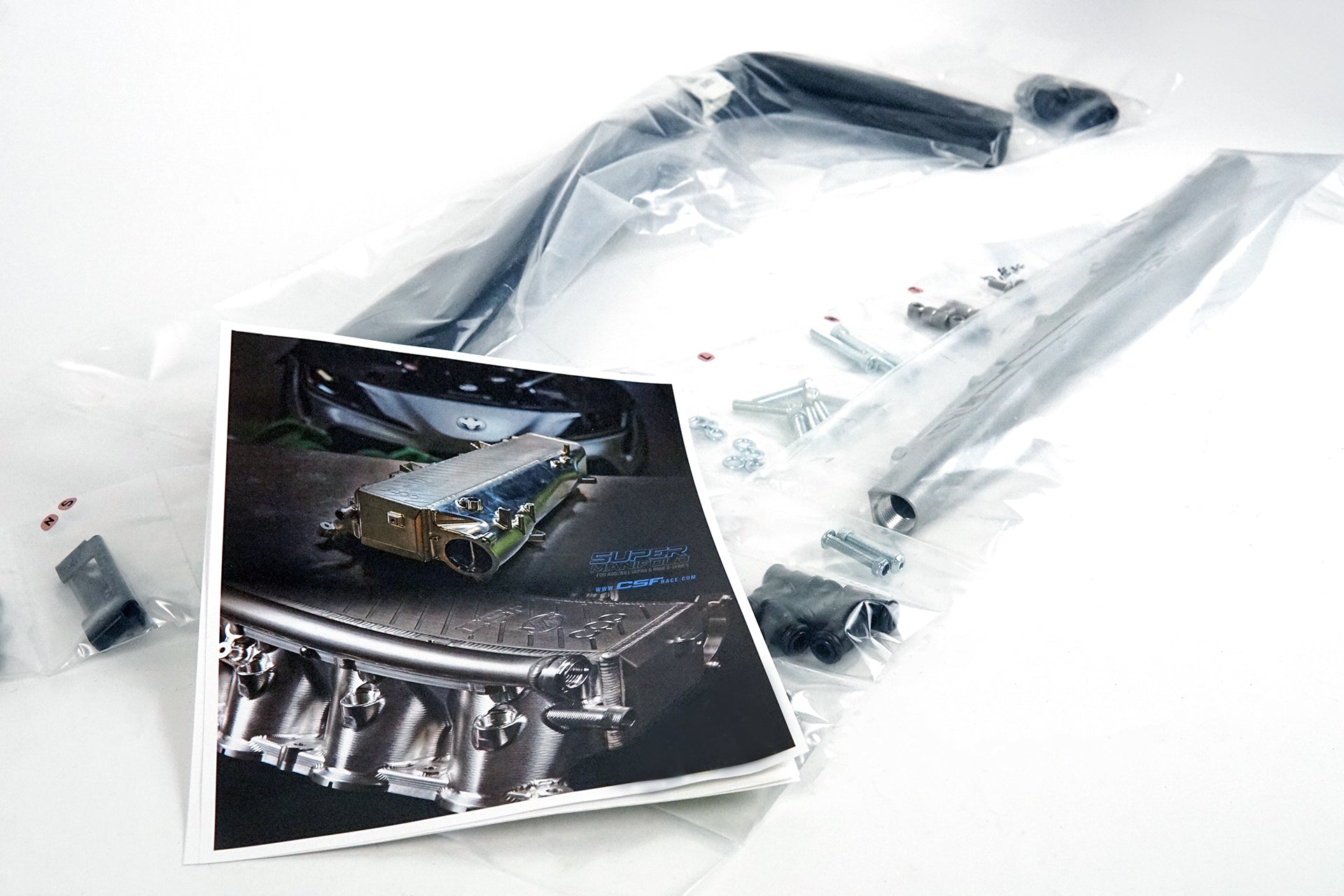

• Includes Hardware and Installation Kit with Picture Diagrams Containing 28 Different Parts for Easy Installation
• Can be Used With OEM or Aftermarket Engine Covers (with OEM Connections)

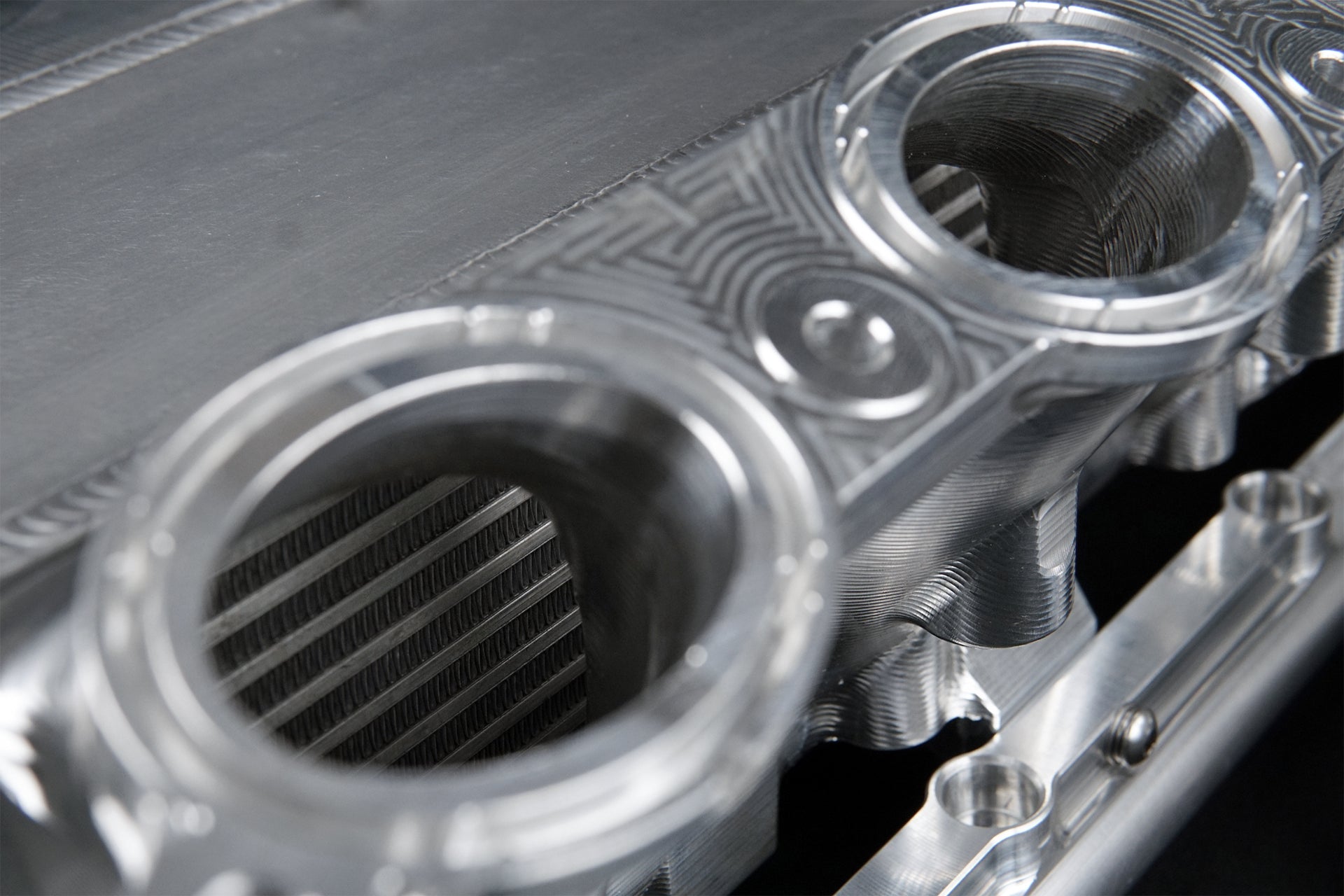

• Custom Finish - Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia
• CSF pressure tests each #8200 / #8200C manifold at 60-70 PSI for a period of 2-3 minutes during the Quality Control and Inspection process.
• The CSF manifold is not designed to operate above 60 PSI. Users who chose to operate their vehicle with the CSF manifold over 60 PSI does so at their own risk. Operation at these pressure levels will void the CSF Limited Warranty.
• Double the Capacity of the OEM Core (12 Rows of Water Cooling vs. OEM 6 Rows)
• Significantly Lower Pressure Drop Across the Core Compared to OEM
• Designed in SolidWorks Using Computational Fluid Dynamics (CFD)
• Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
• Easy Access to Spin-Off Oil Filter for Quick Oil Changes - No Need to Uninstall Manifold Every Oil Change
• Counter Balanced Design for Optimized Airflow
• Integrated Sensor Pad with Three 1/8" NPT Ports to Measure Additional Parameters
• Included Optional Fuel Rail for Top Feed Port Injection

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353082003
• ADD-ON: 8200S

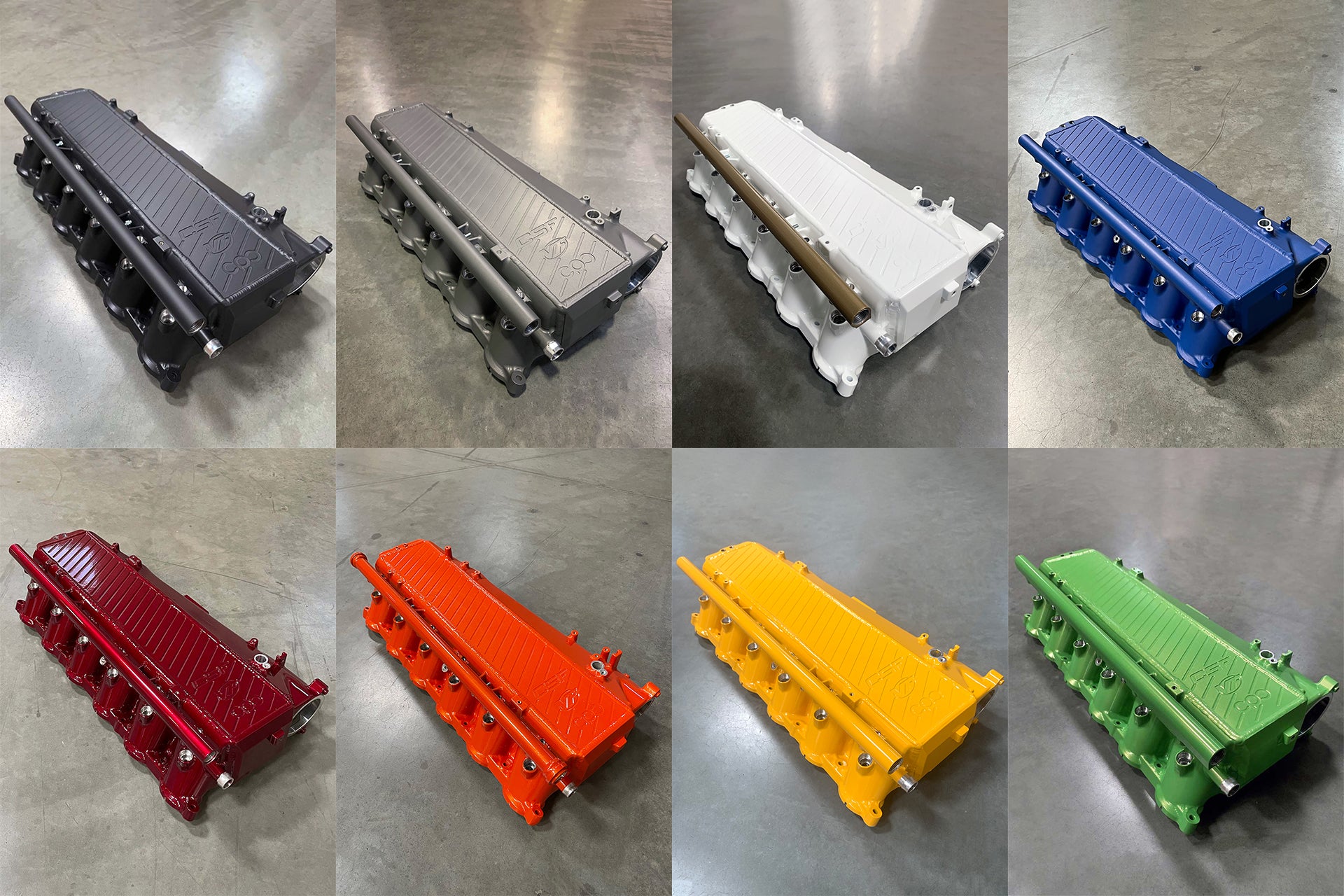

• Color: Custom FInish
• Core Color: Raw Aluminum
• Core Height: 101mm
• Core Length: 103mm
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 101mm
• Core Width: 540mm
• Grade Type: Performance
• Inlet Fitting Gender: Male
• Inlet Tank Material: Billet Aluminum
• Installation Type: Drop-In Fit Installation
• Mounting Hardware Included: Yes
• Outlet Fitting Gender: Male
• Outlet Thread Size: 3/4" - 10
• Outlet Thread Type Standard: UNC
• Outlet Type: Threaded Fitting
• Type: Air-to-Water
• Universal Or Specific Fit: Specific

Extended Information:

• Country of Origin: AU
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 28 x 10 x 15 inches
• Weight: 22 POUNDS
