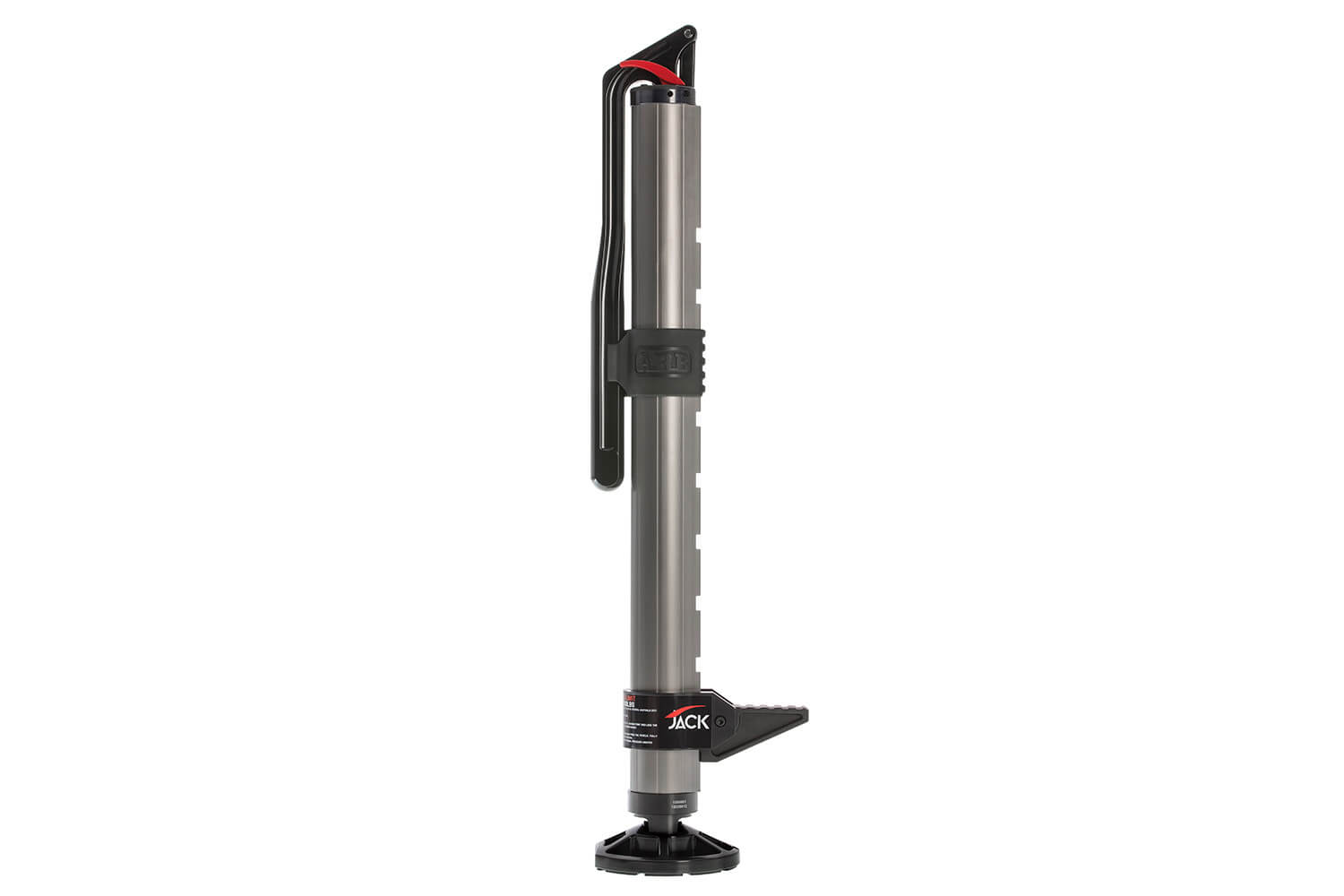

ARB - 1060001 - Hydraulic Recovery Jack

What happens when engineers get creative and bring hydraulic technology into the recovery space? Theres little doubt that the traditional farm jack is a handy piece of equipment to have when youre driving off road. You can use it to move your vehicle out of awkward situations, lifting vehicles to fill in voids beneath the tires or even as a bead breaker when you have to make a tire repair. But, as we all know, farm jacks can be dangerous. Theyre inherently unstable and there are countless YouTube videos of users getting injured from a rogue handle or getting their hands caught between the handle and the body of the jack. With this problem in mind, ARBs team of engineers was determined to come up with a better solution to the unsafe farm jack problem. The focus was to design a safer and easier mechanical jack while being lighter and more compact. Adding a new dimension to traditional techniques, the long-travel ARB JACK is backed by the unique power of hydraulic technology. Kicking into action when even the lightest force is applied to the handle, the hydraulics will smoothly jack the vehicle up at .5in increments with each downward maneuver. While in action, a black rubber body bumper shields the vehicle from risk of damage during the recovery. The easy-to-access red lowering lever ensures lowering the vehicle is achieved swiftly and safely thanks to the two-stage descent feature and safety stop. With the press of a lever, the user is able to adjust the lower speed between a slow or rapid descent. Carefully designed on the basis of matching ergonomic form with safe and reliable functionality, the handles high position and top pivot function provides users with ultimate control while preventing the need to uncomfortably kneel down to operate. Standing true to its adaptable character, JACK features an adjustable foot that can be rotated 360? via the shaft to match the angle of the terrain and reach a firm, stable connection between the base and ground.

• The Hydraulics Smoothly Jack The Vehicle Up At .5 in Increments
• Two Stage Descent Feature And Safety Stop
• Adjustable Foot That Can Be Rotated 360 Degrees
• Body Is Made From Hardy Aircraft Grade 6061 T6 Aluminum
• 9 Locating Points That Offer The Adjustable Hook A Wide Range
• Capable Of Lifting Up To A Total Of 4409 lbs

Attributes:

• Brand Name: ARB
• GTIN: 09332018054098
• Add-On: N/A
• Compressed Height: 35 inches
• Extended Height: 56 inches
• Lifting Range: 6-48 inches
• Material: Aircraft Grade 6061 T6 Aluminum
• Maximum Capacity: 4409 lbs
• Operating Mode: Hydraulic
• Standard: AS/NZ 2693 ? 2007; ASME B 30.1 ? 2015
• Stroke Extension: 0.5 inches
• Travel: 21-22 inches

Extended Information:

• Country of Origin: TH
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 39 x 8 x 8 inches
• Weight: 29 POUNDS
