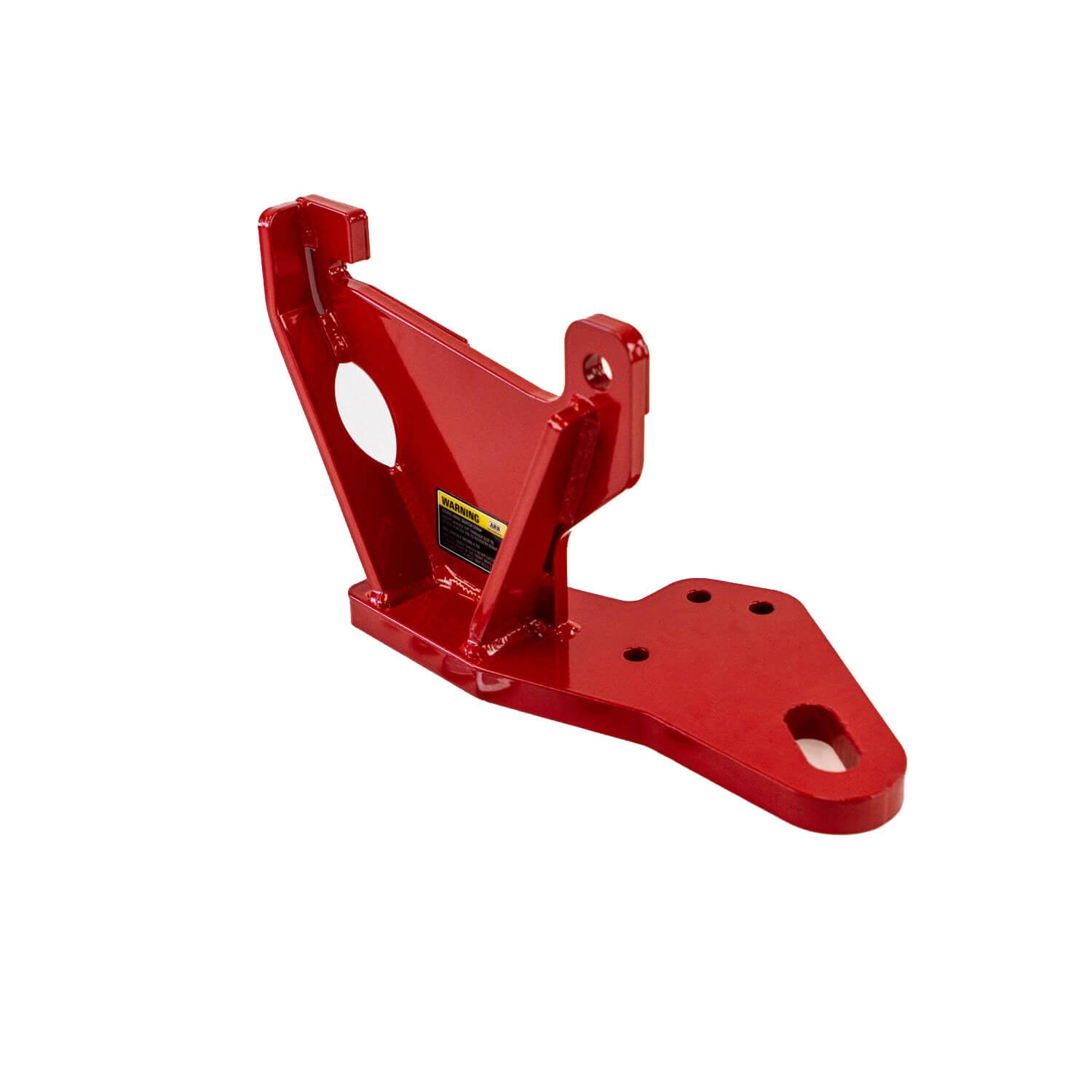

ARB - 2823010 - Recovery Point

Strong, reliable recovery points are essential for off-road driving but the lack of industry standards regarding rated tow points has caused confusion among four wheel drivers for many years. With this in mind, ARB has sought to set an industry benchmark for how recovery points are designed, tested and selected by 4WDers. ARB's recovery point range seeks to address issues surrounding generic tow points and their unsuitability for a range of recovery situations. These issues include questionable and untested mounting locations, confusion regarding the selection of rated shackles and straps, and the inability of generic tow points to safely handle stresses generated by an angled pull during vehicle recovery. ARB aims to make it easy to find the correct recovery point for each individual customer with an engineered ?Recovery Train' in which each vehicle specific recovery point is rated for use with a 4.75t rated bow shackle and 17,600lbs snatch strap.

• Vehicle Specific Design
• Rated For Use with a 4.75T Bow Shackle and 17,600LB Recovery Strap

Attributes:

• Brand Name: ARB
• GTIN: 09332018046413
• Add-On: N/A
• Color: Red

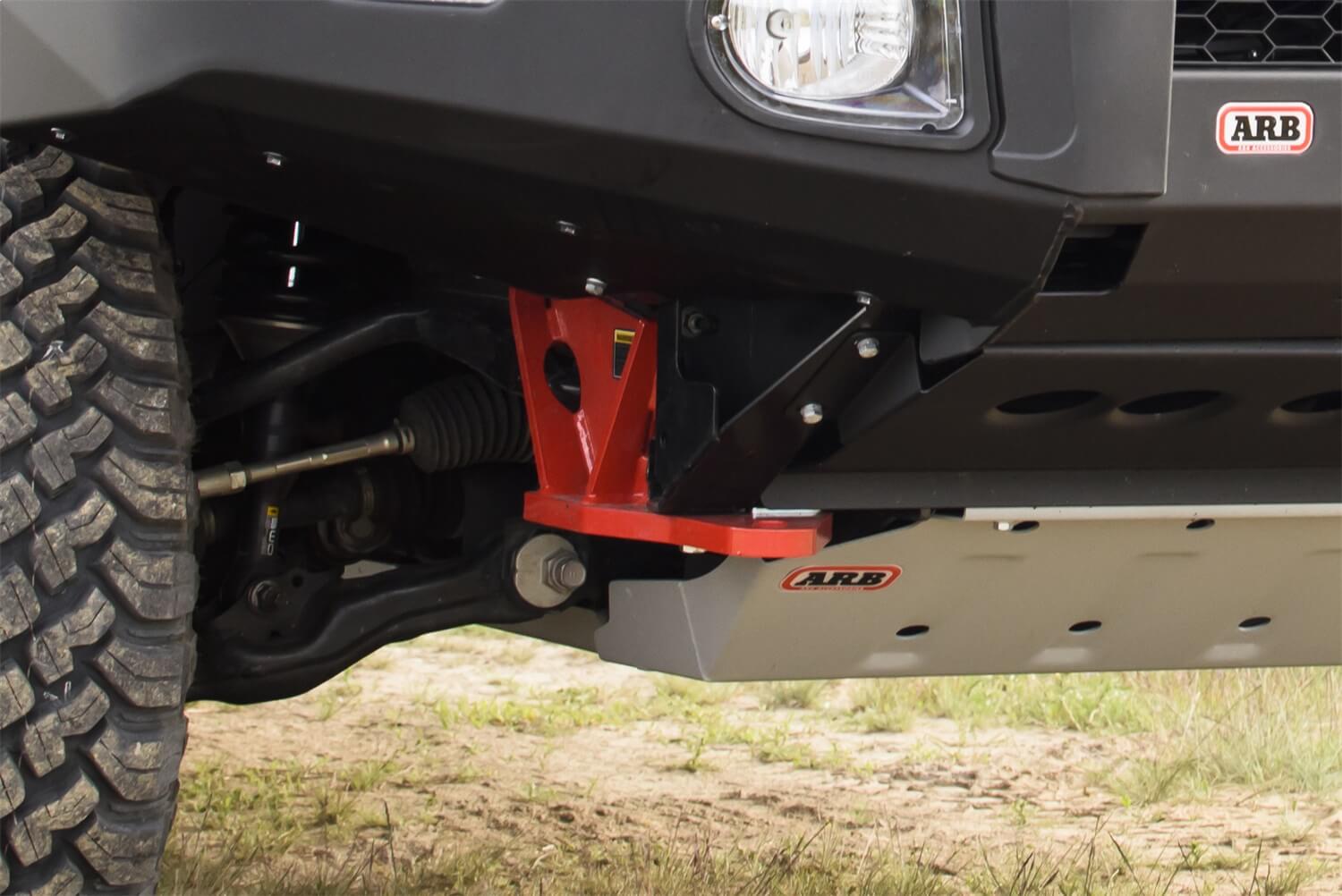

• Fitting Position: Front Right
• Material: 305 Grade Steel; 20mm thickness
• Maximum Load: 17640 lbs

Extended Information:

• Country of Origin: AU
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 16 x 10 x 12 inches
• Weight: 22 POUNDS
