ARB - 3421950B - Zenith Winch Bumper

Bridging functionality and style, ARB’s Zenith Bumper turns heads whilst providing your vehicle with ARB’s industry-leading protection and performance. The Zenith is constructed from laser-cut and formed durable steel, finished with ecoat, meta prep and satin black powder coat for ultimate corrosion resistance. Extensive design work has been undertaken to maximize strength and aesthetics in this new low profile design bumper. Engineers have integrated twin 17,637lbs (8t) rated recovery points into the Zenith bar making it an complete solution. The forged recovery points are shaped and formed to protect soft shackles and prevent point load on steel bow shackles, solving a common issue. The Zenith boasts integrated front skid plates which, along with the under wings pans of the bumper, provide protection to vulnerable vehicle components. Functionally was top of mind when designing the Zenith, ensuring powertrain performance is not affected with the design ensuring maximum air flow to critical cooling systems. OEM fog lamps are utilized via dual apertures and the forward facing radar has been relocated, however the OE Front Cross Traffic Alert system is not compatible with this bumper. Finally, the integrated winch cradle is compatible with most low mount winches up to 10,000lbs.

• Two 8T rated recovery points, engineered and integrated into the bumper, rated to 17,637lbs (8T) and finished in red powder coat
• Skid plates included, with one heavy forged center piece and additional side bash plates for added protection on rugged terrain
• Compatible with OE fog lights (on applicable models)
• Slimline design profile, with minimal front overhang
• Built-in winch cradle, the Zenith bumper is compatible with most low mount winches up to 10,000lbs, Including ARB Winch ARW100SA
• Compatible with factory forward Radar, Parking Sensors, and Airbag systems. Not compatible with FCTA system.
• Made from durable laser cut and formed 3mm steel for maximum strength-to-weight ratio, the Zenith is meta prep primed, and powder coated in an satin finish for corrosion resistance
• A removable center grille allows for the install of up to seven 4in pod lights or lightbars up to 30in

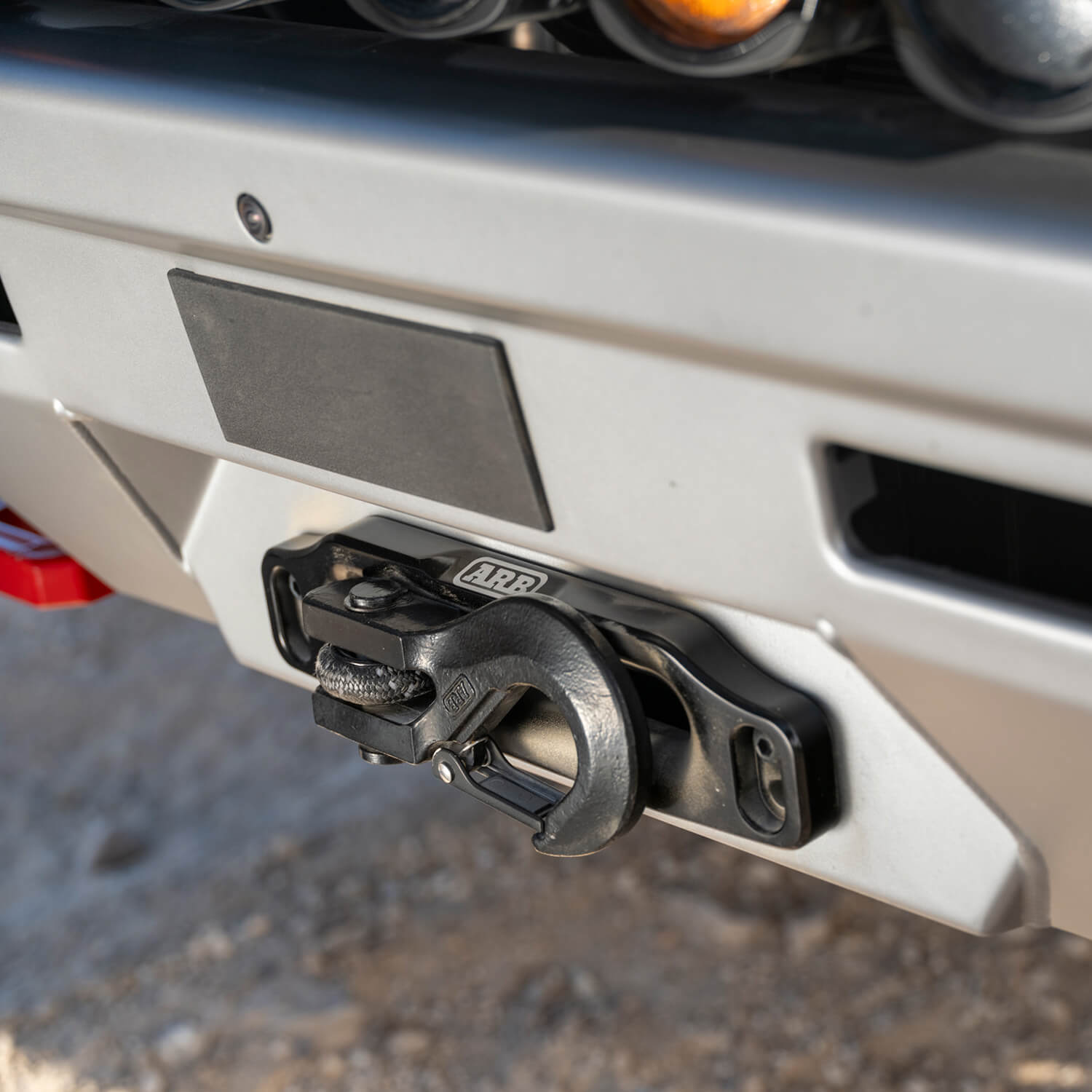

• Twin recessed recovery jack points on the front of the bumper to ensure safe and secure locations to perform an recovery. Compatible with ARB Jack and traditional farm jacks.

Attributes:

• Brand Name: ARB
• GTIN: 09332018156655
• ARB Fog Lights Compatible: No
• Add-On: ARB - 3421950 - Zenith Winch Bumper; ARB - 6178715 - Zenith Bumper Skid Plate Kit; ARB - 6178716 - Zenith Bumper Fitting Kit
• Color: Black & Silver
• Finish: Satin
• Fog Lights Included: No
• Material: Steel
• OE Fog Lights Compatible: Yes
• Recovery Points: Yes (2)
• Winch Compatible: Yes

Extended Information:

• Country of Origin: TH
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 81.1 x 19.3 x 26.8 inches
• Weight: 246 POUNDS
