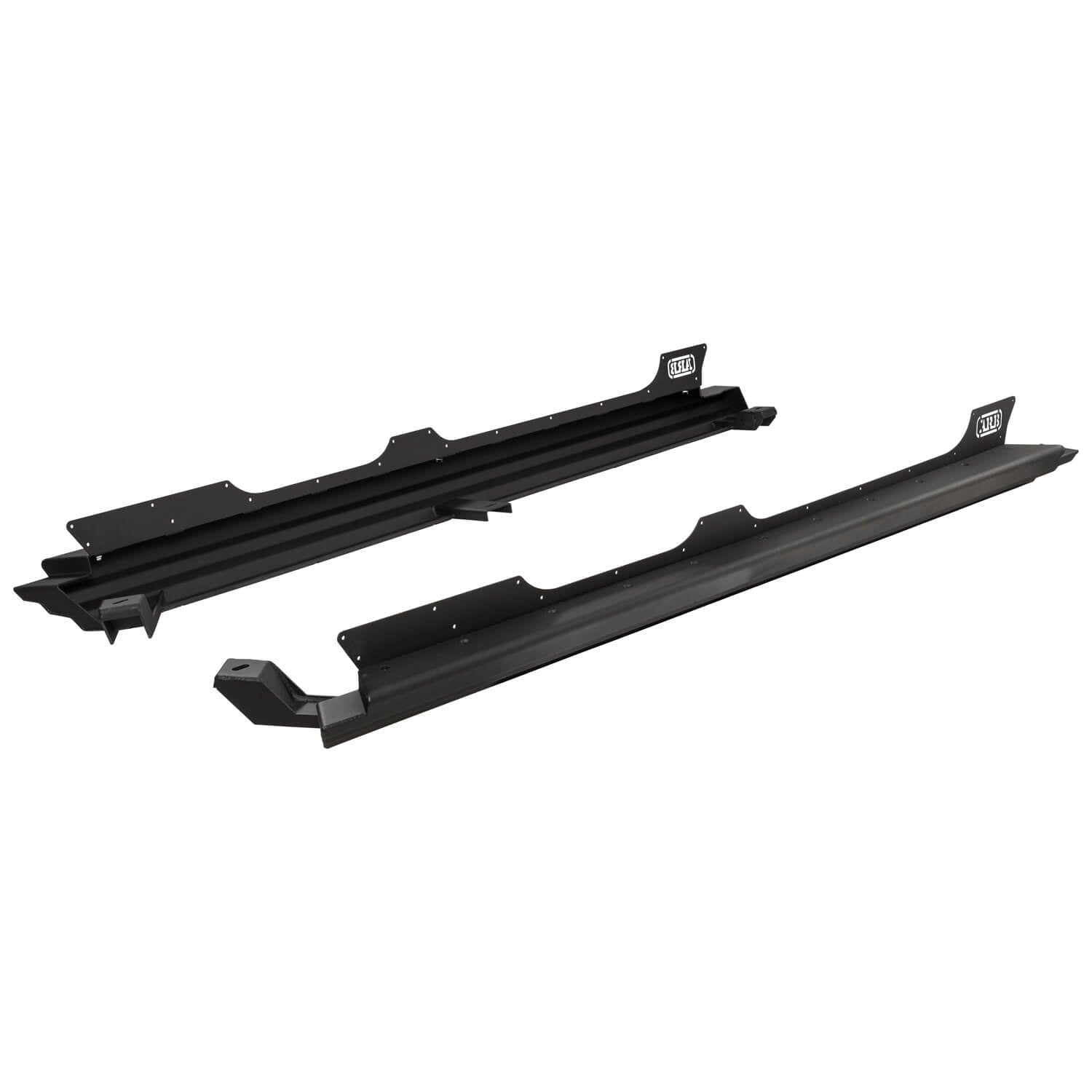

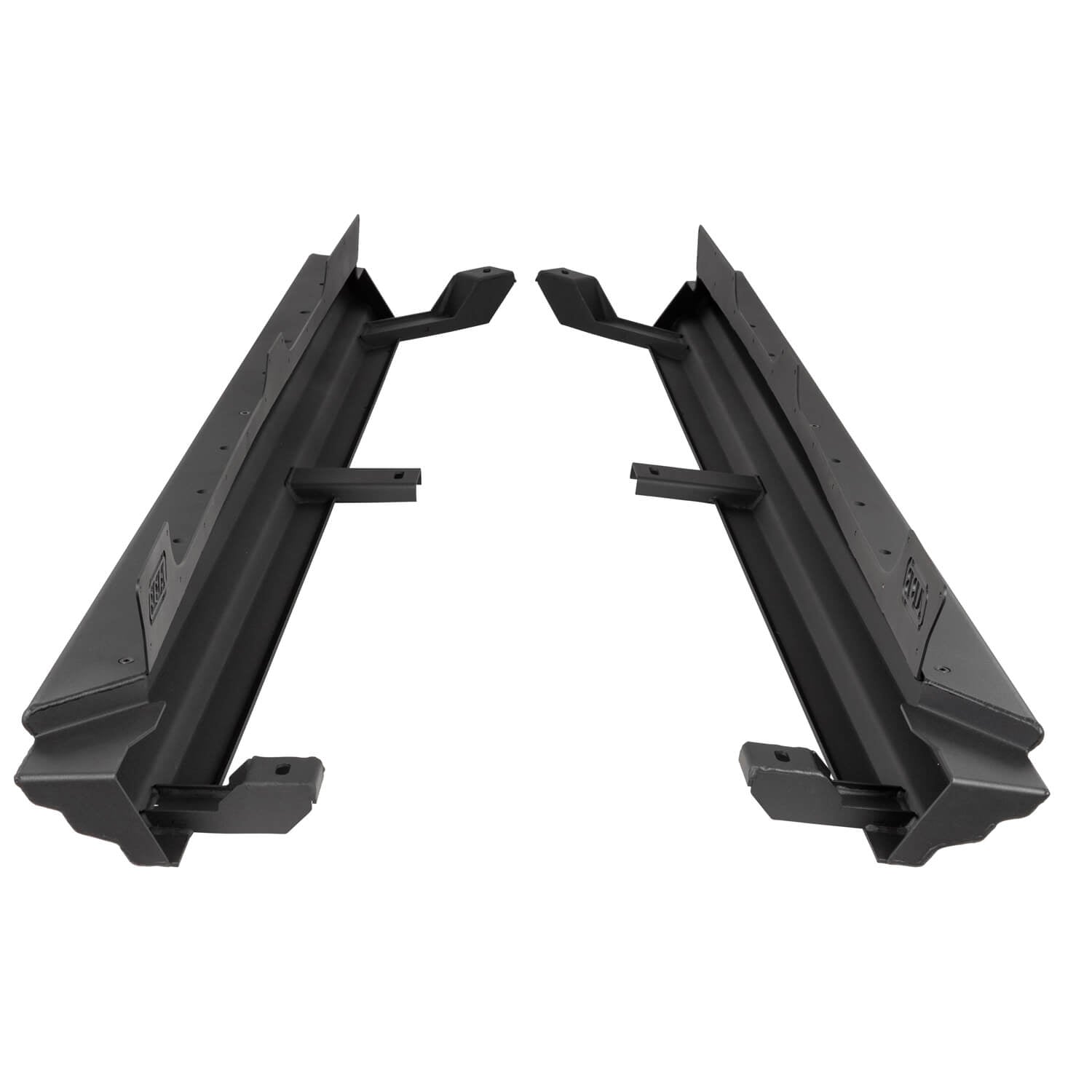

ARB - 4450260 - Rock Sliders

Combining functionality, strength, protection and a visually unique design, ARB has developed an all-new rock slider to suit the JT Gladiator. These ARB Rock Sliders are made up of both the slider assembly and a lower body mount to spread the load and protect the vulnerable lower sill area of the JT when used off road. The multi-folded slider uses chassis-mounted body mounts to spread the load along the length of the vehicle sills and not restrict breakover angle. The sliders are manufactured from multi-folded 4mm laser cut and pulse welded sheet steel. The multi-folded sheet steel provides strength without the need for thicker material to keep weight to a minimum. The profile of the slider against the body is curved to match the vehicle shape. To provide additional mounting, a sill plate is fitted with M6 nutserts and M6 button head zinc-plated Torx bolts. The plate is manufactured from 3mm laser cut and folded sheet steel and features a laser cut ARB logo at the front of the sill plate. To complement the ARB JT protection equipment range the Rock Sliders are finished in Integrit textured black powder coat.

• Vehicle-specific design to suit the Jeep Gladiator.
• Durable steel construction for maximum protection.

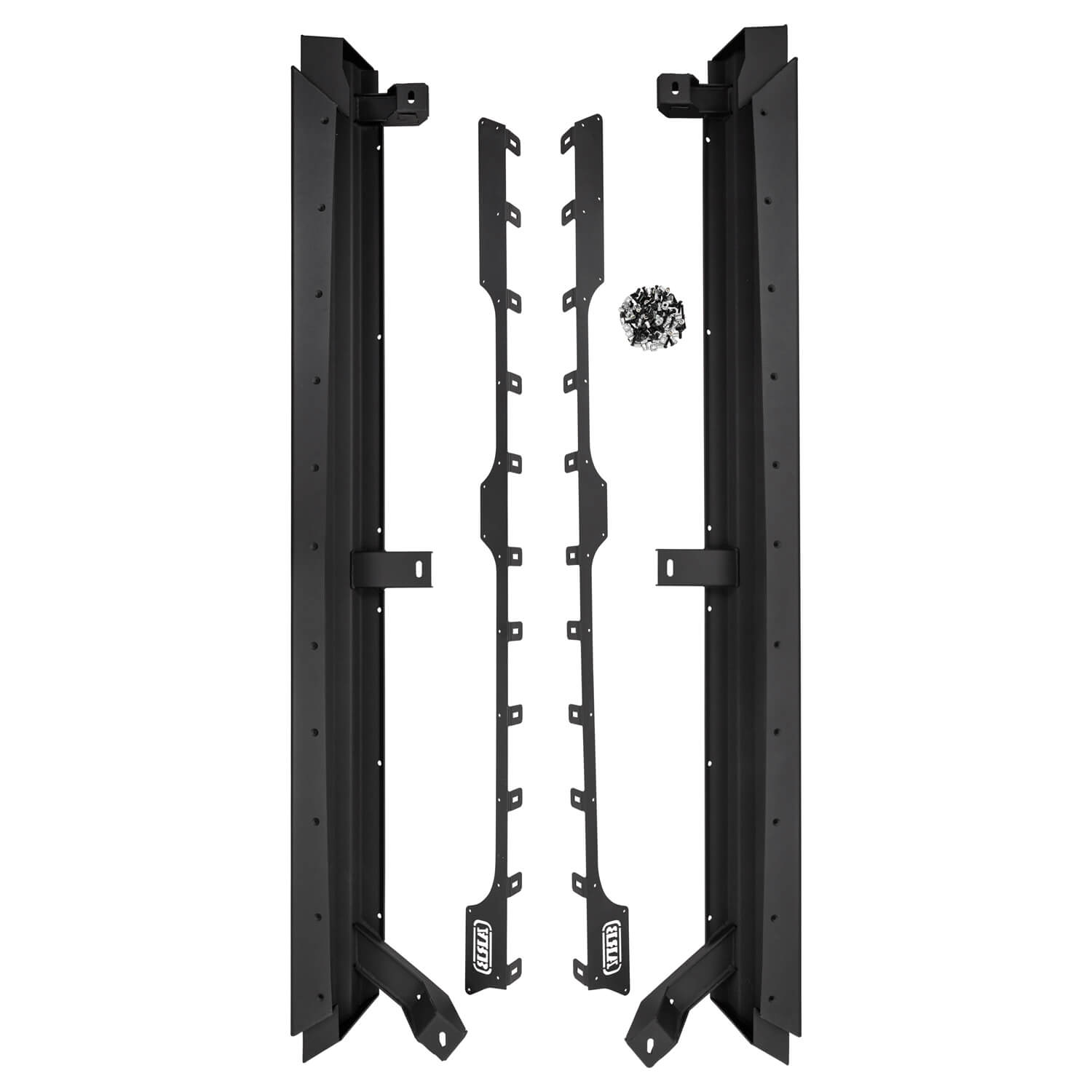

• Two-piece design of sill mount and slider assemblies.
• Slider section manufactured from 4mm laser cut steel.
• Slider section mounts to chassis-mounted body mounts.
• Mounts to vehicle sill, 3mm laser cut steel.
• Sill panels mount to vehicle with M6 nutserts and M6 button head Torx bolts.
• Approximate weight of the sliders are 79lbs (pair).
• Finished in Integrit textured black powder coat.

Attributes:

• Brand Name: ARB
• GTIN: 09332018069085
• Add-On: N/A
• Color: Black
• Finish: Textured
• Material: Steel

Extended Information:

• Country of Origin: TH
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 95 x 22 x 12 inches
• Weight: 146 POUNDS
