ARB - 5480100 - Under Vehicle Protection

ARB Under Vehicle Protection panels are designed to give protection to vital underbody components including steering, engine sump, transmission and transfer case. Laser cut, press formed and folded 3mm sheet steel is used in ARB UVP to provide superior strength. The ARB UVP to suit the Ford Bronco consist of four carefully designed panels. The front, sump and transmission and transfer case panels bolt directly to the chassis to provide continuous under vehicle protection from the front bumper to the rear of the transfer case. Each UVP panel includes a return edge to add strength to the 3mm panel. To retain the strength and protection required of an ARB UVP, full vehicle servicing will require the removal and refit of panels to obtain access to drain plugs and other service points. This provides an opportunity to check for damage and buildup of dirt and foreign matter. Provision is provided to drain engine oil only with removable insert in the second panel. ARB's UVP will fit with or without an ARB front bumper. Fitment has not been confirmed with other bumper designs.

• 3mm press-formed, folded sheet steel adds superior strength
• Made from laser cut sheet steel
• Zinc plated and powder coated in a silver textured finish
• Recessed mounting bolts are protected and easy to remove for vehicle servicing
• All steel components are protected with either powder coat or zinc plating
• Kit includes illustrated fitting instructions

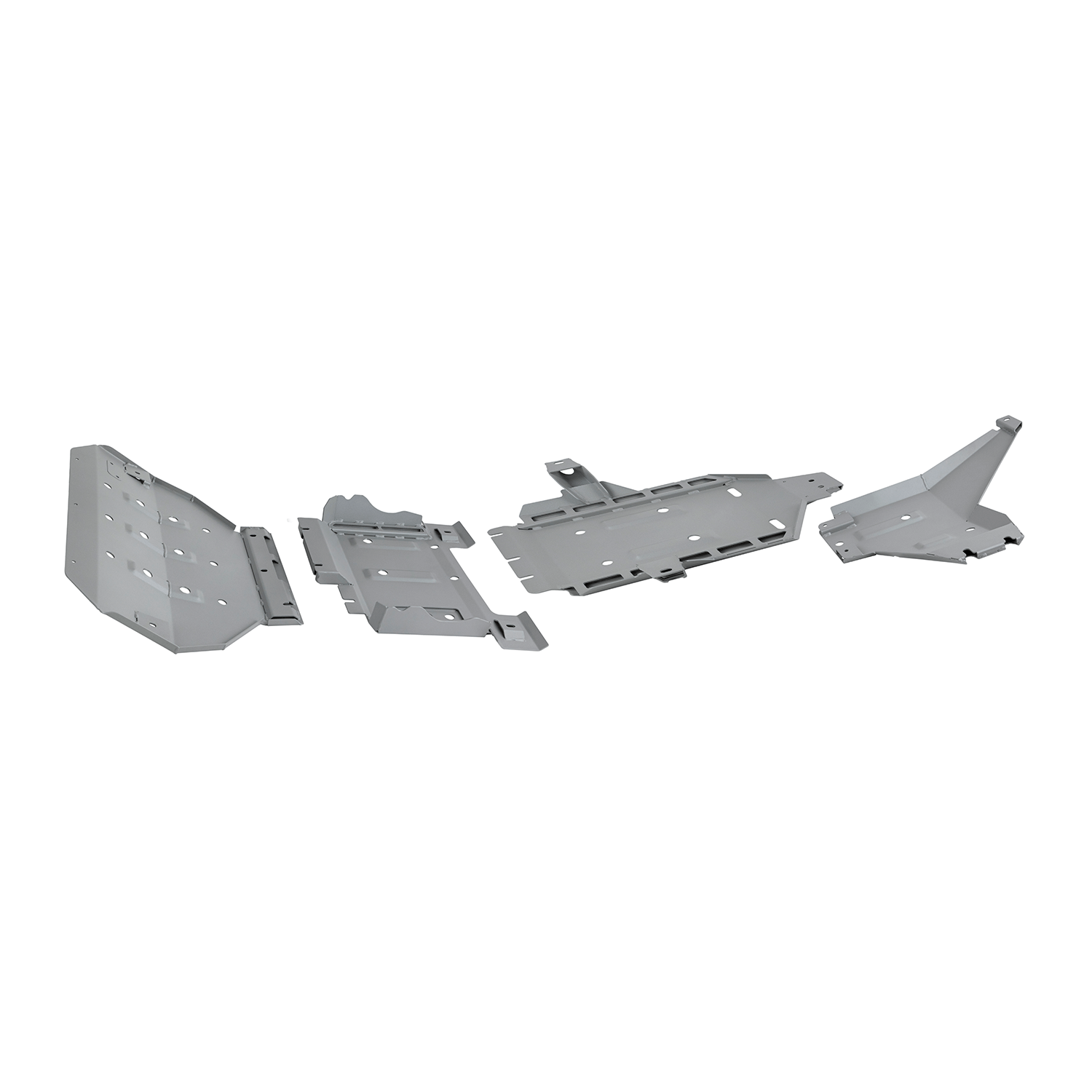

• Four panels to help protect the front engine, front differential, rear engine sump, power steering, stabilizer bar, transmission, and transfer case

Attributes:

• Brand Name: ARB
• GTIN: 09332018087157
• Add-On: N/A

Extended Information:

• Country of Origin: TH
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 45 x 29 x 8 inches
• Weight: 95 POUNDS
