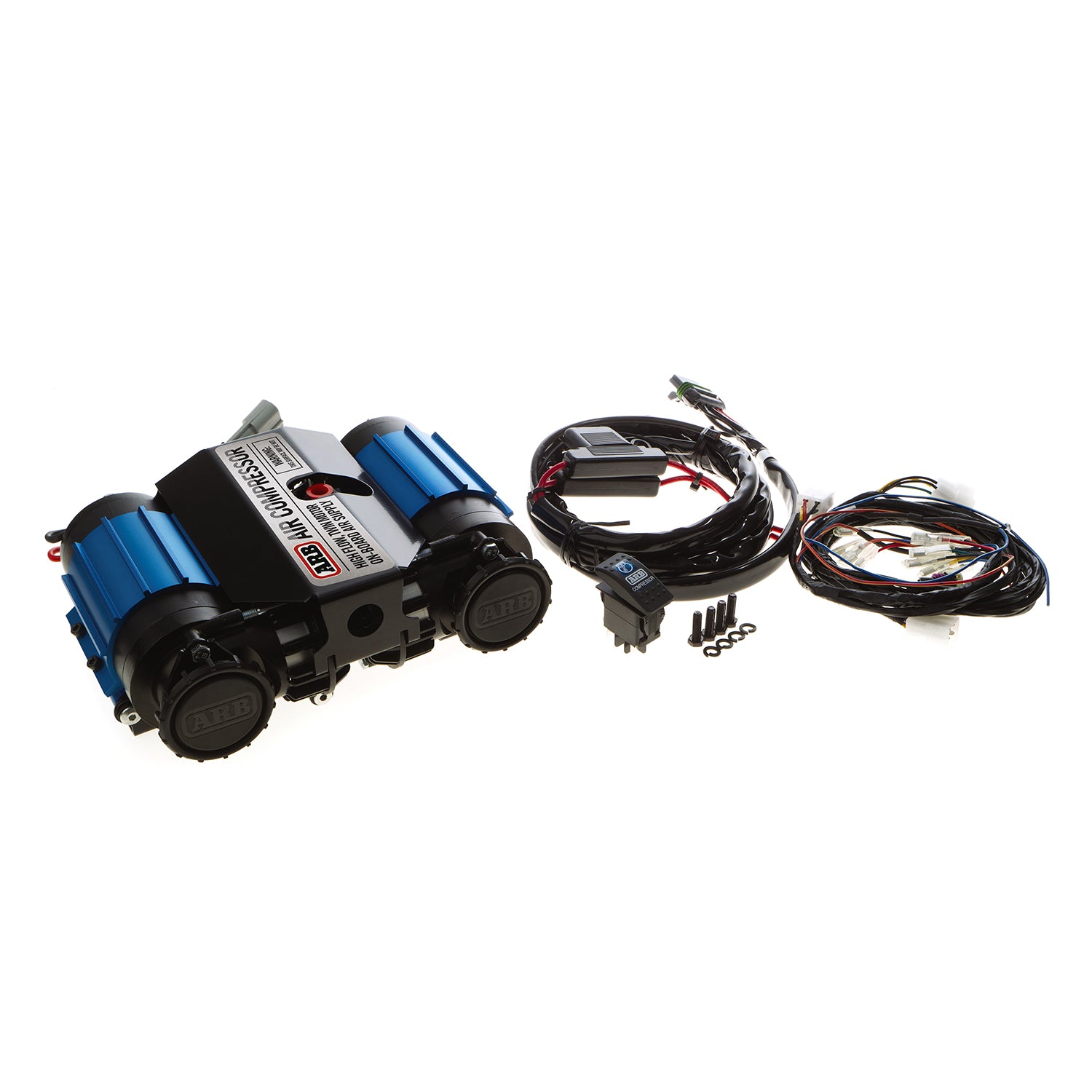

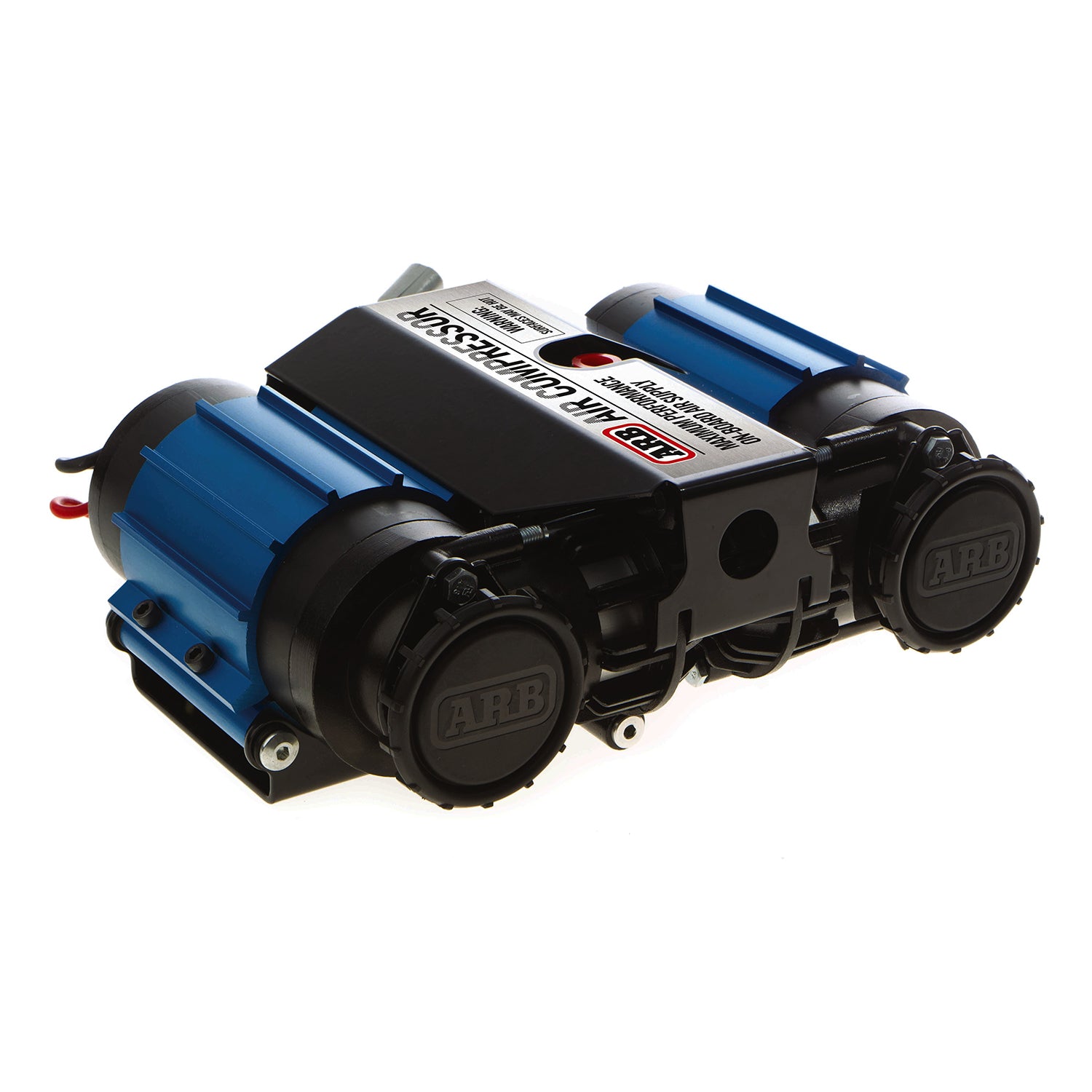

ARB - CKMTA12 - Air Compressor

ARBs new CKMTA12 and CKMTA24 twin on-board compressor kits were designed to fill the market need for a compact sized yet high-volume compressed air source to suit the high volume airflow needs of most air powered tools, and also to suit the actuation and control needs of the ARB Air Locker , and the harsh and demanding environment of the ARB Air Locker user.

• Designed for inflating Tires and Air Locker activation when used in conjunction with optional accessories
• Over-pressure safety valve equipped
• On-board model available in either a 12V or 24V configuration
• Suitable for many air tools when used in conjunction with a 4L air tank (optional with on-board models)
• 100% duty cycle
• Sealed for moisture and dust resistance
• Hard anodized cylinder bores for reduced friction
• Teflon impregnated carbon fiber piston seals for maximum trouble free life
• Anodized mounting bracket dissipates heat
• Integrated pressure switch, relays and IP55 (waterproof/dustproof) brushless fan cools electronics, motors and cylinder heads

Attributes:

• Brand Name: ARB
• GTIN: 09332018003836
• Add-On: N/A
• Air Flow 0PSI: 6.16CFM
• Air Flow 29PSI: 4.68CFM
• Duty Cycle: 100% 60/0
• Height: 4 inch
• IP Rating: IP55
• Length: 10.8 inch
• Max Amps: 68.6
• Max PSI: 150
• Volts: 12V
• Weight: 17.4 lb
• Width: 7.5 inch

Extended Information:

• Country of Origin: Australia
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 20 x 11 x 5 inches
• Weight: 21 POUNDS
