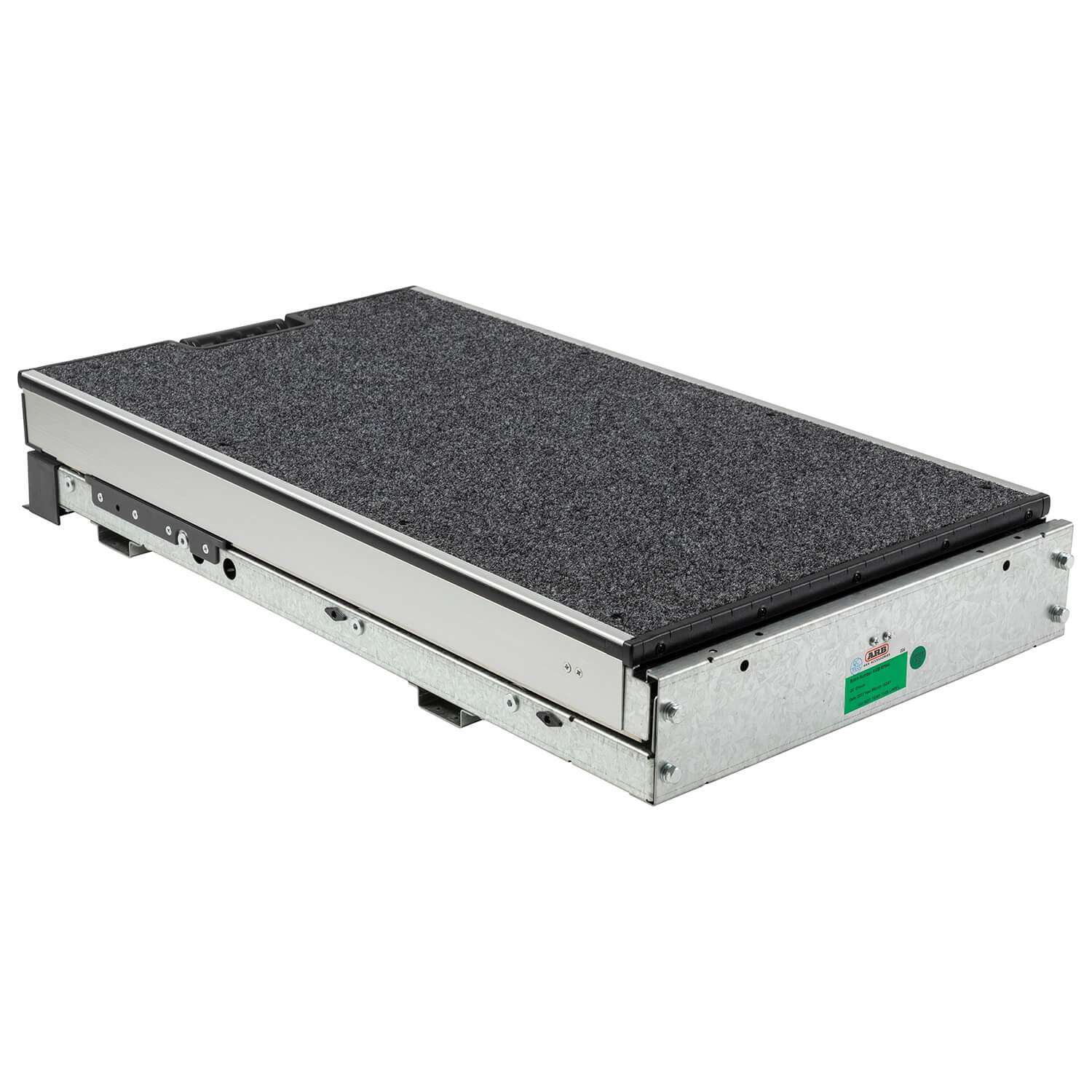

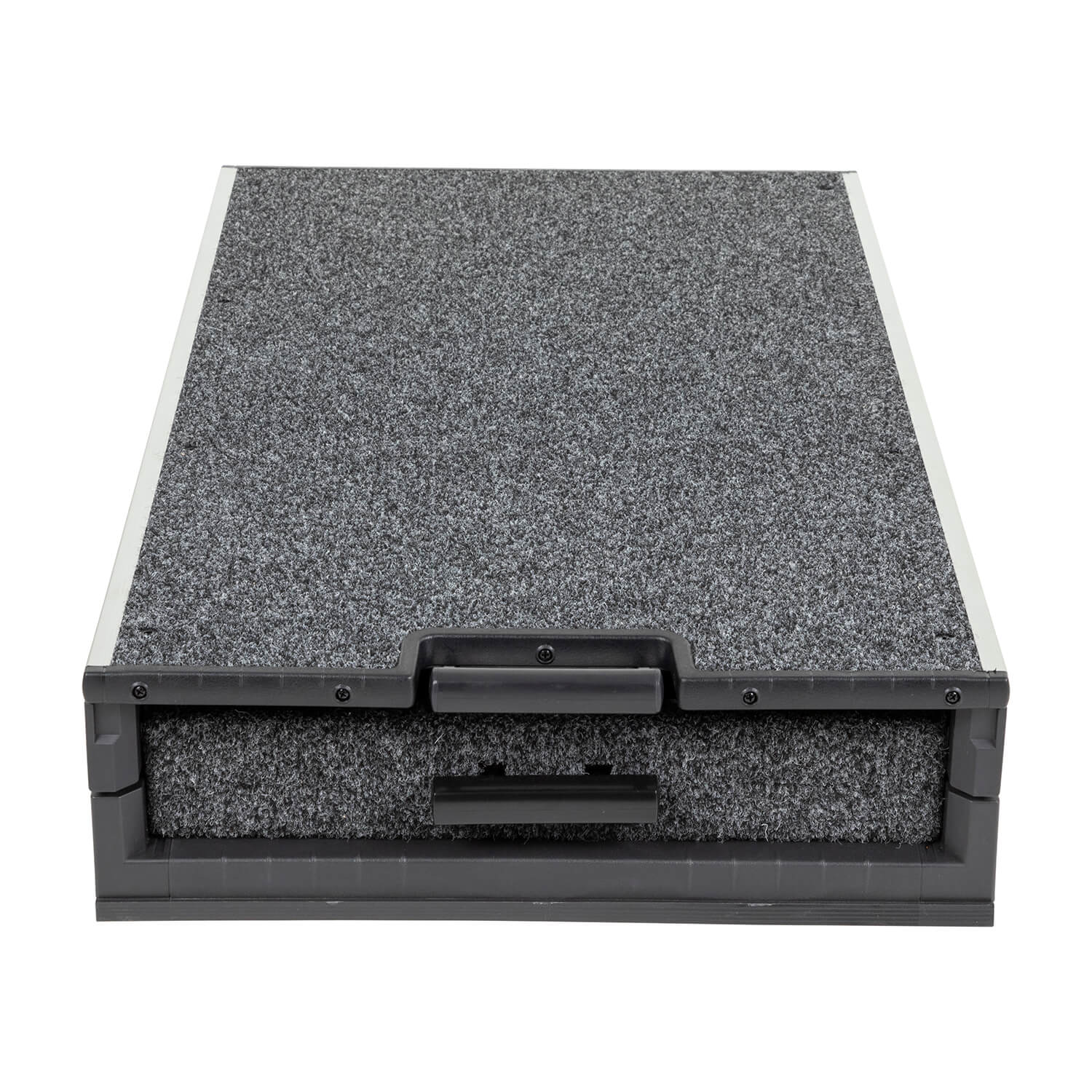

ARB - RF945 - Roller Floor Drawer

Roller Floor is a fantastic new product. The Roller Floor sits only 140 mm off the vehicle floor, enabling lower mounting and easier access to items such as fridges or tool boxes. The Roller maximizes storage space with an incorporated slide out tray. When not housing a refrigerator, the Roller Floor has a flat top thats far more convenient to sit other items on than a traditional steel fridge slide. Ever tried to sit your groceries on top of a traditional fridge slide?

• Engineered for both on and off-road driving with anti-rattle design
• Vehicle specific side floor kit with easy latches completes installation and provides additional storage areas within the cabin or tray
• Water resistant bonded marine plywood with steel reinforced guards for superior strength sourced from sustainable forests
• Folded stainless steel bearing runners for ultra-smooth drawer and slide operation
• Self-locking anti roll back system locks into place at full extension, this holds the drawer from rolling closed even on inclines
• Modular units allow greater flexibility if needs change in the future
• Class leading deep drawers with internal heights up to 9.8 inches for greater packing potential
• Key lockable, push-pull slam shut latches for ease of use and maximum security
• Long lasting, UV stable commercial carpet designed to complement modern vehicle interiors
• Cross folded floor ensures maximum support for items placed within each unit. Up to a Maximum of 330lbs per drawer, 600lbs combined
• Fully Sealed, Dust and water resistant bearings for superior longevity working in harsh environments
• Integrated fridge slides on roller floor models provides a true flat mounting surface

Attributes:

• Brand Name: ARB
• GTIN: 09332018013644
• Add-On: N/A
• Color: Gray
• External Dimensions: 37.2 in L x 19.9 in W x 5.5 in H

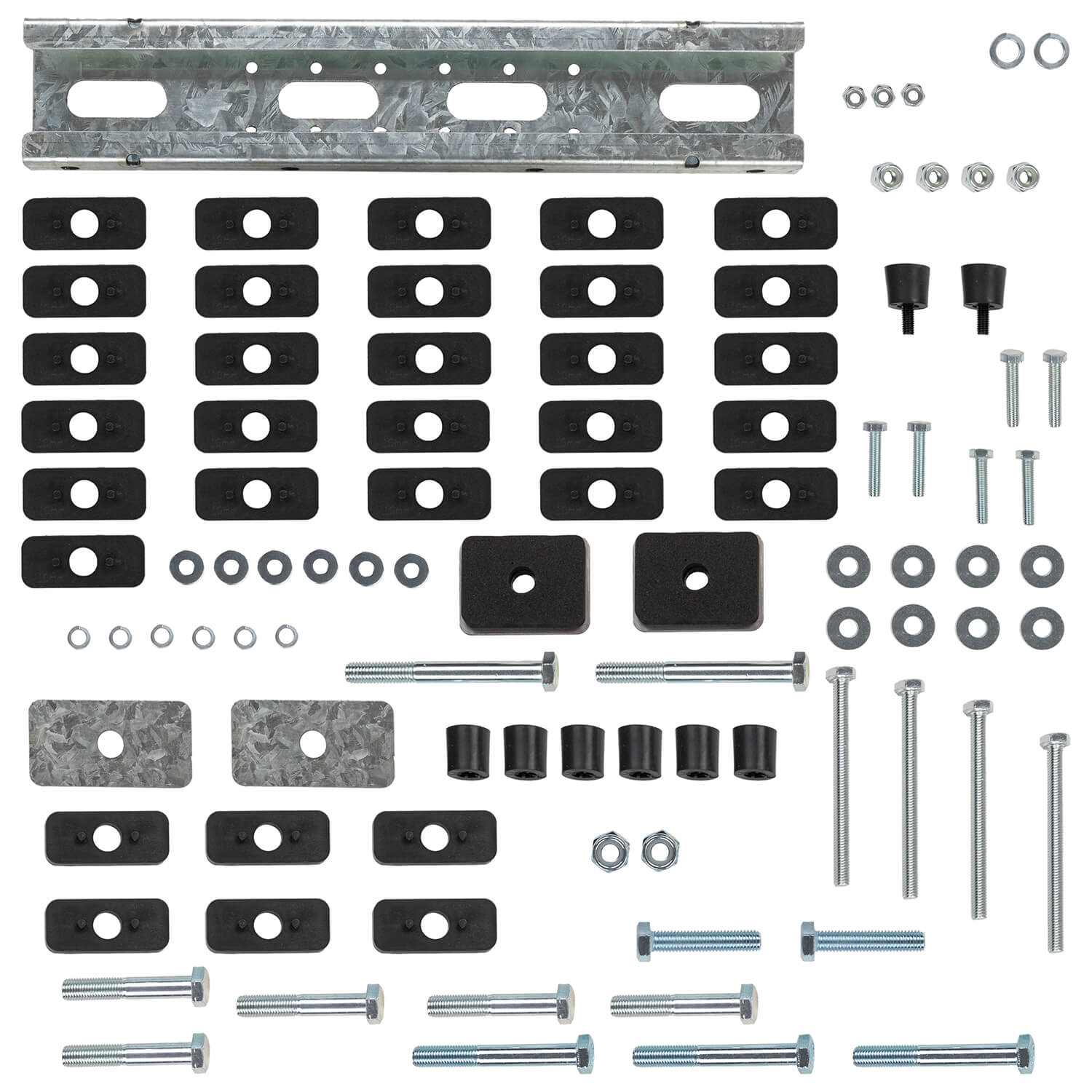

• Hardware Included: Y
• Internal Dimensions: 33.8 in L x 16.5 in W x 3.0 in H
• Load Rating: 165 lb per drawer, roller floor 220 lb closed, 165 lb extended
• Material: Steel
• Style: Roller Floor
• Weight: 55.1 lb

Extended Information:

• Country of Origin: China
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 48 x 40 x 20 inches
• Weight: 100 POUNDS
