AXON is the most durable, reliable, feature packed powersports winch anywhere. Designed, engineered, tested, and assembled in the USA, AXON’s no-compromise quality means it has what it takes to stand up to whatever you throw at it. AXON is a versatile workhorse that gives you a variety of control options. All models come with a dash switch that operates the winch while also providing winching feedback (AXON 35 comes with an adaptor so the switch can be mounted on handlebar). The HUB Wireless Receiver (sold separately for AXON 35) lets you operate the winch using your smartphone from over 100 ft away. Easy-to-read gauges show the winch’s motor temperature, load info, and the vehicle’s battery info. The new Plow Mode lets you seamlessly operate your plow—all from your smartphone. AXON 45 and 55 also include a corded remote socket and wiring harness (the corded remote is sold separately). Plow Mode provides superior control over a plow’s position with programmable upper and lower travel limits, preventing possible damage from raising or lowering the blade too much. The one-touch Auto Move option adjusts the plow to its upper and lower limits with one-touch operation, eliminating the need to operate multiple controls at once. Plow Mode requires a Hub Receiver and Smartphone to work (HUB Receiver sold separately for AXON 35 and 35-S). AXON’s unique 2-in-1 motor and contactor unit, aka, Motactor, saves space and provides supreme efficiency. Plus, it saves on install time, so you can put the winch to work faster. The IP68/IP69K-rated waterproof construction keeps the gunk out and the winch working in all conditions. Available in 3,500 lb., 4,500 lb., and 5,500 lb. capacities, there’s an AXON to suite a variety of ATVs and UTVs. With reliability, power, and versatility, AXON lets you GO PREPARED for work or play.

AXON 35-S includes 50-ft. of lightweight, easy-to-handle 3/16-in. Spydura synthetic rope, Epic hawse fairlead, and black hook
New clutch design based on legendary WARN 4WD hub lock know-how
Load-holding brake for great control
Smooth and reliable all-metal three-stage planetary gear train
Limited lifetime warranty (mechanical), 3 year warranty (electrical)
Designed, engineered, and assembled in the USA in the USA
Stout 3,500 lb. capacity for riders who push the limits - ideal for large ATVs
Plow mode allows for simplified plow controls and operation. Lets you set lifting limits and has one-touch control
Revolutionary Motactor™ combines motor and contactor for easy installation, best performance
Digital control offers never-before seen levels of reliability and user feedback, including load and temperature info
Durable all-metal construction and one-piece tie plate (vs. tie bars) for increased structural rigidity
IP68 waterproofing keeps water and the elements out
Rockerbar digital control switch with handlebar mount adaptor
Satin black powder-coated finish and stainless steel fasteners for corrosion resistance

Attributes:

Brand Name: Warn
GTIN: 00012748121701
14: 13.3
26: Electric
123: 12
289: Synthetic Rope
356: 4
684: 168:1
875: 50
1422: 4.6
1826: 4.87
1828: Drum
1829: Automatic
1830: 0.1875
1832: No
1833: 3-Stage Planetary
1834: Hawse
1835: 3500
1836: Yes
1838: 4.8
1839: Permanent Magnet
1840: 3
1841: Yes
3948: 12
Plow Mode: Yes
WARNING CA Proposition 65: Yes

Extended Information:

Country of Origin: United States
Emissions : Emissions Compliance Exempt

Packing Information:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 17.5000 x 13.0000 x 6.5000 inches
Weight: 20.0000 POUNDS

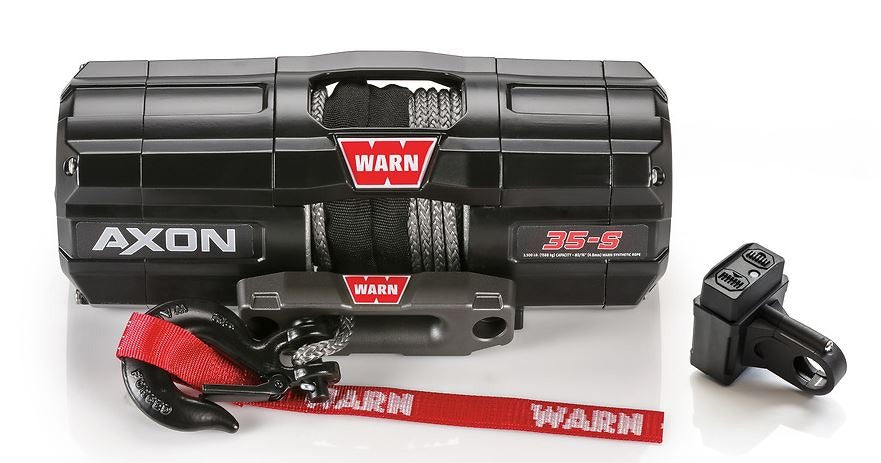

AXON 35-S Winch With Plow Mode
