This Super Duty lift kit is perfect for the enthusiast looking to run oversized tires and wants additional wheel travel for offroad use. With the large Super Duty wheelwell openings and this quality 2.5 in. lift kit, you can run 35 in. tall tires with ease. Fabtech's coil springs retain the factory load carrying capacity while providing increased suspension travel. The coil springs and associated bracketry allow for an additional in. of compression travel over stock without binding the suspension. This extra travel helps when offroading in rugged terrain. Sway bar drop brackets are included to reposition the front bar so that the link ends do not go over center at full droop and cause bind. The brake lines are relocated down on the frame with extension brackets to eliminate the possibility of overstretching the lines throughout the new travel range. Fabtech provides extension brackets rather than longer brake lines to keep the factory brake system sealed for fast and trouble-free installation. This suspension kit utilizes the factory bump stops without extensions. This allows for more travel with the Fabtech coil springs and components. To help keep the factory alignment specifications of the vehicle, Fabtech includes 2 degree adjustable alignment ball joint inserts. They help retain the factory caster specifications for optimum driveability. After a Super Duty is lifted the front axle is pushed to one side due to the length of the track bar. To address this issue Fabtech provides a heavy-duty adjustable track bar. The Fabtech track bar allows for on the vehicle adjustment to center the axle under the vehicle. This provides proper tracking of the front and rear axle for excellent highway manners. This Super Duty lift kit includes Fabtech Performance shocks. They are a twin tube shock that will provide a good highway ride with the ability to tackle offroad.

Everything You Will Need To Lift Your Vehicle
Utilizes The Stock Radius Arm
Designed For The Budget Minded Enthusiast

Attributes:

Brand Name: Fabtech
GTIN: 00674866110076
Lift/Drop Height: 2.5
WARNING CA Proposition 65: Yes
WARNING CA Proposition 65 Message: WARNING: Cancer and Reproductive Harm-www.P65Warnings.ca.gov

Extended Information:

Country of Origin: US
Emissions : CARB Eligible

Packing Information:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 24.0000 x 19.5200 x 12.0000 inches
Weight: 102.6000 POUNDS

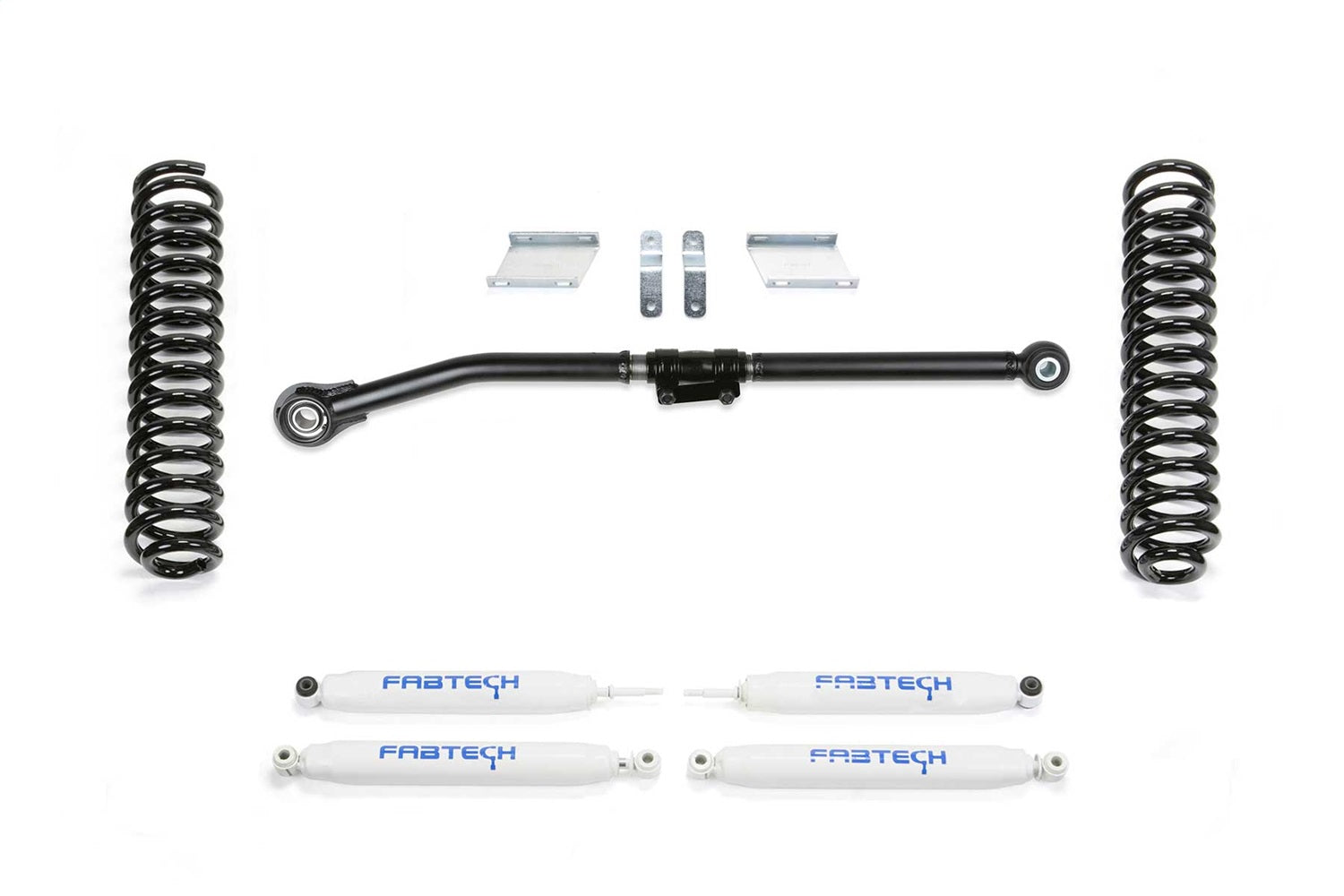

Basic Lift System W/Shocks
