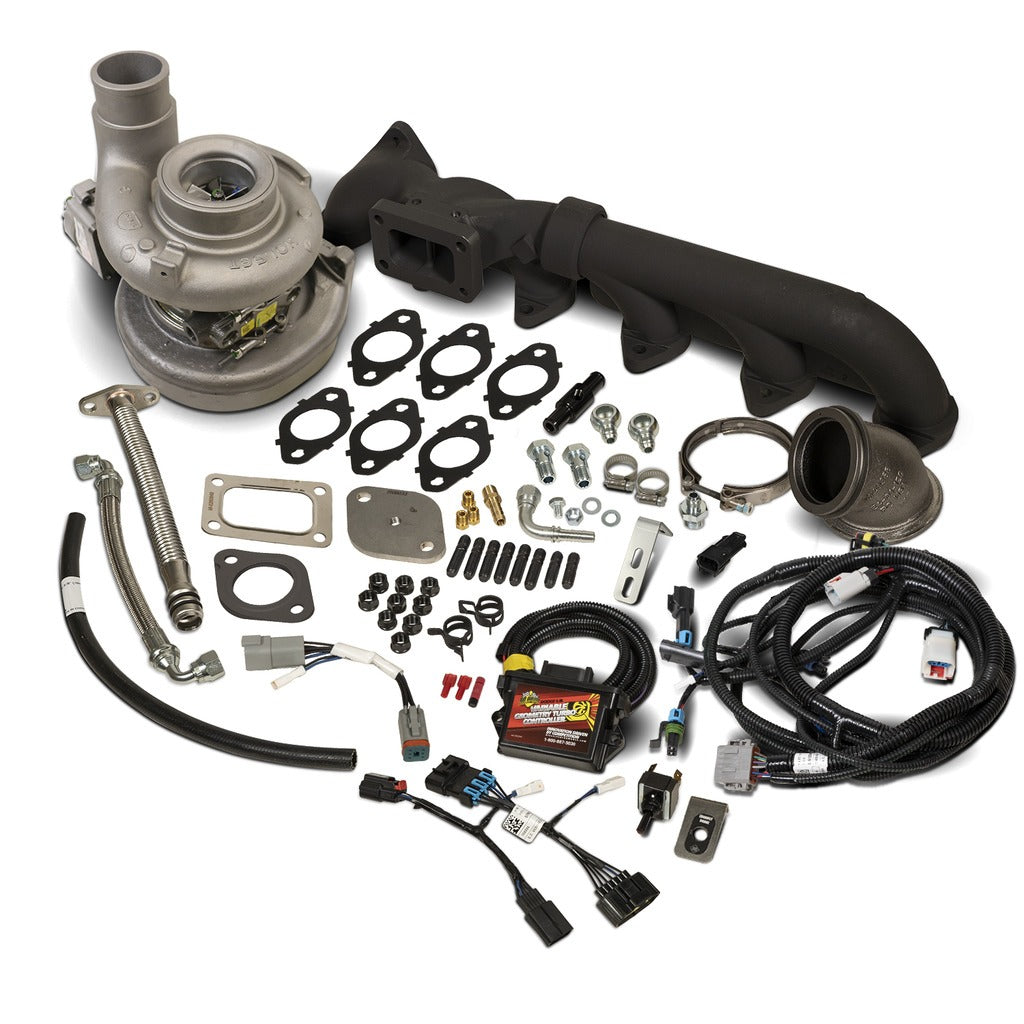

BD 5.9L Howler VGT Turbo Kit - Dodge 2003-2007

Considering a replacement turbo or exhaust brake? Get both with the BD Howler VGT kit for common rail Dodge 5.9L trucks. Enjoy the drivability a modern VGT turbo has offer. Strong exhaust brake rivals butterfly valve type brakes and generates up to 65psi EBP across a wide rpm band. Comes with full install kit including turbo, BD manifold, plug and play controller kit, and all necessary fittings for a straightforward installation.

• 450hp-575hp towing trucks we suggest the 1047139 kit stock HE351VE turbo paired with stock or 60hp injectors
• Thick-walled exhaust manifold included
• Faster spool up than conventional turbo
• VSR high speed balanced
• Plug & Play VGT controller kit with wiring harness
• Control module monitors sensor inputs and controls vanes for optimal spool up
• Turbocharger wheel speed control prevents overspeed
• Commanded boost based on throttle position to maximize cruising fuel economy
• Built in safety defaults the vanes open if erroneous sensor data received
• Kit includes all necessary hardware to install
• Factory looking fit and finish
• Does not need OBD port connection
• No core charge
• 575hp-675hp trucks we suggest the 1047140 kit with Screamer turbo paired with 90-120hp injectors and a R900 CP3 pump
• Can support up to 675HP at crank with additional performance mods
• Ballistic Billet 64.5mm 7+7 blade compressor wheel and Low MOI QST 70mm 12 blade turbine wheel
• The QST Turbine wheel as a 15% reduction in MOI (moment of inertia) which results in quicker turbo response
• QST turbine Blade thickness decreased by 25% allowing for higher turbine gas flow and increased efficiency
• Integrated exhaust brake control with included toggle switch

Attributes:

• Brand Name: BD Diesel
• GTIN: 00990011407977
• Box 1 Height: 11
• Box 1 Length: 34
• Box 1 Weight: 45
• Box 1 Width: 8.5
• Box 2 Height: 15
• Box 2 Length: 15
• Box 2 Weight: 45
• Box 2 Width: 15
• Engine: 5.9L Cummins 04.5-07
• Make: Dodge
• Suggested Product: 1045215

Extended Information:

• Country of Origin: United States
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 34 x 15 x 26 inches
• Weight: 90 POUNDS
