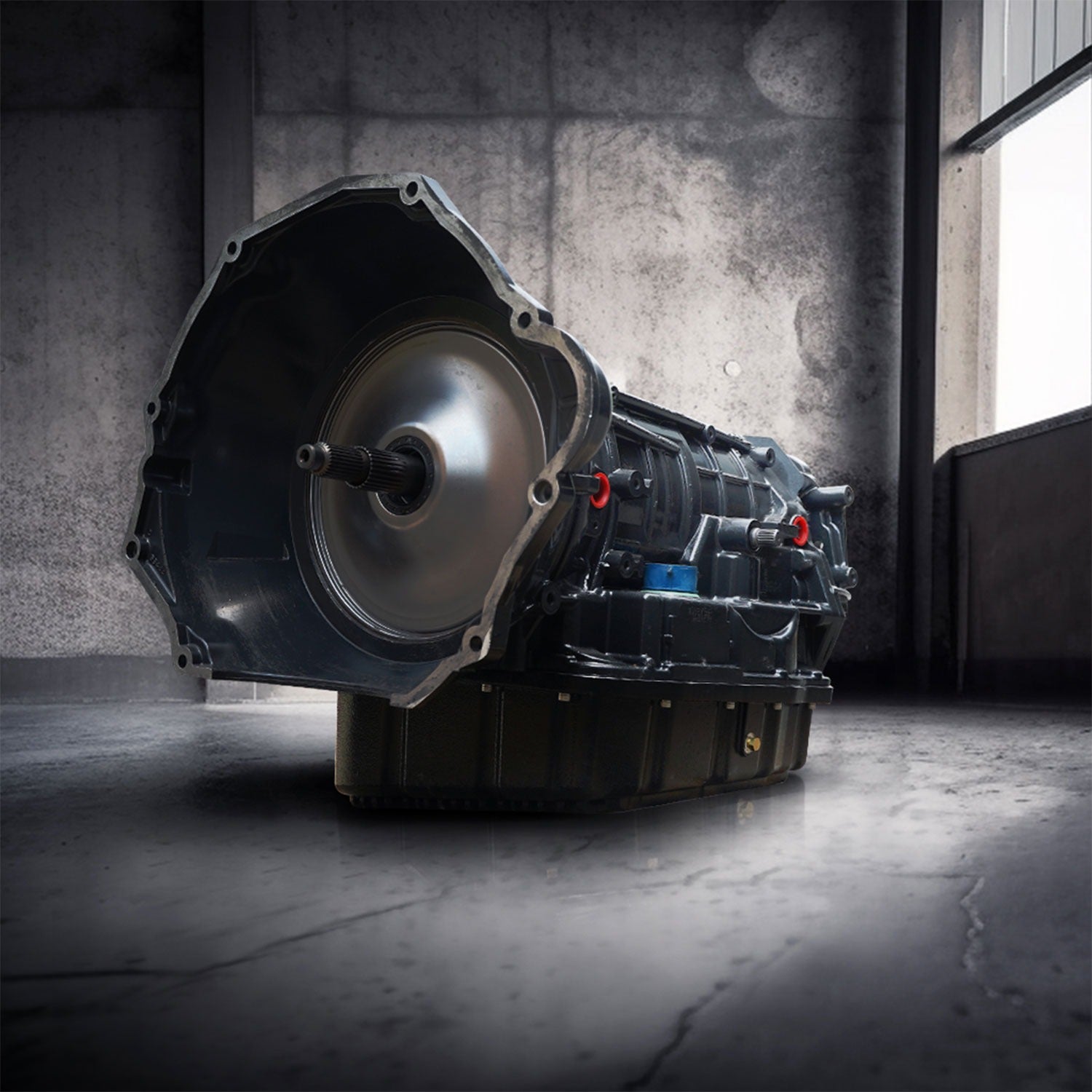

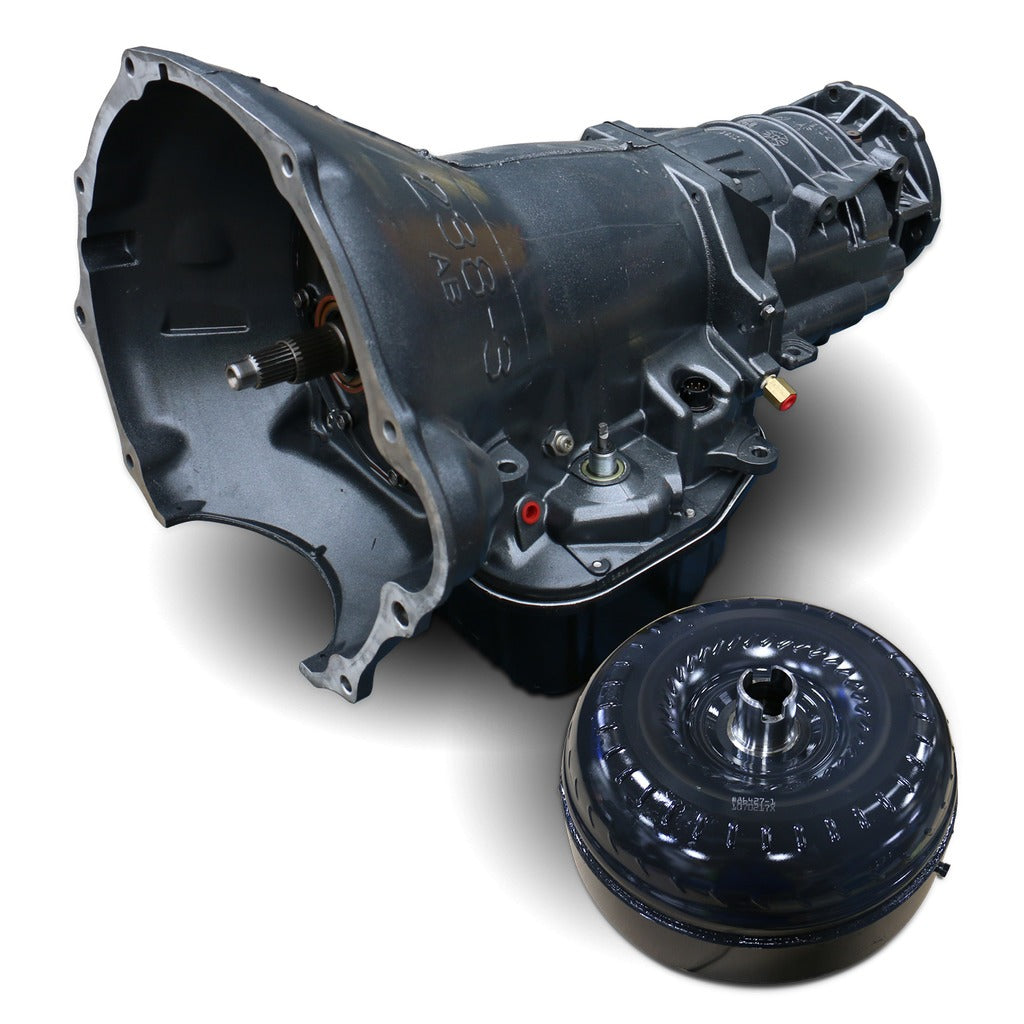

When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.
- TRANSMISSION:
- Cooler line case saver in every transmission
- Every transmission is tested on a dyno
- Upgraded Valve body
- Not warranted for Race or Sled Pull use
- TORQUE CONVERTOR:
- Triple Disc
- Enhanced Stall - Street/Towing applications
- HD springs absorb shock of engagement
- Stamp forged 1-piece cover
- Eliminates warpage from clutch heat
- Billet band strut
- Taller cover can be rebuilt more often
- Trapezoid teeth design
- Engineered tighter tolerances
- Increased line pressure to 190-200psi
- Self-centering trapezoid teeth design increases contact decreases wear and chatter
- Thrust bearings - not plastic thrust washers
- Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
- Cast stator designs maximizes torque
- New sprag components ensure long term durability
- Furnaced brazed turbine fins for improved fluid coupling efficiency
- Billet 300M input shaft
- Reduced overall weight by 12lbs compared to competitors
- Stock thrust bushings replaced with roller Torrington bearings
- Clutch Count: DIRECT 5
- Clutch Count: FORWARD 5
- Clutch Count: OD 6
- Clutch Count: OD DIRECT 10
- High temp Raybestos band
- BD rigid aluminum heavy duty transmission pan
- Pan adds 2qt extra oil capacity
- Pan heat-dissipating fins keep temperature down
- Magnetic drain plug
- Increase the durability of your drivetrain
- BD auxiliary full flow filter kit for extra protection
Attributes:
-
Brand Name: BD Diesel
-
GTIN: 00990011406673
-
Drivetrain: 4WD
-
Engine: 5.9L Cummins 94-98 12 Valve
-
Make: Dodge
-
Suggested Product: 1041210
Extended Information:
-
Country of Origin: CA
-
Emissions : CARB Eligible
-
Life Cycle Status: Available To Order
Packing Information:
-
Quantity of Each: 1
-
Package UOM: EA
-
Dimension: 23.5 x 44.5 x 27.3 inches
-
Weight: 329 POUNDS
