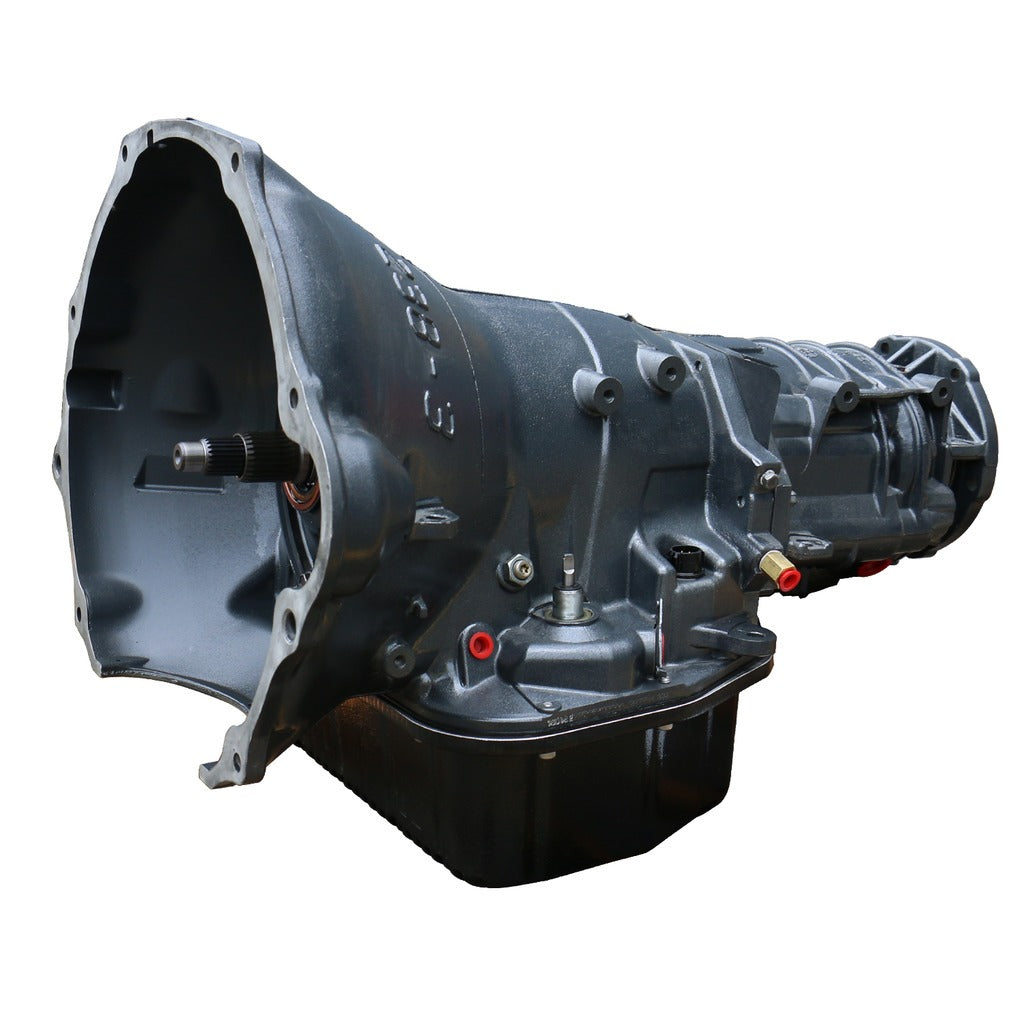

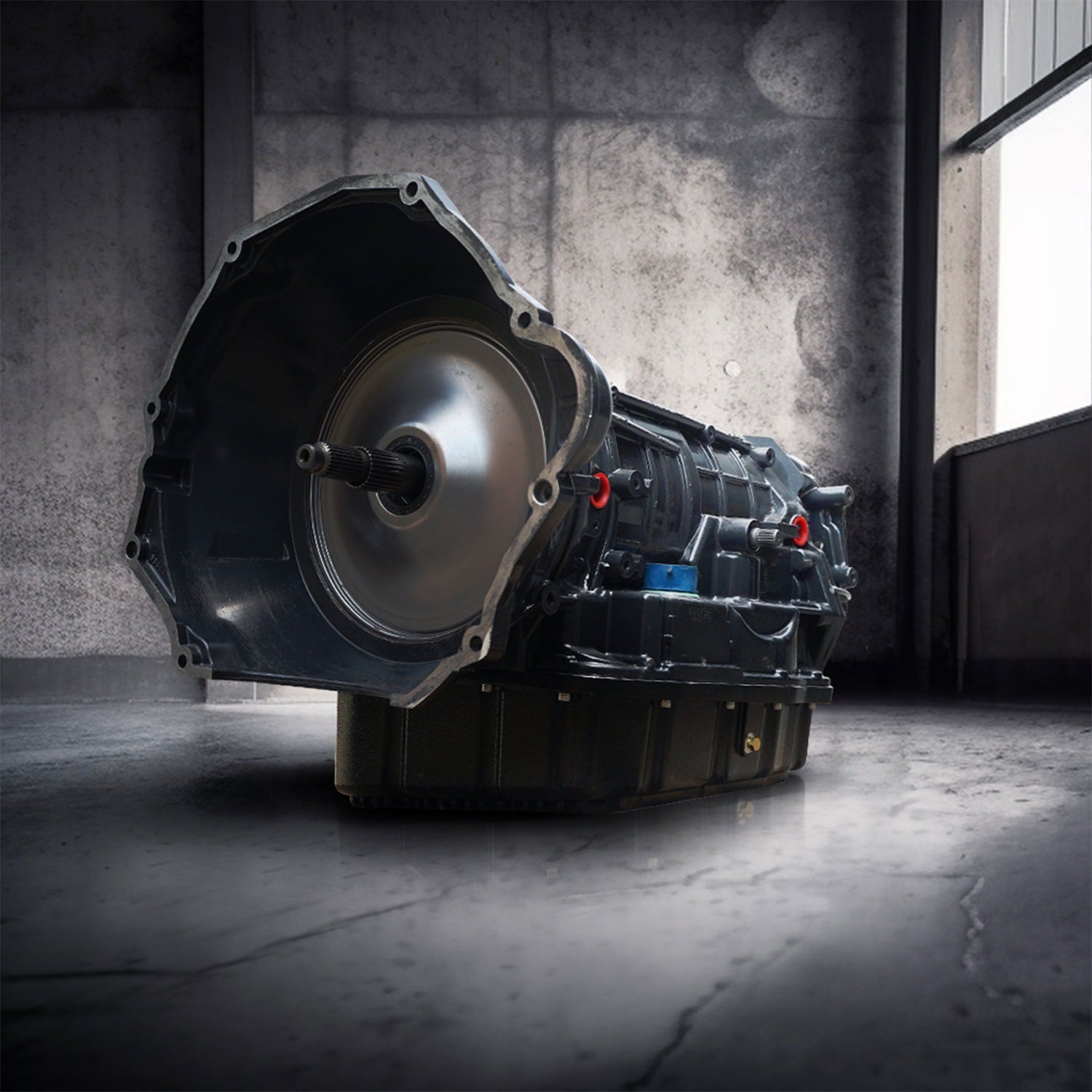

BD TorqueMaster Dodge 48RE Transmission 2003-2004 4wd

The stock transmission is designed to handle the output of the stock engine, but not much more. Increase the durability of your drivetrain with a BD transmission. All transmissions come with BD's heavy duty transmission pan and most packages come bundled with our auxiliary transmission filter kit for added protection! Comes with Billet Input Shaft designed to withstand rapid acceleration and high torque. The Perfect combination for those installing the ProForce 3 or Hi5 torque converter.

• Increase the durability of your drivetrain
• Pan adds 2qt extra oil capacity
• Not warranted for Race or Sled Pull use
• Billet band lever
• Every transmission is tested on a dyno
• Upgraded Valve body
• Increased line pressure to 190-200psi
• No shuttle shifting problems
• Drilled intermediate shaft for increased lubrication
• Modified manual valve for lube in all positions
• Billet band strut
• Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock
• Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
• Billet "Big" fine spline input shaft
• Clutch Count: OD 6
• Clutch Count: OD DIRECT 10
• Clutch Count: FORWARD 5
• Clutch Count: DIRECT 6
• High temp/energy Raybestos band
• Upgraded governor solenoid
• Stock thrust bushings replaced with roller Torrington bearings
• Cooler line case saver in every transmission
• BD auxiliary full flow filter kit for extra protection
• BD rigid aluminum heavy duty transmission pan
• Pan heat-dissipating fins keep temperature down
• Magnetic drain plug

Attributes:

• Brand Name: BD Diesel
• GTIN: 00990011402453
• Engine: 5.9L Cummins 03-04
• Make: Dodge
• Suggested Product: 1071217X

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.5 x 44.5 x 27.3 inches
• Weight: 250 POUNDS
