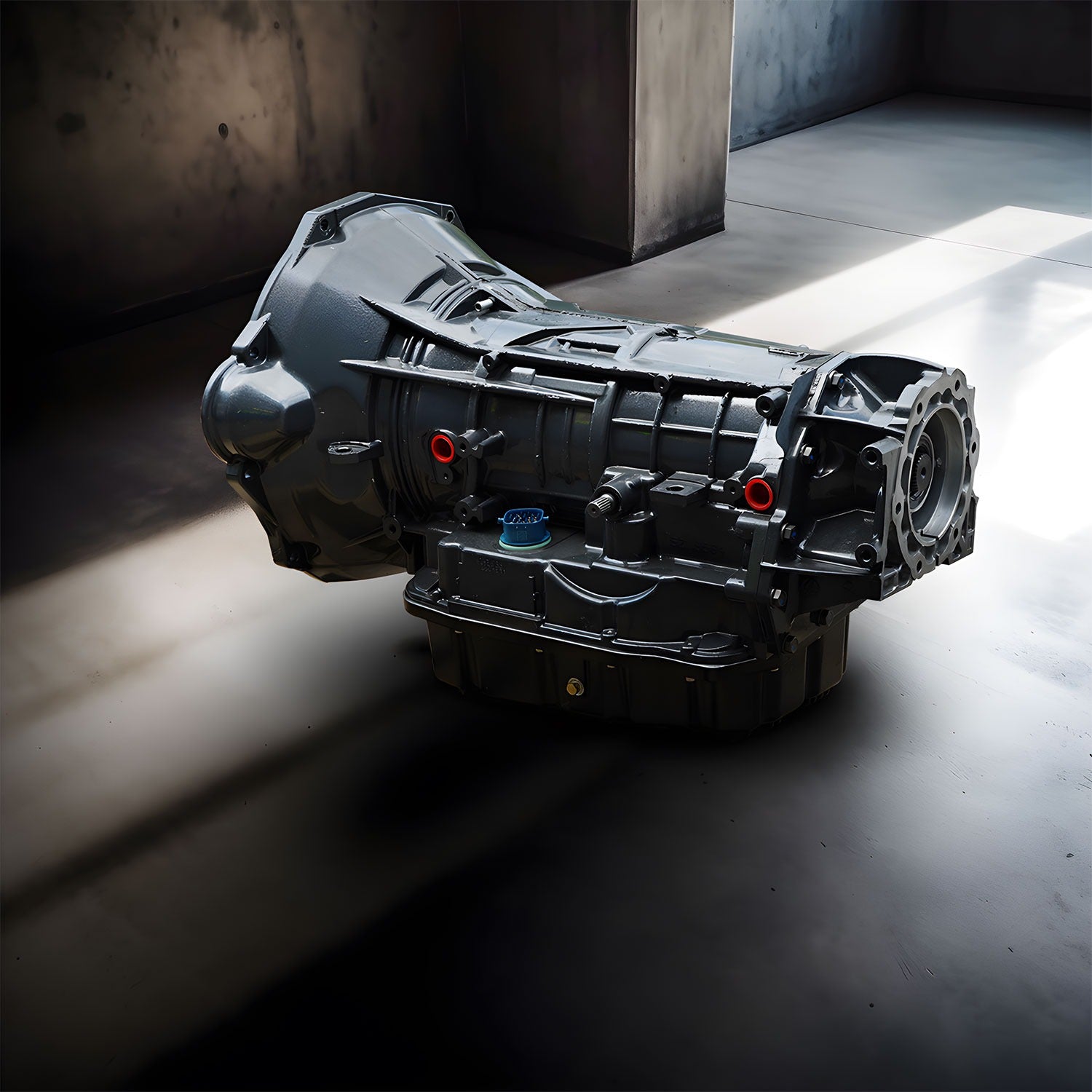

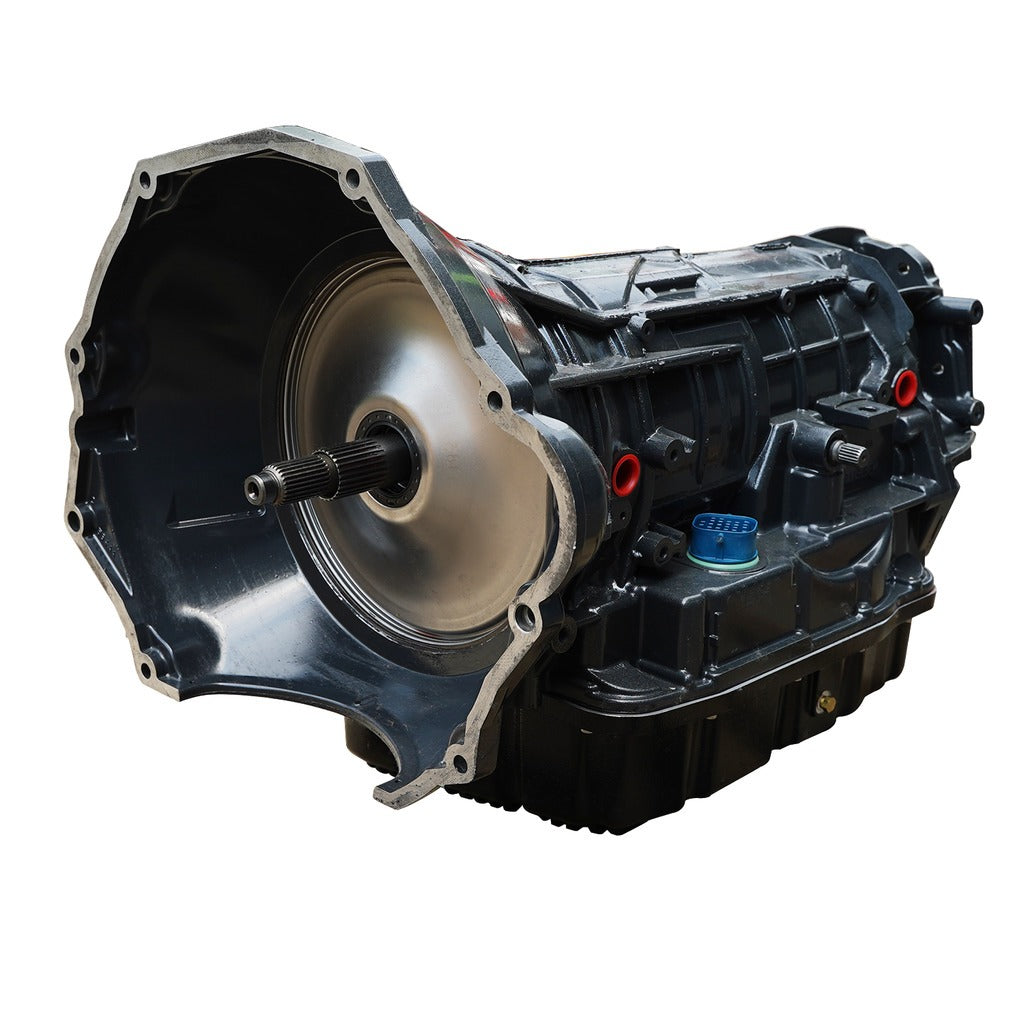

BD TorqueMaster Dodge 68RFE Transmission 2019-2022 4WD

BD's 68RFE is the industry leading transmission. BD has addressed the common failures associated with the stock 68RFE. Burnt overdrive clutches are a thing of the past, utilizing custom billet QT100 reaction plates, longer "Big Stack" spline OD shaft, and 16 frictional surfaces. Comes with Billet Input Shaft designed to withstand rapid acceleration and high torque.

• Hard anodized valve body and new solenoid pack installed in every unit
• Over Drive clutches 33% increase & 2C clutches 33% increase
• Custom Big Stack overdrive shaft
• BD reinforced accumulator plate
• BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
• Performance Transmission but with the added touch of a Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
• Special tuning required for 2019-up applications for increased line pressure. Line pressure controller not included.
• Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
• Heavy duty cam & roller design low reverse one way clutch
• New 4C billet spring retainer
• Steel girdle added to 2C piston to allow for more clutches and broader apply area
• BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum

Attributes:

• Brand Name: BD Diesel
• GTIN: 00990011409131
• Engine: 6.7L Cummins 19-up
• Make: Dodge
• Suggested Product: 1071220LX

Extended Information:

• Country of Origin: Canada
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.5 x 44.5 x 27.3 inches
• Weight: 240 POUNDS
