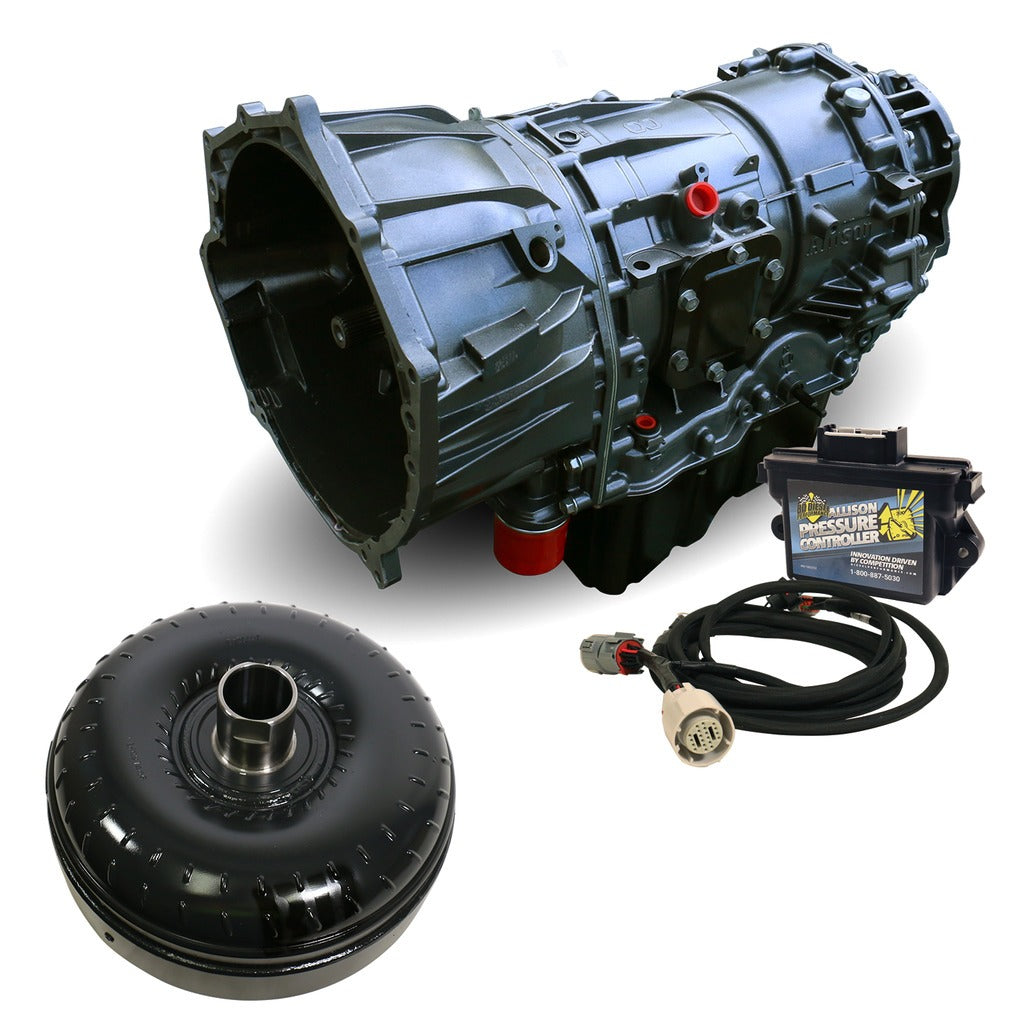

BD Torquemaster Chevy Allison Trans & Converter Package 2011-2016 LML 4wd

When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

• TRANSMISSION:
• Thrust bearings - not plastic thrust washers
• Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
• Clutch Count: C3 7 clutches (75% increase over stock)
• Cast stator designs maximizes torque
• New sprag components ensure long term durability
• Furnaced brazed turbine fins for improved fluid coupling efficiency
• BD Aluminum HD deep transmission pan, increases oil capacity by 3.5qt
• Reduced overall weight by 12lbs compared to competitors
• Utilizes a new double cage stator sprag for increased strength, reduces common stator failures with the OE design.
• Comes with BD Allison Pressure Box delivering up to 275PSI of line pressure
• HD springs absorb shock of engagement
• High energy GPZ(TM) frictions
• Increase in steel mass for better heat dissipation
• Increased clutch count
• Clutch Count: C4 7 clutches (17% increase over stock)
• Clutch Count: C1 8 clutches (14% increase over stock)
• Clutch Count: C2 7 clutches (17% increase over stock)
• Clutch Count: C5 7 clutches (17% increase over stock)
• Each transmission is dyno tested
• Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
• TORQUE CONVERTOR:
• Stamp forged 1-piece cover
• Triple Disc
• Enhanced Stall - Street/Towing applications
• Increase the durability of your drivetrain
• Eliminates warpage from clutch heat
• Taller cover can be rebuilt more often
• Trapezoid teeth design
• Engineered tighter tolerances
• Self-centering trapezoid teeth design increases contact decreases wear and chatter

Attributes:

• Brand Name: BD Diesel
• GTIN: 00990011407359
• Drivetrain: 4WD
• Engine: Duramax 6.6L 11-16 LML-LGH
• Make: Chevy/GM
• Suggested Product: 1041260

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.5 x 44.5 x 27.3 inches
• Weight: 415 POUNDS
