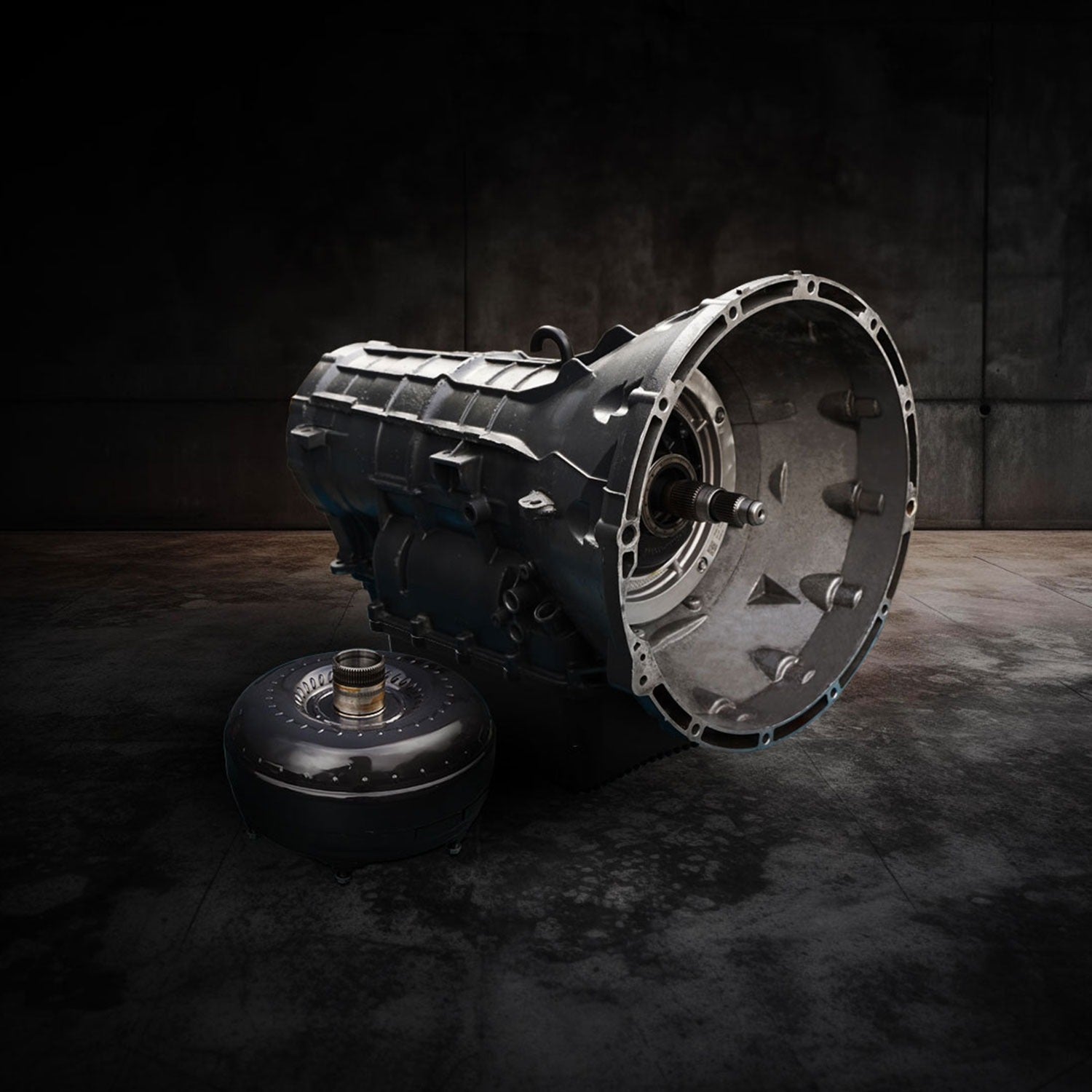

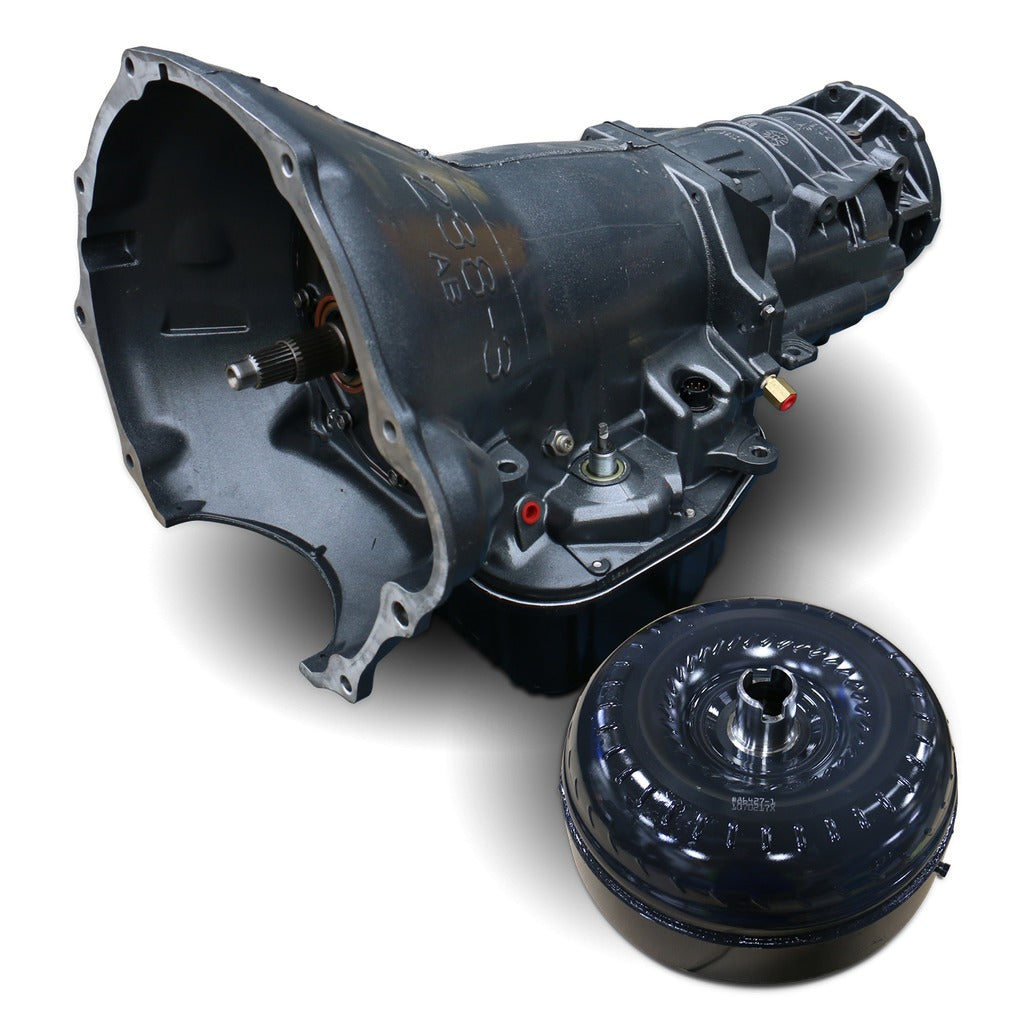

BD TowMaster Dodge 47RE Trans & Conv Package 1996-97 2wd W/Speed Sensor & Head

When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

• TRANSMISSION:
• Every transmission is tested on a dyno
• Not warranted for Race or Sled Pull use
• Clutch Count: FORWARD 5
• TORQUE CONVERTOR:
• Enhanced Stall - Street/Towing applications
• Torque multiplying cast aluminum stators
• Upgraded governor solenoid - Twice the burst pressure than stock
• Lower rpm response than the stock converter
• More efficient operation
• Less heat and better fuel economy
• BD rigid aluminum heavy duty transmission pan
• Stamp-forged steel front cover
• Furnace-brazed fins
• Up to triple the amount of lock-up clutch material
• Clutch Count: OD 6
• Upgraded governor pressure transducer (47RE/48RE)
• Increased line pressure to 190-200psi
• No shuttle shifting problems
• Modified manual valve for lube in all positions
• Stock thrust bushings replaced with roller Torrington bearings
• Clutch Count: DIRECT 6
• Pan adds 2qt extra oil capacity
• Clutch Count: OD DIRECT 10
• High temp/energy Raybestos band
• Upgraded 48RE sunshell
• Billet band lever
• Billet barrel strut
• Drilled intermediate shaft for increased lubrication
• Upgraded Valve body
• Pan heat-dissipating fins keep temperature down
• Magnetic drain plug
• Increase the durability of your drivetrain
• BD auxiliary full flow filter kit for extra protection
• Cooler line case saver in every transmission

Attributes:

• Brand Name: BD Diesel
• GTIN: 00990011406703
• Drivetrain: 2WD
• Engine: 5.9L Cummins 94-98 12 Valve
• Make: Dodge
• Suggested Product: 1041210

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.5 x 44.5 x 27.3 inches
• Weight: 339 POUNDS
