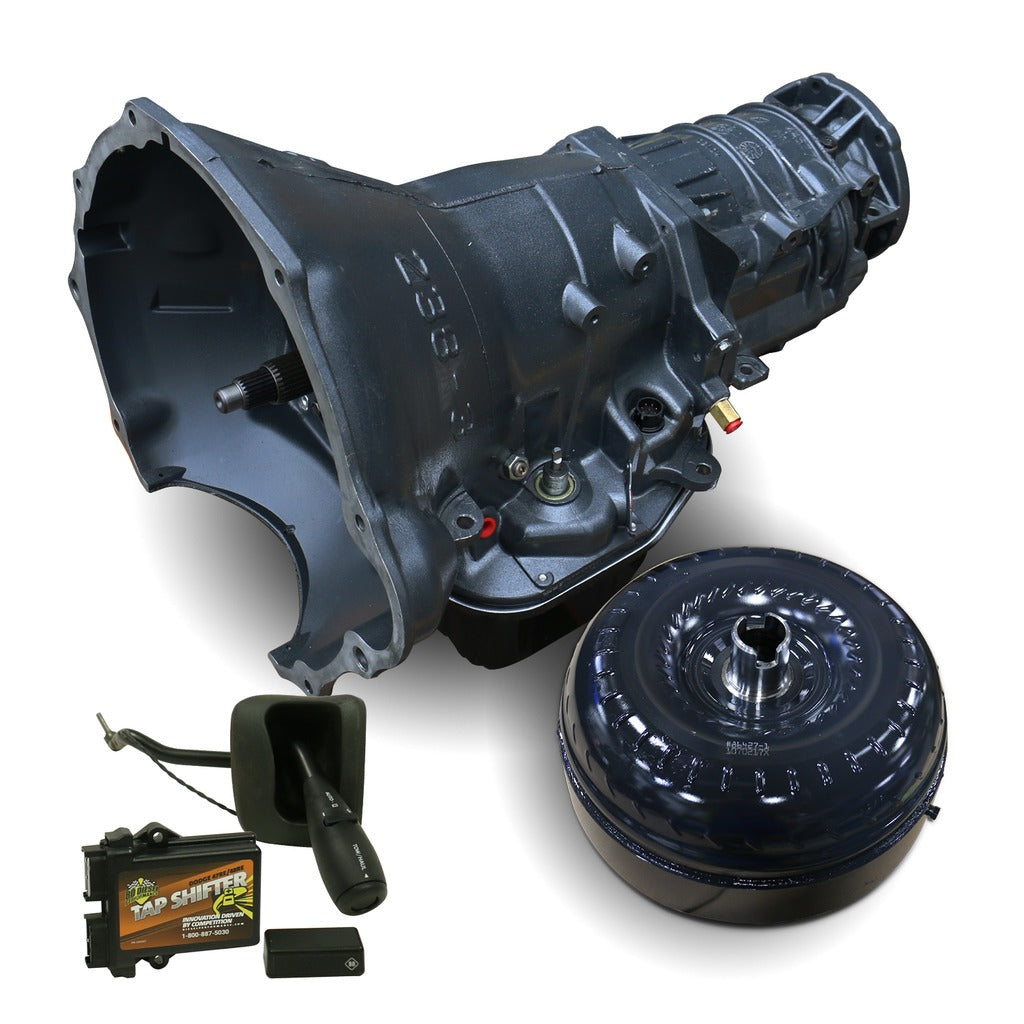

BD TowMaster Dodge 48RE Trans & Converter Package 2003-2004 4WD C/w TapShifter

When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

• TRANSMISSION:
• Pan adds 2qt extra oil capacity
• Pan heat-dissipating fins keep temperature down
• Upgraded Valve body
• Magnetic drain plug
• Increase the durability of your drivetrain
• BD auxiliary full flow filter kit for extra protection
• Cooler line case saver in every transmission
• Every transmission is tested on a dyno
• Not warranted for Race or Sled Pull use
• TORQUE CONVERTOR:
• Clutch Count: FORWARD 5
• Enhanced Stall - Street/Towing applications
• Torque multiplying cast aluminum stators
• Lower rpm response than the stock converter
• Upgraded governor solenoid
• More efficient operation
• Less heat and better fuel economy
• Stamp-forged steel front cover
• Furnace-brazed fins
• Up to triple the amount of lock-up clutch material
• Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock
• Clutch Count: OD 6
• Increased line pressure to 190-200psi
• No shuttle shifting problems
• Modified manual valve for lube in all positions
• Stock thrust bushings replaced with roller Torrington bearings
• Clutch Count: DIRECT 6
• Clutch Count: OD DIRECT 10
• High temp/energy Raybestos band
• Billet band lever
• Billet band strut
• Drilled intermediate shaft for increased lubrication
• BD rigid aluminum heavy duty transmission pan

Attributes:

• Brand Name: BD Diesel
• GTIN: 00990011406864
• Drivetrain: 4WD
• Engine: 5.9L Cummins 03-04
• Make: Dodge
• Suggested Product: 1041210

Extended Information:

• Country of Origin: Canada
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.5 x 44.5 x 27.3 inches
• Weight: 329 POUNDS
