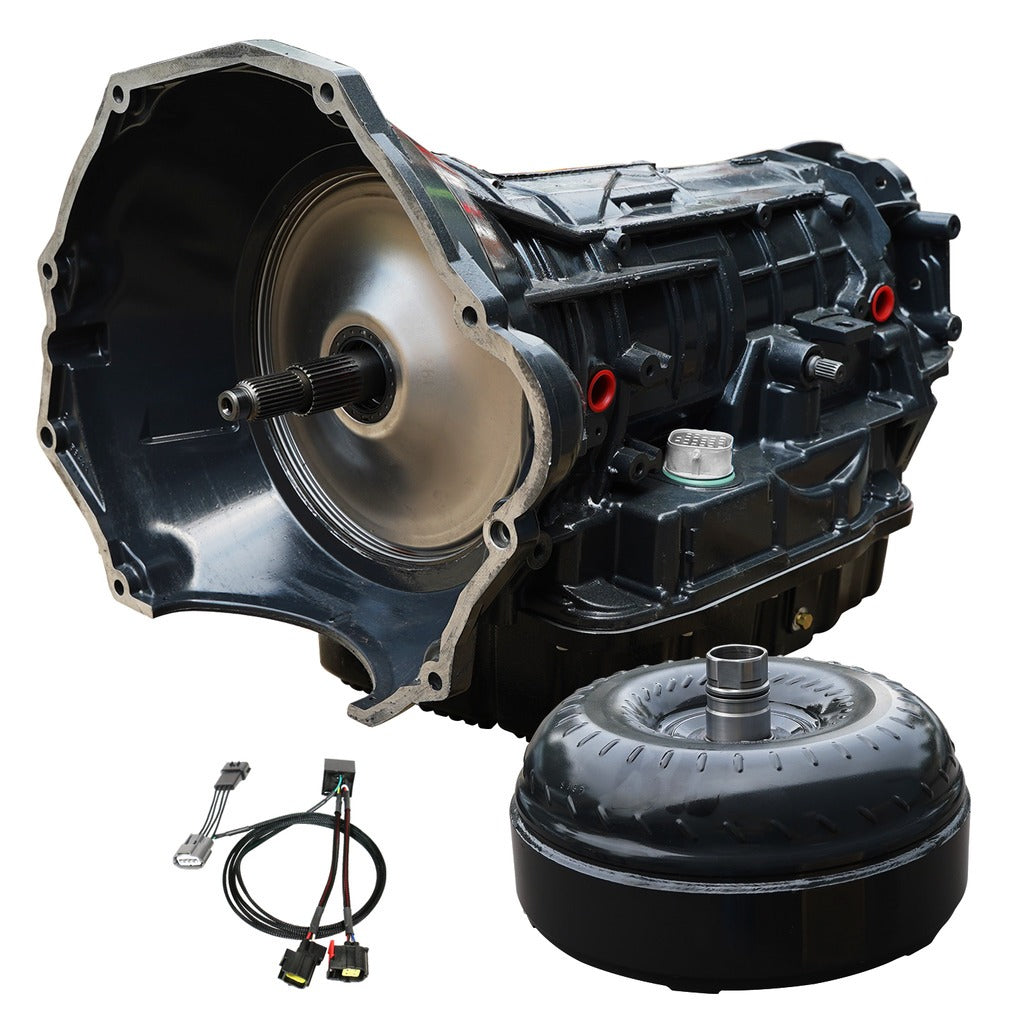

Continue shoppingBD TowMaster Dodge 68RFE Trans & Converter Package 2007.5-2018 4WD
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$6,726.00
-0%
Regular price
$6,726.00
Regular price
$6,726.00
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

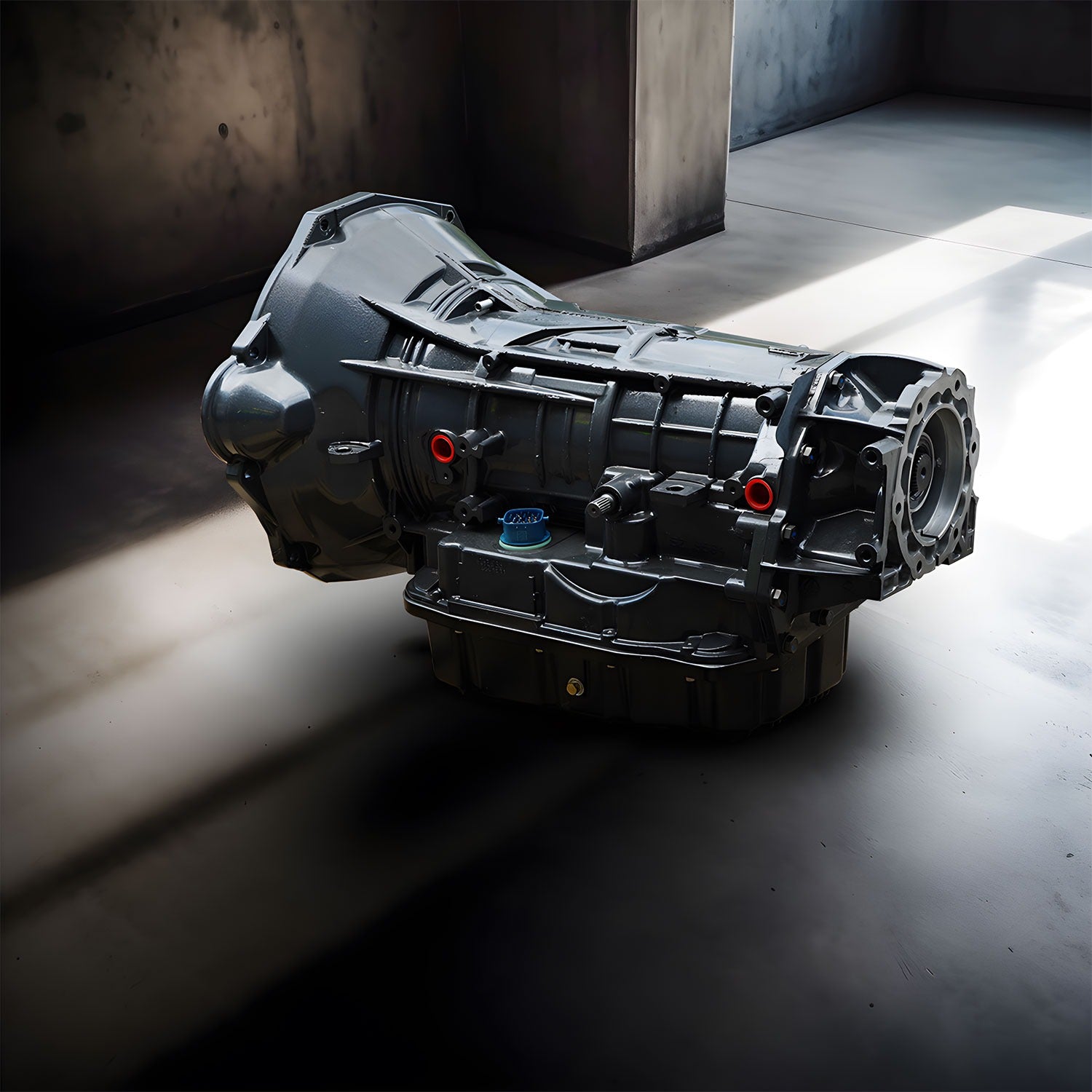

- TRANSMISSION:
- Great for street and towing applications
- Lower rpm response than the stock converter
- Hard anodized valve body and new solenoid pack installed in every unit
- Furnaced brazed turbine fins for improved fluid coupling efficiency
- Damper springs replaced
- 11.625 inch dual-clutch
- Billet forged front cover with thicker walls and stronger mounting pads
- Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
- Heavy duty cam & roller design low reverse one way clutch
- New 4C billet spring retainer
- BD reinforced accumulator plate
- Steel girdle added to 2C piston to allow for more clutches and broader apply area
- BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
- Over Drive clutches 33% increase & 2C clutches 33% increase
- Custom Big Stack overdrive shaft
- TCC limit valve machined and sleeved to address high wear area with in pump
- BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
- BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required
- PROFORCE CONVERTER:
- Good for 550 flywheel HP
- Ideal replacement for stock torque converter
- High performance Enhanced stall stator
Attributes:
- Brand Name: BD Diesel
- GTIN: 00990011407502
- Drivetrain: 4WD
- Engine: 6.7L Cummins 13-18
- Make: Dodge
- Suggested Product: 1041221
Extended Information:
- Country of Origin: Canada
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 23.5 x 44.5 x 27.3 inches
- Weight: 315 POUNDS
