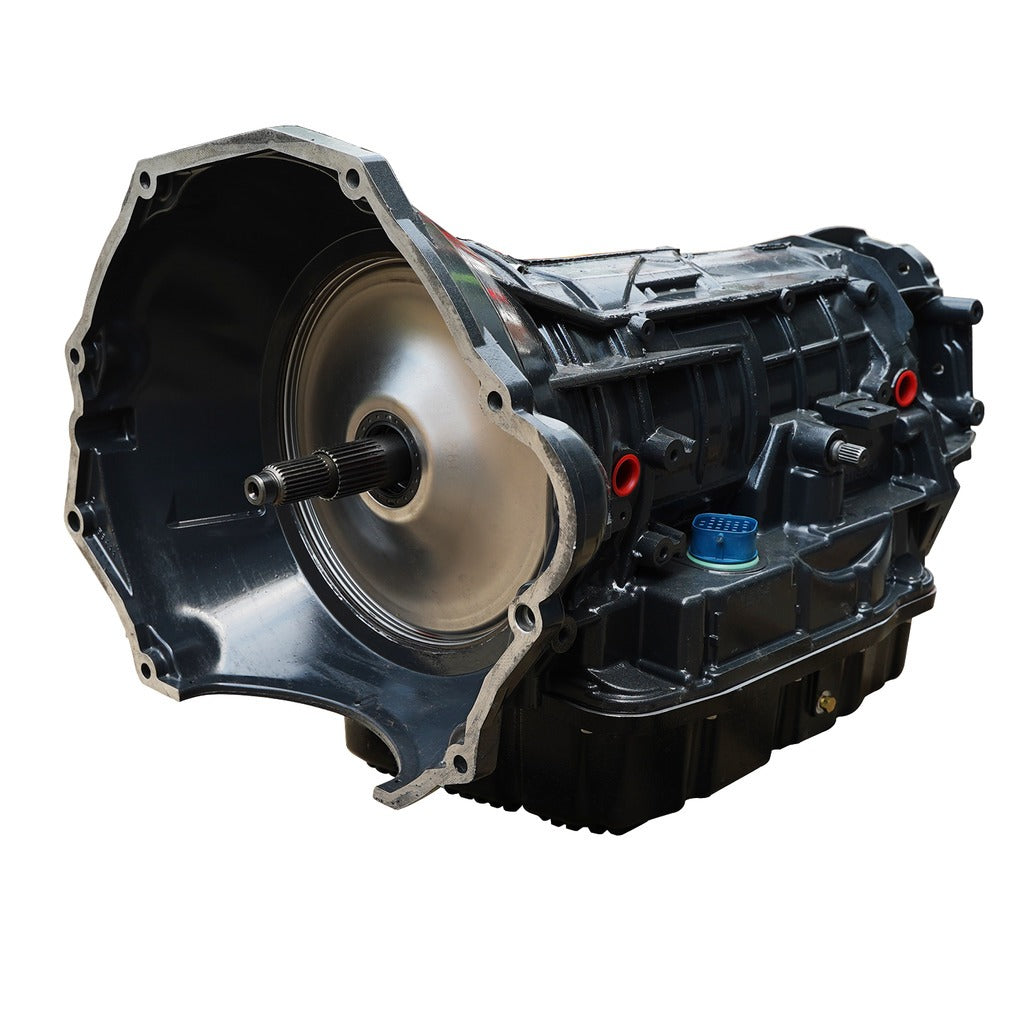

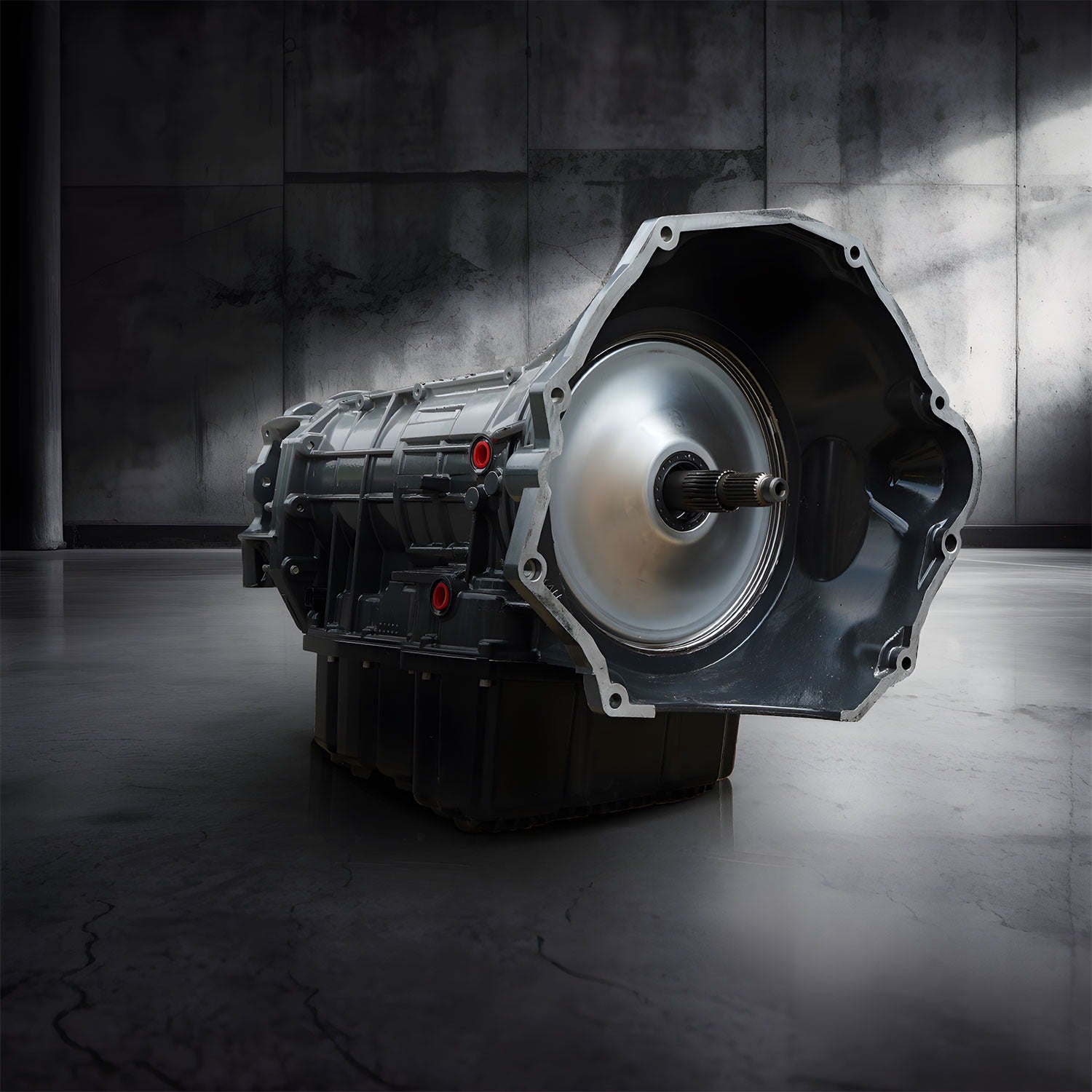

BD TowMaster Dodge 68RFE Transmission 2019-2022 4WD

BD's 68RFE is the industry leading transmission. BD has addressed the common failures associated with the stock 68RFE. Burnt overdrive clutches are a thing of the past, utilizing custom billet QT100 reaction plates, longer "Big Stack" spline OD shaft, and 16 frictional surfaces.

• Hard anodized valve body and new solenoid pack installed in every unit
• Custom Big Stack overdrive shaft
• BD reinforced accumulator plate
• BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
• Special tuning required for 2019-up applications for increased line pressure. Line pressure controller not included.
• Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
• Heavy duty cam & roller design low reverse one way clutch
• New 4C billet spring retainer
• Steel girdle added to 2C piston to allow for more clutches and broader apply area
• BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
• Over Drive clutches 33% increase & 2C clutches 33% increase

Attributes:

• Brand Name: BD Diesel
• GTIN: 00990011409148
• Engine: 6.7L Cummins 19-up
• Make: Dodge
• Suggested Product: 1071220X

Extended Information:

• Country of Origin: Canada
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.5 x 44.5 x 27.3 inches
• Weight: 240 POUNDS
