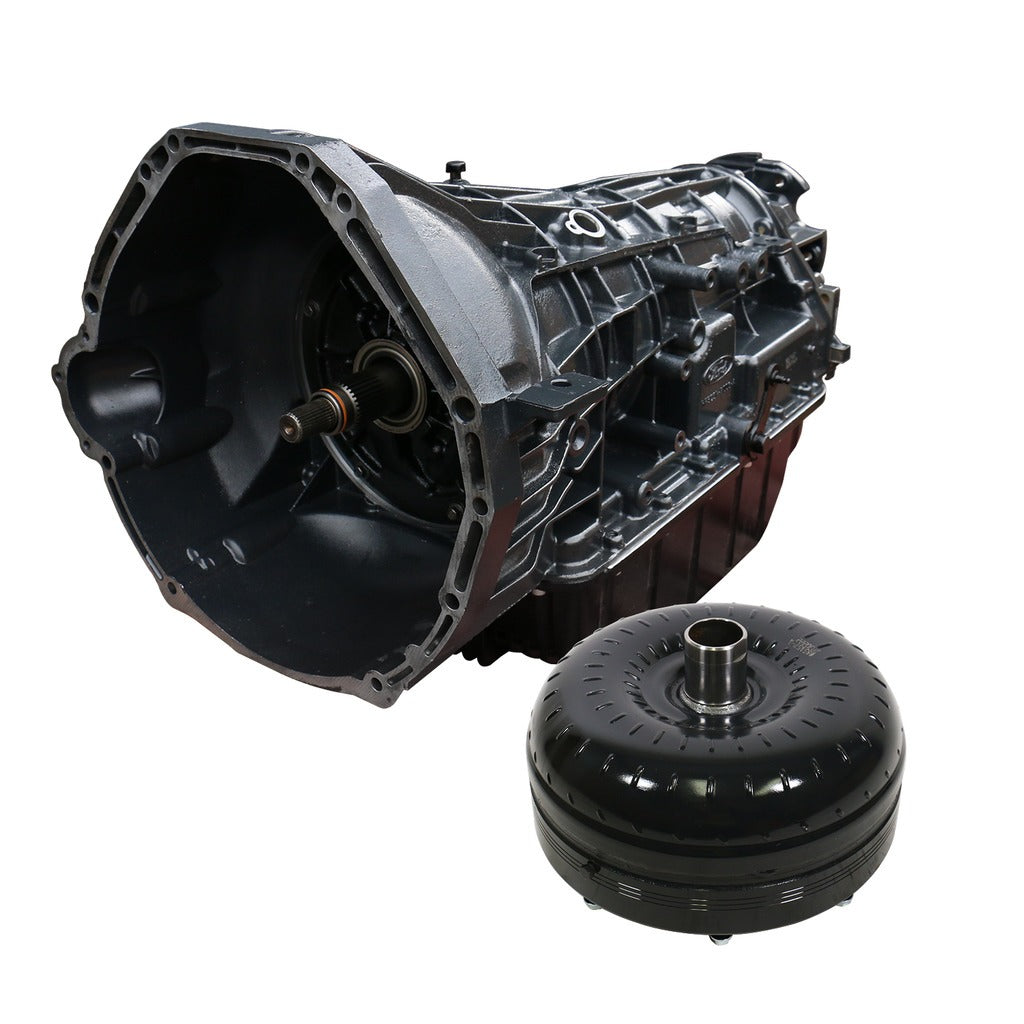

BD TowMaster Ford 5R110 Trans & Converter Pkg 2008-2010 6.4L Power Stroke 4WD

When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

• Modified stator enhances torque multiplying effect
• High Yield Strength forged machined piston
• HD Damper assembly absorbs close to twice the stock capacity shock load
• BD aluminum HD deep pan, increases oil capacity by 6qt
• Upgraded sump filter
• Replace plastic pressure plugs in valve body with aluminum
• Heavy duty snap ring and blow-off valve to prevent runaway pressure damaging case
• Reworked front pump
• Clutch Count: COAST CLUTCH 3
• Clutch Count: FORWARD 4
• TRANSMISSION:
• Lower rpm response than the stock converter
• Clutch Count: LOW REVERSE 6
• Clutch Count: INTERMEDIATE 5 (67% increase over stock)
• Clutch Count: DIRECT 6 (20% increase over stock)
• Clutch Count: OVERDRIVE 5 (67% increase over stock)
• Each transmission is dyno tested
• TORQUE CONVERTOR:
• Enhanced Stall - Street/Towing applications
• Three high performance clutch surfaces
• Increase the durability of your drivetrain
• More efficient operation
• Less heat and better fuel economy
• Stamp-forged steel front cover
• Furnace-brazed pump and turbine fins
• Improvements made to increase cooling and lubrication of the clutch plates

Attributes:

• Brand Name: BD Diesel
• GTIN: 00990011407052
• Drivetrain: 4WD/2WD Flange
• Engine: 6.4L Powerstroke 08-10
• Make: Ford
• Suggested Product: 1041240

Extended Information:

• Country of Origin: Canada
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.5 x 44.5 x 27.3 inches
• Weight: 335 POUNDS
