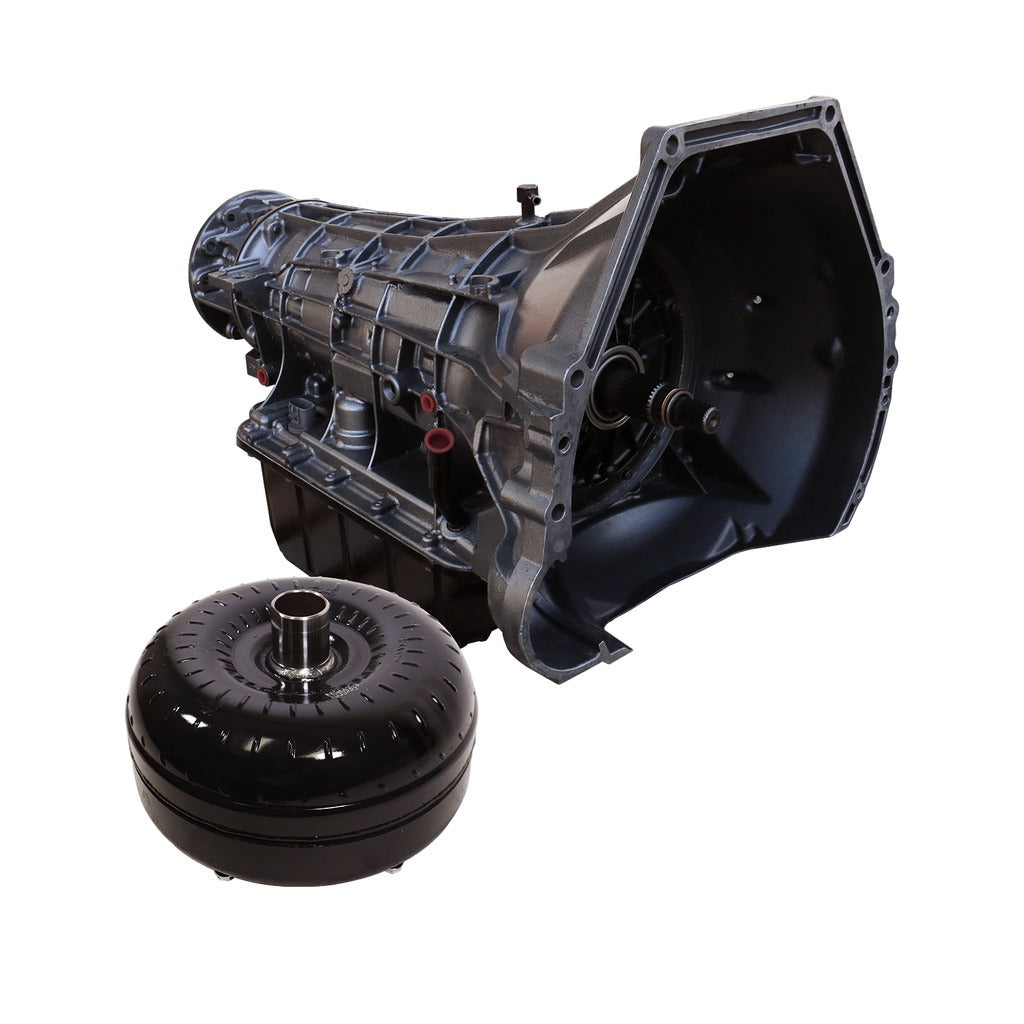

Continue shoppingBD TowMaster Ford E4OD Trans & Converter Package 1995-1997 4WD
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$5,196.00
-0%
Regular price
$5,196.00
Regular price
$5,196.00
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.
- TRANSMISSION:
- Clutch Count: COAST CLUTCH 2
- Clutch Count: FORWARD 5
- Machined center support
- Clutch Count: DIRECT 5
- Clutch Count: LOW REVERSE 7
- Clutch Count: INTERMEDIATE 4
- Clutch Count: OVERDRIVE 4
- Pan adds 6qt extra oil capacity
- Fully rollerized geartrain
- Tighter clutch packs that provide a quicker shift
- Re-programmed accumulator body
- 30%-40% more clutch material with additional steels
- Improved internal lubrication by adding high power boost valves
- Reworked front pump
- Machined intermediate piston
- Improved bearing designs
- Upgrade supports
- Upgraded sprags
- Sure-loc snap rings
- Solenoids hard wiring providing high temperature resistance
- Increase the durability of your drivetrain
- Full shift kit with line mod valve to increase pressures
- Revised oil circuits
- Handles up to 300% more power and torque than the stock transmission
- Extra clutches and stronger internals
- BD rigid aluminum heavy duty transmission pan
- Machined low/reverse pressure plate
- Pan reduces case flex
- Pan reduces internal oil leakage
- Pan heat-dissipating fins keep temperature down
- Pan magnetic drain plug
- Not warranted for Race or Sled Pull use
- Accumulator body enhanced oil flow
- Each transmission is dyno tested
- TORQUE CONVERTOR:
- Enhanced Stall - Street/Towing applications
- Torque multiplying cast aluminum stators
- Lower rpm response than the stock converter
- Machined rear ring gear hub
- More efficient operation
- Less heat and better fuel economy
- Stamp-forged steel front cover
- Furnace-brazed fins
- Increased cooler pressure
- Up to triple the amount of lock-up clutch material
- Added lube circuits to OD planet
- Added lube and support to output and intermediate shafts
- Replaced all aluminum planetaries with steel
- Drilled and tapped direct and intermediate feeds to prevent leaks at case
- Increased pressure to converter
- Creates positive clutch application
- Created lube circuit for towing in overdrive
- 1990-2003 include auxiliary frame mounted full flow filter kit
Attributes:
- Brand Name: BD Diesel
- GTIN: 00990011406970
- Drivetrain: 4WD
- Engine: 7.3L Powerstroke 94-97
- Make: Ford
Extended Information:
- Country of Origin: CA
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 23.5 x 44.5 x 27.3 inches
- Weight: 335 POUNDS
