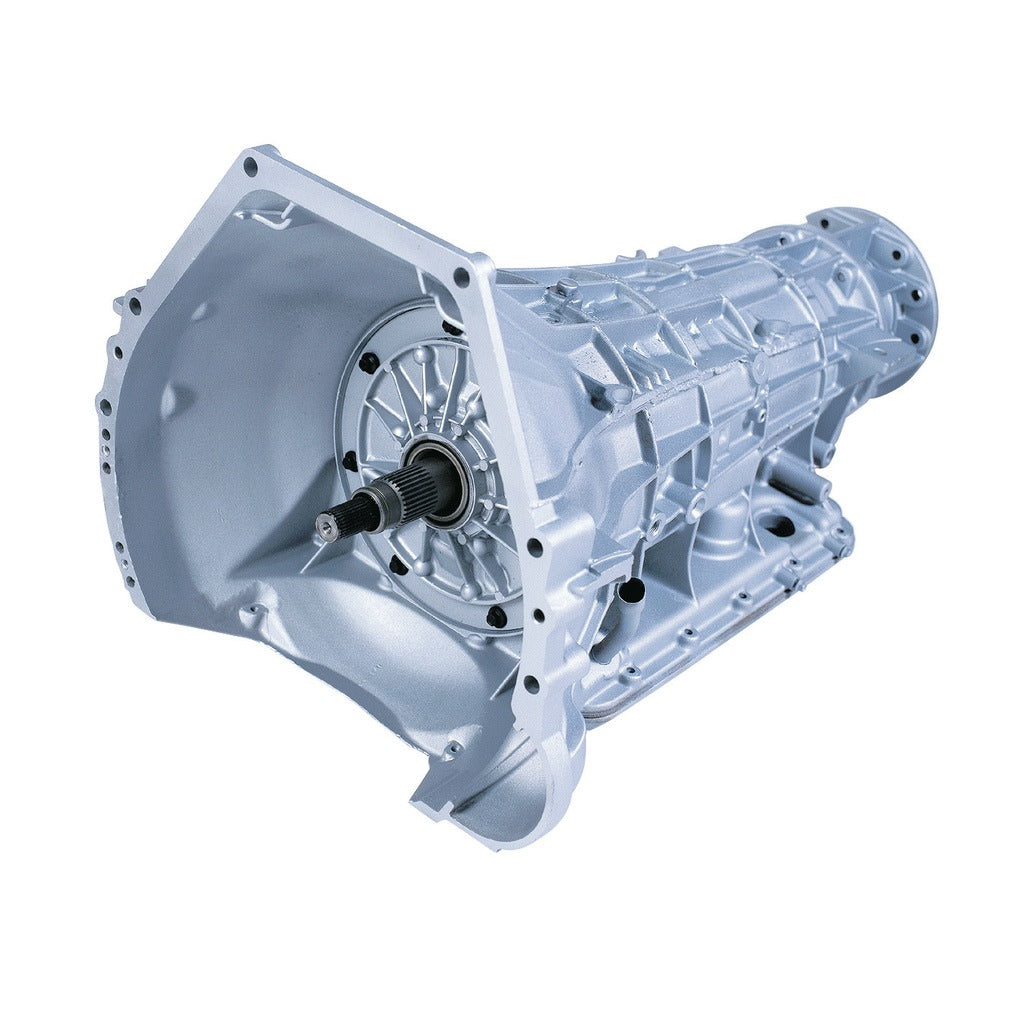

BD TowMaster Ford E4OD Transmission 1995-1997 4wd
Increments of 1
Minimum of 1
Maximum of
0Low stock
0
Sale price
$4,227.95
-0%
Regular price
$4,227.95
Regular price
$4,227.95
Unit price
per
Couldn't load pickup availability
Get notified by email when this product becomes available
Have a question?
Description
The stock transmission is designed to handle the output of the stock engine, but not much more. Increase the durability of your drivetrain with a BD transmission. All transmissions come with BD's heavy duty transmission pan and most packages come bundled with our auxiliary transmission filter kit for added protection!
- Machined center support
- Tighter clutch packs that provide a quicker shift
- 30%-40% more clutch material with additional steels
- Full shift kit with line mod valve to increase pressures
- Improved internal lubrication by adding high power boost valves
- Reworked front pump
- Improved bearing designs
- Machined low/reverse pressure plate
- Upgrade supports
- Upgraded sprags
- Sure-loc snap rings
- Clutch Count: FORWARD 5
- Solenoids hard wiring providing high temperature resistance
- Increase the durability of your drivetrain
- Revised oil circuits
- Accumulator body enhanced oil flow
- Handles up to 300% more power and torque than the stock transmission
- Extra clutches and stronger internals
- BD rigid aluminum heavy duty transmission pan
- Pan reduces case flex
- Machined rear ring gear hub
- Pan reduces internal oil leakage
- Clutch Count: DIRECT 5
- Pan heat-dissipating fins keep temperature down
- Pan magnetic drain plug
- Not warranted for Race or Sled Pull use
- Each transmission is dyno tested
- Increased cooler pressure
- Added lube circuits to OD planet
- Added lube and support to output and intermediate shafts
- Replaced all aluminum planetaries with steel
- Drilled and tapped direct and intermediate feeds to prevent leaks at case
- Re-programmed accumulator body
- Machined intermediate piston
- Increased pressure to converter
- Creates positive clutch application
- Created lube circuit for towing in overdrive

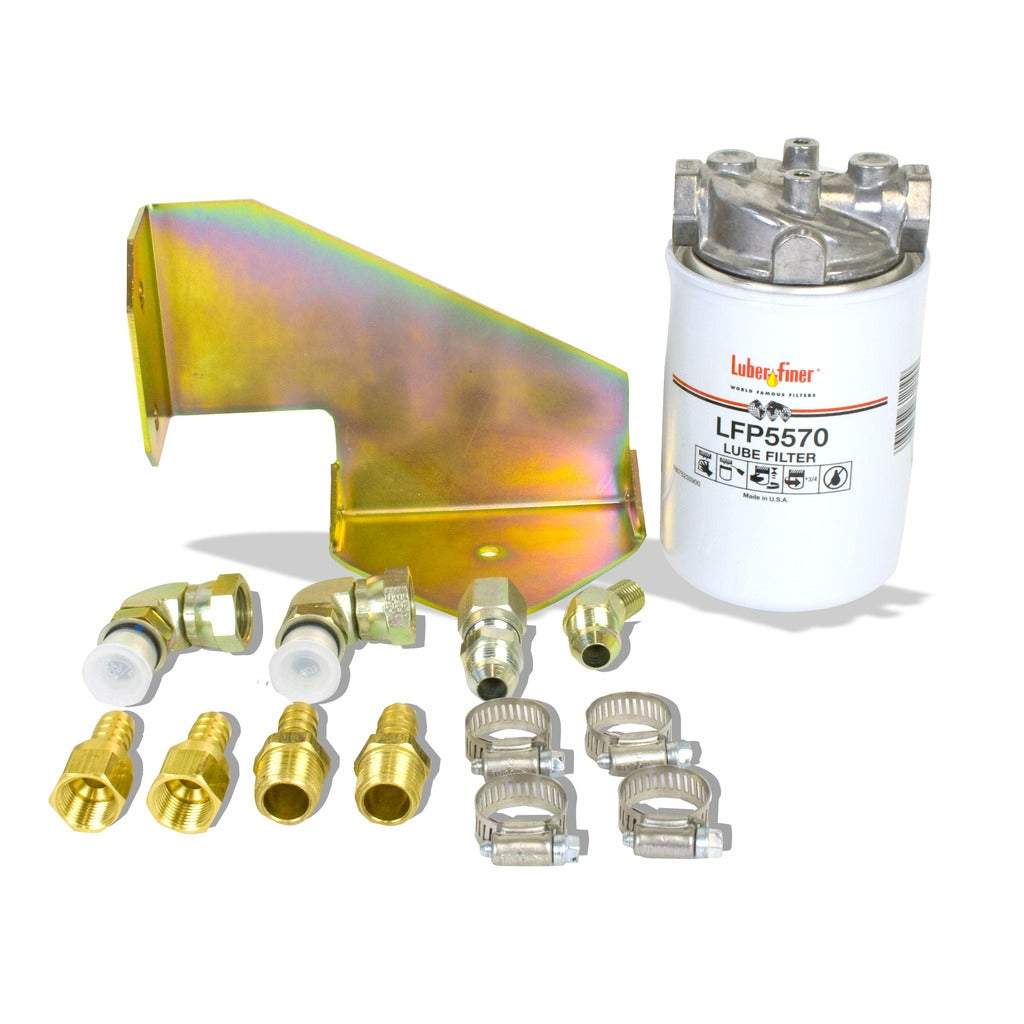

- 1990-2003 include auxiliary frame mounted full flow filter kit
- Clutch Count: COAST CLUTCH 2
- Clutch Count: LOW REVERSE 7
- Clutch Count: INTERMEDIATE 4
- Clutch Count: OVERDRIVE 4
- Pan adds 6qt extra oil capacity
- Fully rollerized geartrain
Attributes:
- Brand Name: BD Diesel
- GTIN: 00990011402521
- Drivetrain: 4WD
- Engine: 7.3L Powerstroke 94-97
- Make: Ford
- Suggested Product: 1030223
Extended Information:
- Country of Origin: United States
- Emissions : Emissions Compliance Exempt
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 23.5 x 44.5 x 27.3 inches
- Weight: 250 POUNDS
PDF:
(I-00434) BD Core Acceptance
