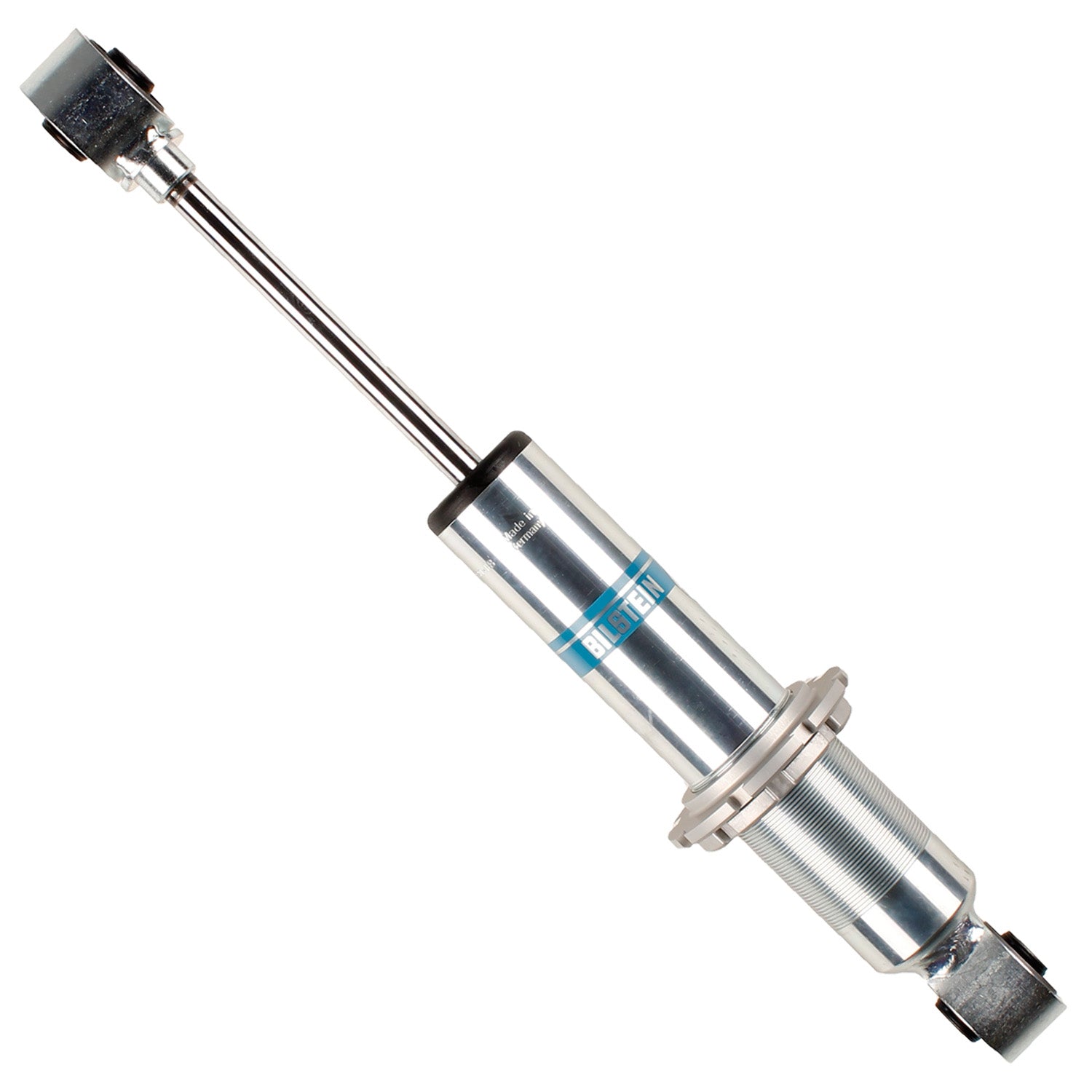

Bilstein Shock Absorbers

Bilstein M 7100 Classic (Coilover) is designed for custom off-road motorsports and recreational applications. These coilovers are factory rebuildable and feature a fully threaded, non-reservoir shock body. Each coilover is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 Classic (Coilover) is offered in a 10 inch travel stroke and come with 2.5 inch ID single rate spring hardware. For custom, light weight applications, M7100 Classic (Coilover) will deliver reliable performance.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Available for standard and coilover applications in a wide variety of lengths
• Self-adjusting deflective disc valving

Vehicle Specific

• No Applications

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860652238
• Body Design: Threaded Body (Coilover)
• Collapsed Length (IN): 12.34
• Collapsed Length (MM): 313.5
• Compression @0.52m/s: 965
• Extended Length (IN): 18.22
• Extended Length (MM): 463.0
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 14.2mm
• Mount Type: Eye-to-Eye
• Optional Reservoir Clamp: N/A
• PartType: Shocks / Struts
• Piston Diameter: 46mm
• Rebound @0.52m/s: 3030
• Reservoir: No
• Segment: Motorsports
• Series: M 7100 Classic (Coilover)
• Shaft Diameter (mm): 14.0
• Spring Hardware: Single Rate (2.5in)
• Spring Seat Included: Lower
• Stroke/Travel Length (IN): 5.90
• Stroke/Travel Length (mm): 149.9
• Upper Mount Type: Eye 14.2mm

Extended Information:

• Country of Origin: DE
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.7700 x 4.1300 x 4.1300 inches
• Weight: 5.2400 POUNDS
