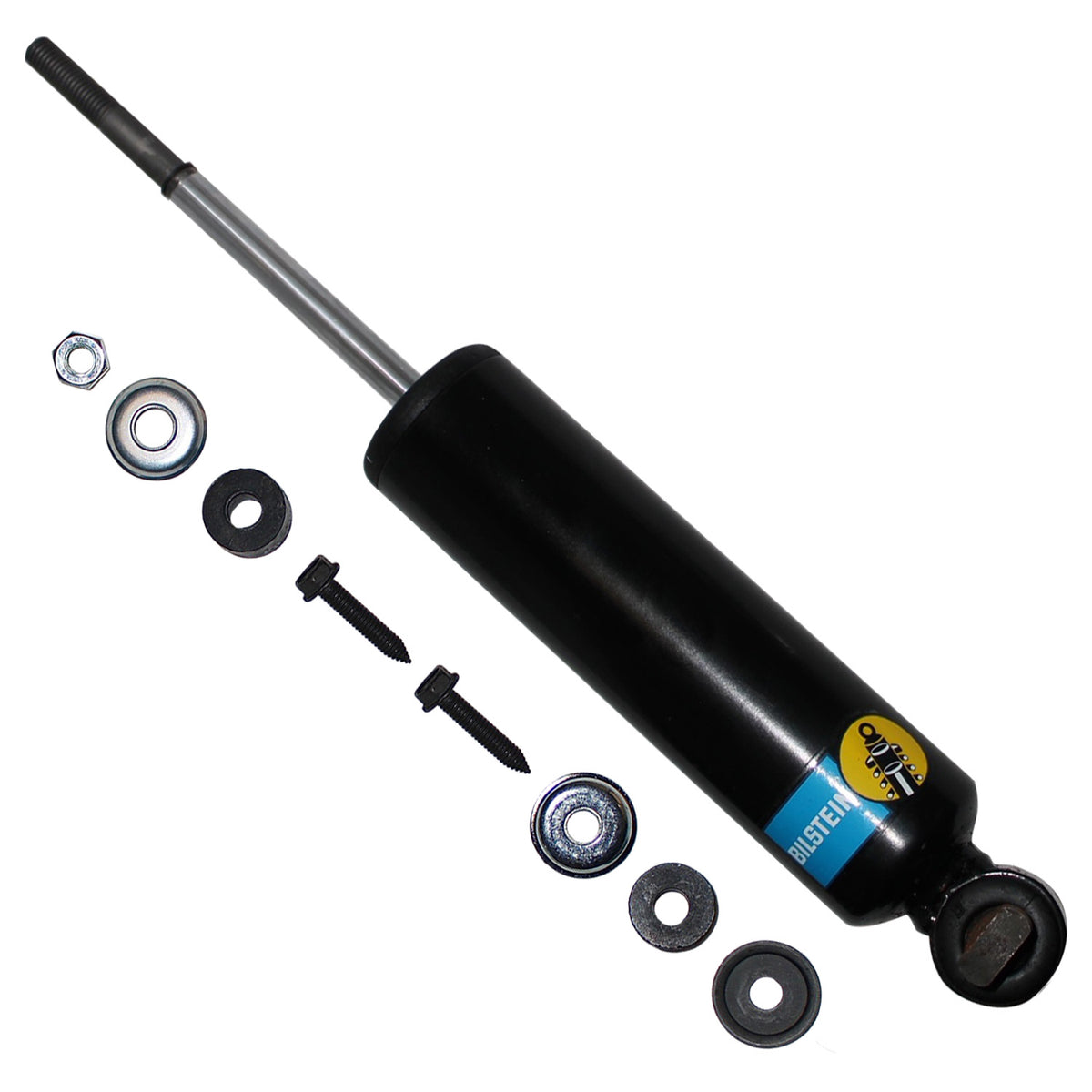

Bilstein Shock Absorbers

Bilstein SMX Series shock absorbers are specifically designed for motorsports applications that mandate the use of stock mount (OE) suspension components. Designed using 46mm monotube technology, the shocks are available in a variety of damping options including dry kit designed specifically to provide the best options for a variety of race track types and conditions. Built in the USA with precision components and top quality controls, the SMX Series shocks deliver Bilstein’s famous fade-free performance and consistency in a factory-mount package that championship winning racers demand.

• Stock mount design for GM metric chassis applications
• 46mm piston design for maximum damping control
• A wide range of valving choices available for endless tuning combinations

Vehicle Specific

• No Applications

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860847528
• Adjustable Damping: Non-Adjustable
• Body Design: Stock Mount Smooth Body
• Body Material: Steel
• Boot Included: No
• Collapsed Length (IN): 8.27
• Collapsed Length (MM): 210.0
• Extended Length (IN): 12.01
• Extended Length (MM): 305.0
• Finish: Black Paint
• Internal Design: Monotube
• Lower Mount Type: Bar Pin
• PartType: Shocks / Struts
• Piston Diameter: 46mm
• Piston Type: Linear
• Segment: Motorsports
• Series: SMX Series
• Shaft Diameter: 11mm
• Spring Hardware: N/A
• Spring Seat Included: No
• Stroke/Travel Length (IN): 3.74
• Stroke/Travel Length (mm): 95.0
• Upper Mount Type: Stem

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 22.4500 x 2.9500 x 2.9500 inches
• Weight: 3.2400 POUNDS
