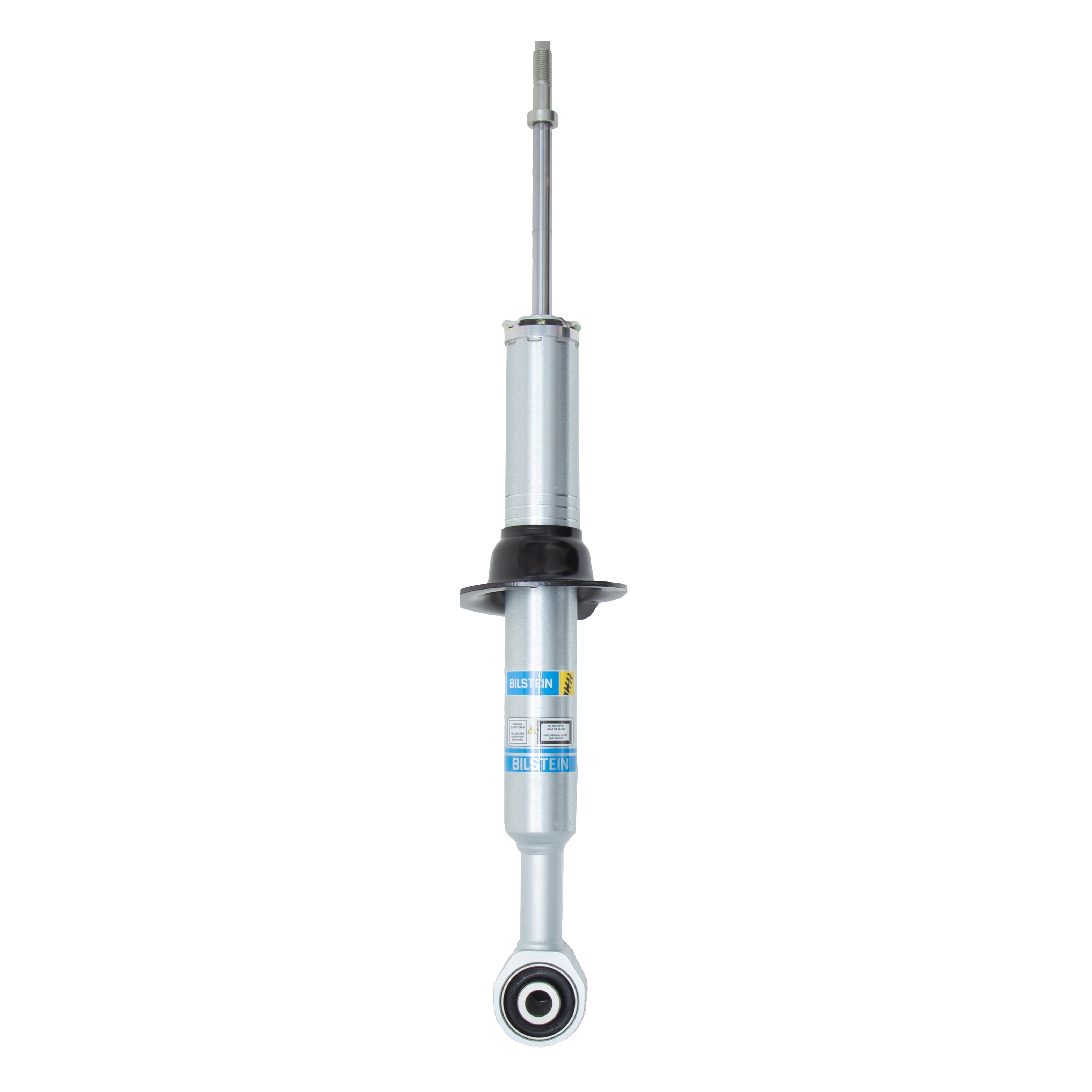

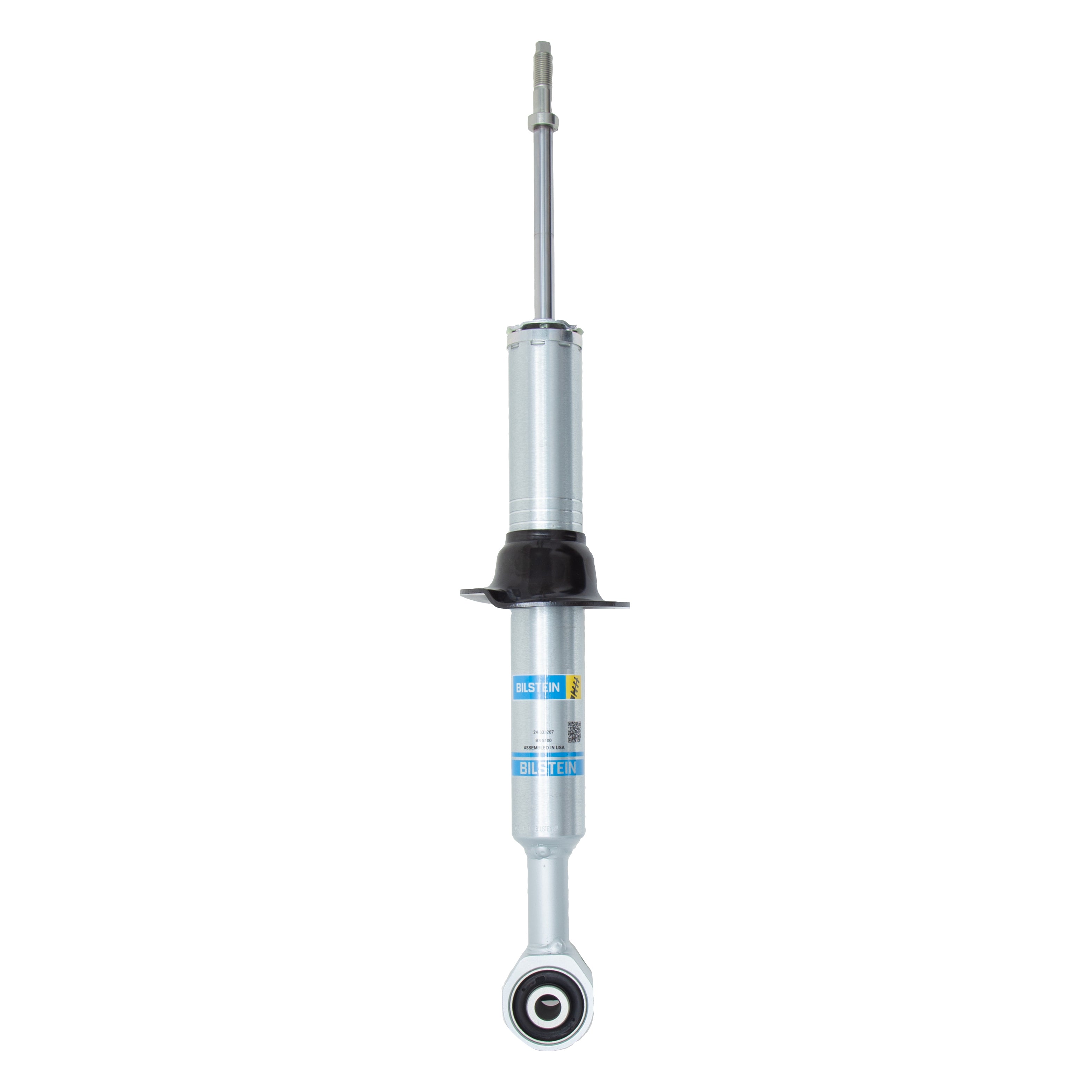

Bilstein Shock Absorbers

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
• Adjustable spring seat offers 0-2.75in of lift, depending on the application

Vehicle Specific

• Toyota Tacoma 2024-2025

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860955650
• Adjustable Damping: Non-Adjustable
• Body Design: Snap Ring Grooved Body (Coilover)
• Boot Included: No
• Collapsed Length (IN): 19.24
• Collapsed Length (MM): 488.8
• Extended Length (IN): 24.13
• Extended Length (MM): 612.8
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 16.3mm
• PartType: Shocks / Struts
• Piston Diameter: 46mm
• Reservoir: No
• Segment: Light Truck
• Series: B8 5100 (Ride Height Adjustable)
• Shaft Diameter: 14mm
• Spring Seat Included: Yes
• Stroke/Travel Length (IN): 4.89
• Stroke/Travel Length (mm): 124.2
• Upper Mount Type: Stem

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 6.1000 x 6.1000 inches
• Weight: 8.5500 POUNDS
