Bilstein Shock Absorbers

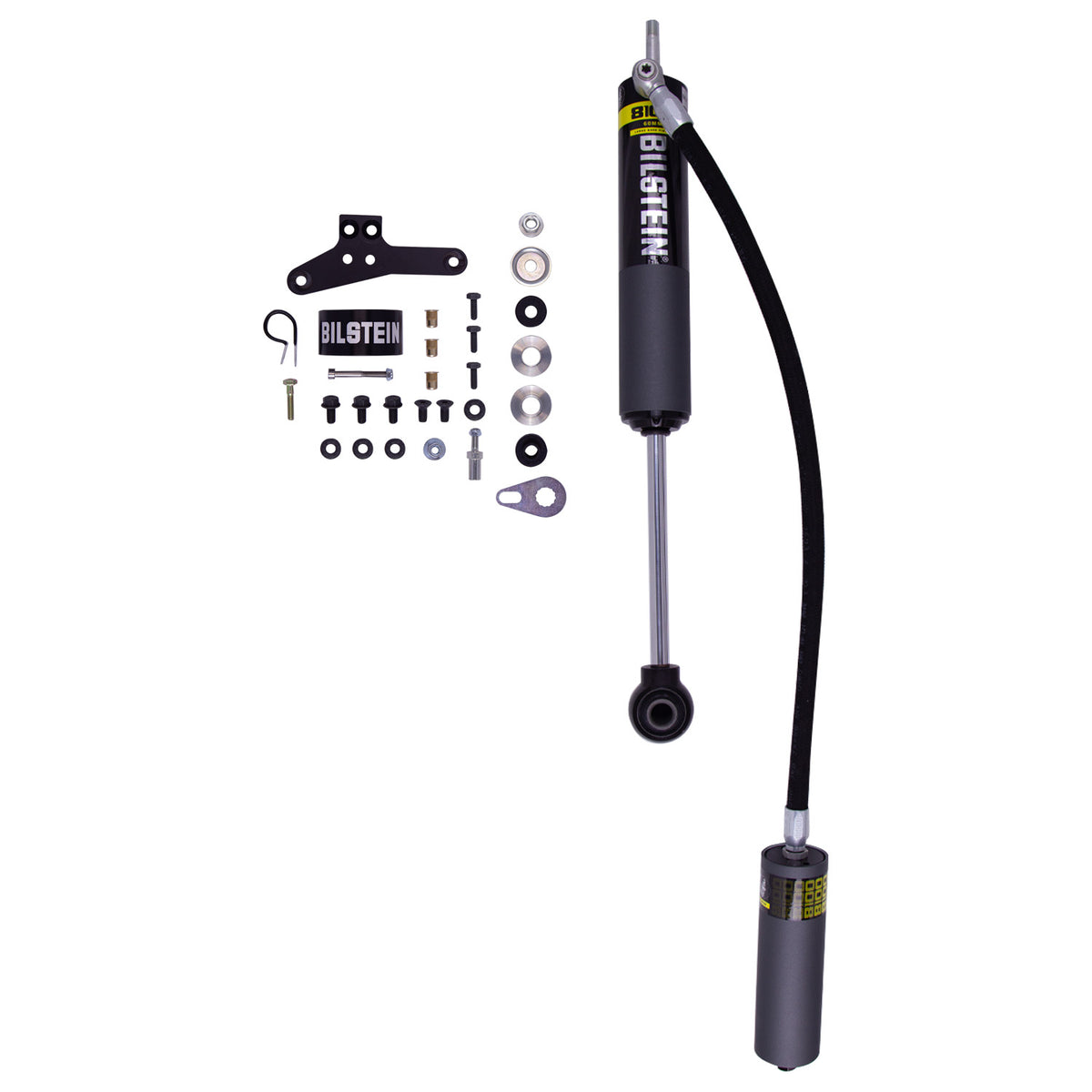

Bilstein B8 8100 reservoir shock absorbers are a large bore 2.65-in OD direct fit solution for lifted trucks and SUVs. Constructed from aerospace quality billet components, the large 2.65-in OD shock body shock body offers a higher oil volume capacity to control heat while tackling rough road surfaces over long distances. Each B8 8100 offers a unique remote or piggyback reservoir solution for an easy, hassle free installation. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. The large 60mm piston design offers more comfort and control in all driving conditions. The Bilstein B8 8100 will allow you to tame the terrain in comfort.

• 60mm large bore digressive piston offers a greater range of tunability and delivers exceptional comfort without sacrificing control
• Direct fit for an easy installation
• 60mm remote reservoir offers increased oil capacity for consistent performance over rough terrain

Vehicle Specific

• Lexus GX460 2010-2023, GX470 2003-2009, Toyota 4Runner 2003-2024

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860892337
• Adjustable Damping: Non-Adjustable
• Body Design: 60mm ID Smooth Body (Non-Coilover)
• Boot Included: No
• Collapsed Length (IN): 14.94
• Collapsed Length (MM): 379.5
• Extended Length (IN): 23.48
• Extended Length (MM): 596.5
• Finish: EVO Grey
• Internal Design: Monotube
• Lower Mount Type: Eye 19.2mm
• PartType: Shocks / Struts
• Piston Diameter: 60mm
• Reservoir: Yes
• Segment: Light Truck
• Series: B8 8100
• Shaft Diameter: 18mm
• Spring Seat Included: No
• Upper Mount Type: Stem

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 40.5000 x 11.7500 x 6.7500 inches
• Weight: 19.1500 POUNDS
