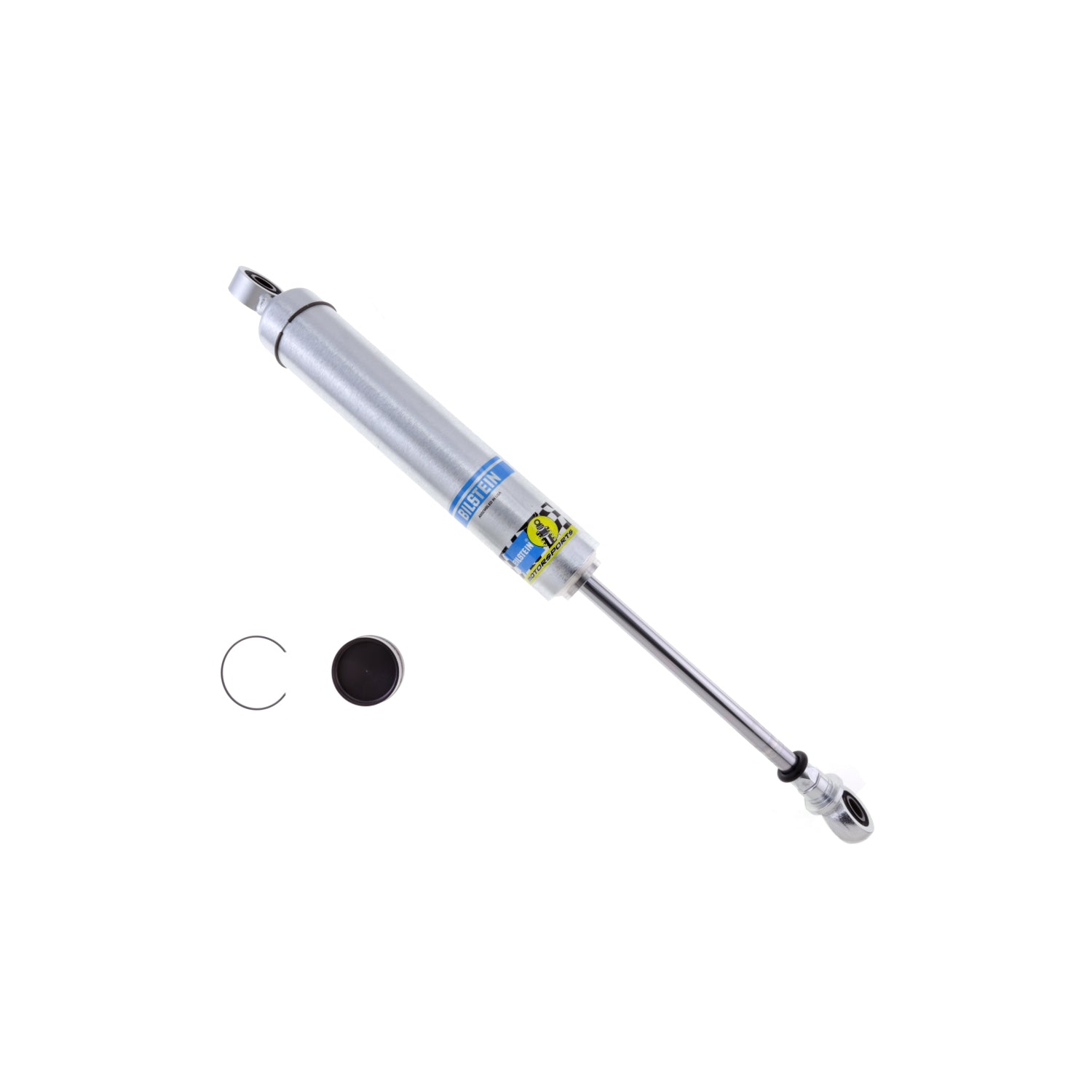

Bilstein Shock Absorbers

Bilstein SL Series shock absorbers feature a 46mm piston, steel construction, and a smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths, valve settings and can be converted to a coilover design (kit sold separately). Also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SL Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

• Plated steel body for durability and superior heat dissipation
• 46mm piston design for maximum damping control
• Standard 1/2” graphite heims

Vehicle Specific

• No Applications

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860750477
• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body (Non-coilover)
• Body Material: Steel
• Boot Included: No
• Collapsed Length (IN): 13.15
• Collapsed Length (MM): 334.0
• Extended Length (IN): 20.08
• Extended Length (MM): 510.0
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: 1/2in Heim
• PartType: Shocks / Struts
• Piston Diameter: 46mm
• Piston Type: Linear
• Segment: Motorsports
• Series: SL Series
• Shaft Diameter: 14mm
• Spring Hardware: B4-BOA-0000117
• Spring Seat Included: No
• Stroke/Travel Length (IN): 6.93
• Stroke/Travel Length (mm): 176.0
• Upper Mount Type: 1/2in Heim

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 3.2900 POUNDS
