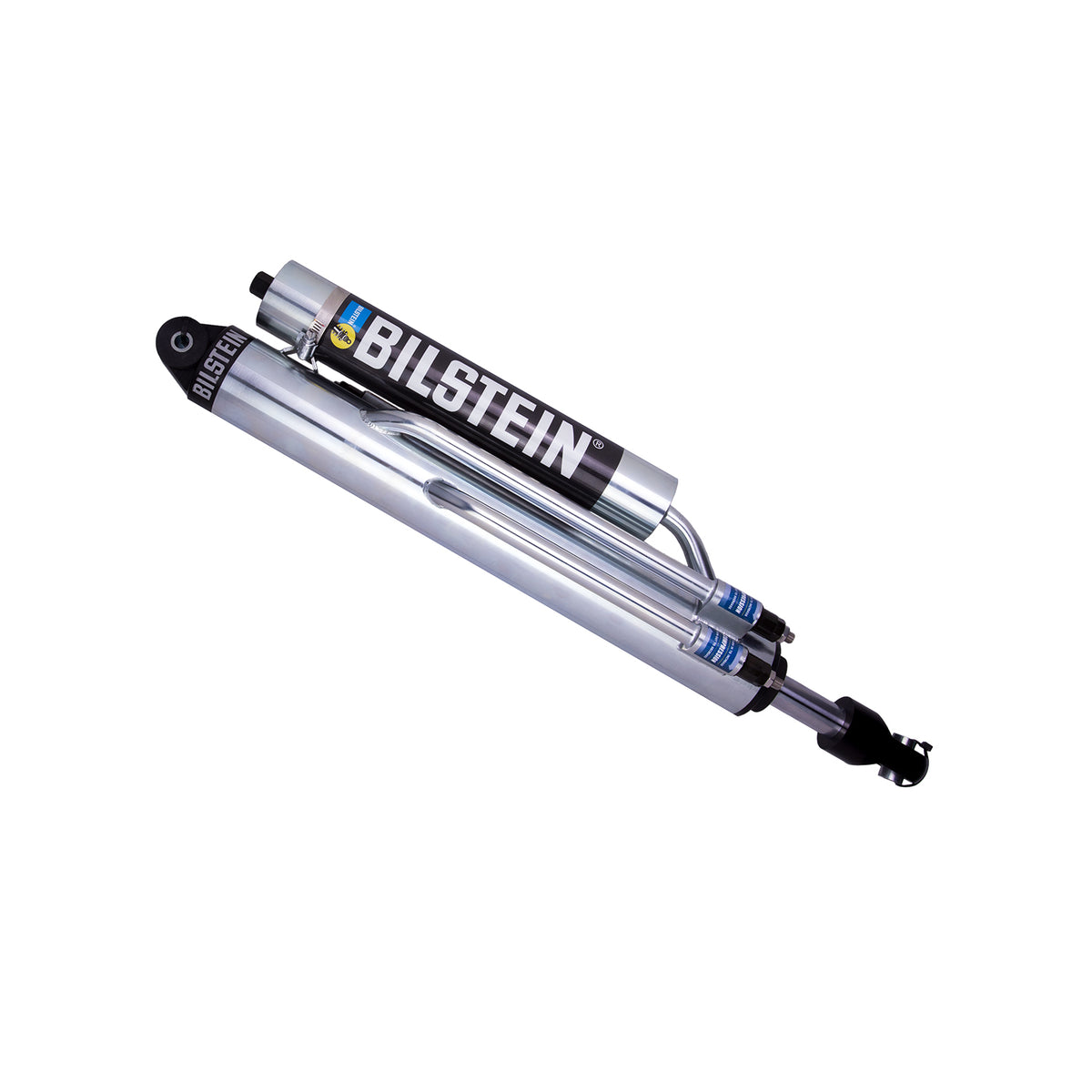

Bilstein Shock Absorbers
$1,476.00
Skip to product information
Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
Bilstein Shock Absorbers
$1,476.00
- Available in 60mm, 70mm and 83mm monotubes
- 4-tube, position sensitive with adjustable rebound and compression
- Multiple stroke lengths available ranging from 8" to 18"
- No Applications
Attributes:
- Brand Name: Bilstein
- GTIN: 00651860766928
- Body Design: 4-Tube Bypass Screw Top
- Boot Included: N/A
- Collapsed Length (IN): 24.50
- Collapsed Length (MM): 622.3
- Compression @0.52m/s: Custom
- Extended Length (IN): 38.50
- Extended Length (MM): 977.9
- Finish: Zinc Plated
- Internal Design: Monotube
- Lower Mount Type: Eye .5x1.5in
- Mount Type: Eye-to-Eye
- Optional Reservoir Clamp: N/A
- PartType: Shocks / Struts
- Piston Diameter: 70mm
- Position: Left
- Rebound @0.52m/s: Custom
- Reservoir: Yes
- Segment: Motorsports
- Series: M 9200 (Bypass)
- Shaft Diameter: 1-1/8 in.
- Shaft Diameter (mm): 28.6
- Spring Seat Included: No
- Stroke/Travel Length (IN): 14.00
- Stroke/Travel Length (mm): 355.6
- Upper Mount Type: Eye .5x1.5in
Extended Information:
- Country of Origin: United States
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 33.5000 x 11.8800 x 8.8800 inches
- Weight: 34.5900 POUNDS
PDF:
