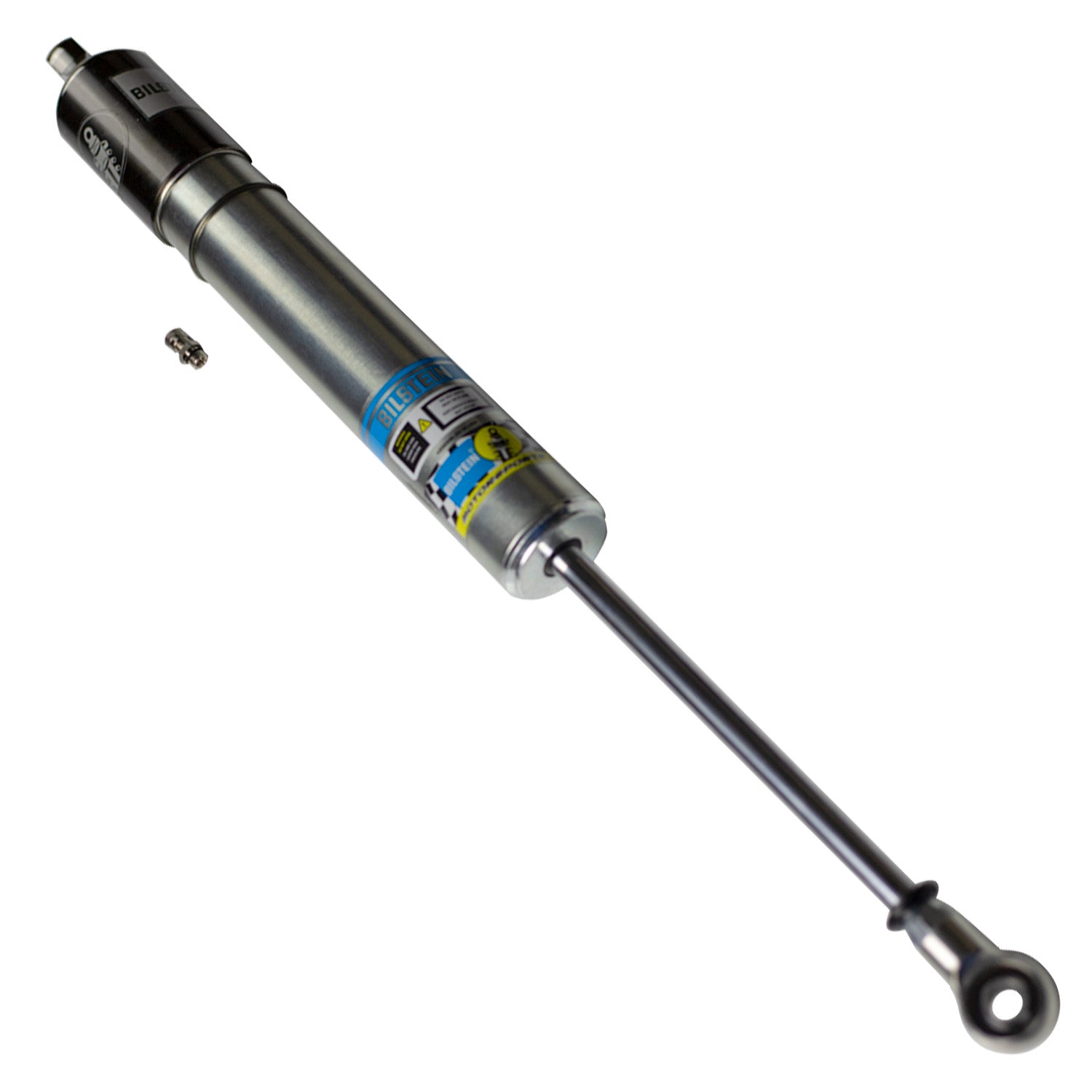

Bilstein Shock Absorbers

Bilstein SNS2 Series (BV) shock absorbers feature an all-steel smooth body construction with 46mm internal bore (piston and piston band sold separately, base valve assembly and premium Teflon heims.  These shock absorbers include a steel body with external nitrogen fill valve and can be converted to a coilover application (kit sold separately).  SNS2 Series (BV) shock absorbers are ideal for racers competing within sanctioning rules require all-steel body construction who are looking for rebuildable dampers with extra tuning options through base valve technology.

• Base Valve design delivers ultra low rod pressures and elminates gas preload
• Modular steel body design allows racer rebuildability
• Comes with IMCA-legal plug assembly installed (SNS2 Series)

Vehicle Specific

• No Applications

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860880211
• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body Screw Top (Non-coilover)
• Body Material: Steel
• Boot Included: No
• Collapsed Length (IN): 15.87
• Collapsed Length (MM): 403.2
• Extended Length (IN): 23.79
• Extended Length (MM): 604.4
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: 1/2in Heim
• PartType: Shocks / Struts
• Piston Diameter: 46mm
• Piston Type: Linear
• Segment: Motorsports
• Series: SNS2 Series (BV)
• Shaft Diameter: 14mm
• Spring Hardware: B4-BOA-0000117
• Spring Seat Included: No
• Stroke/Travel Length (IN): 7.92
• Stroke/Travel Length (mm): 201.2
• Upper Mount Type: 1/2in Heim

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 5.3800 POUNDS
