Continue shoppingBilstein Shock Absorbers
Increments of 1
Minimum of 1
Maximum of
0Low stock
0In stock, ready to ship
Sale price
$1,370.50
-0%
Regular price
$1,370.50
Regular price
$1,370.50
Unit price
per
Couldn't load pickup availability
Fast Shipping
Free Returns
Best Deals
Get notified by email when this product becomes available
Have a question?
Description

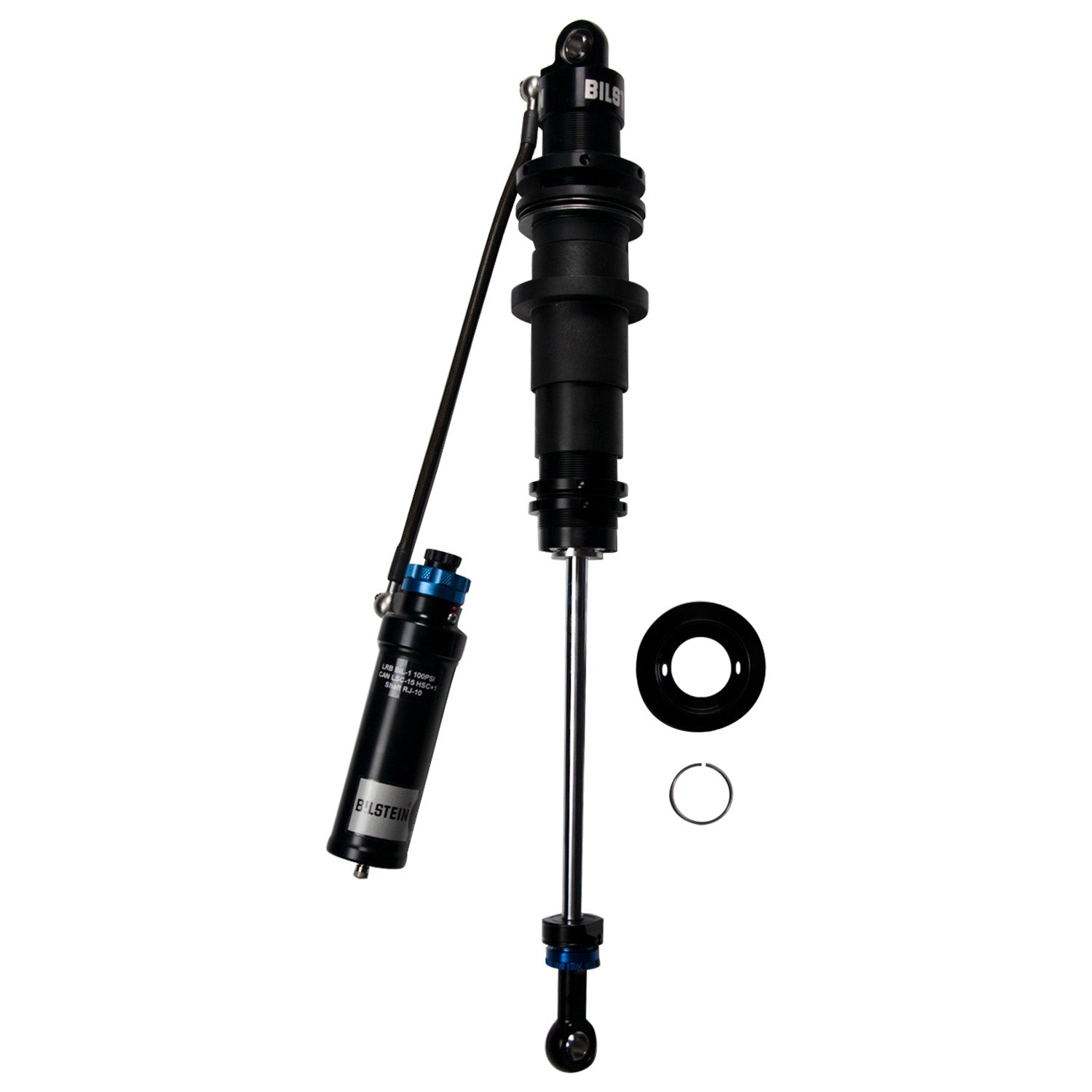

Bilstein AS2-R Series shock absorbers are designed for motorsports applications and provides premium performance through superior tuning and modular design. The package features an aluminum-bodied remote reservoir with tunable base valve technology and several adjustment options mated to Bilstein’s AS2 Series aluminum modular shock. The lightweight threaded body shock can be used with or without coilover hardware. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. The AS2-R Series shock absorbers offer racers a versatile damper that maximizes suspension travel and gives an endless range of options for tuning and upgradeability.
- Championship-winning tuning options
- All dampers feature 46mm aluminum monotube designs for light weight and hard anodized for durability
- Low friction rod guides for minimum rod drag
- No Applications
Attributes:
- Brand Name: Bilstein
- GTIN: 00651860872667
- Adjustable Damping: Triple Adjustable - Rebound and High and Low Speed Compression
- Body Design: Threaded Body Screw Top (Coilover)
- Body Material: Aluminum
- Boot Included: No
- Collapsed Length (IN): 15.33
- Collapsed Length (MM): 389.0
- Extended Length (IN): 24.18
- Extended Length (MM): 614.0
- Finish: Clear Anodized
- Internal Design: Monotube
- Lower Mount Type: 1/2in Heim
- PartType: Shocks / Struts
- Piston Diameter: 46mm
- Piston Type: 2 Port Linear
- Segment: Motorsports
- Series: AS2-R Series
- Shaft Diameter: 14mm
- Spring Hardware: E4-MSG-0096A00
- Spring Hardware 2: B4-MKT-0008A00
- Spring Hardware 3: B4-MKT-0002A00
- Spring Hardware 4: E4-FT4-Z060A00
- Spring Seat Included: Yes
- Stroke/Travel Length (IN): 8.85
- Stroke/Travel Length (mm): 224.8
- Upper Mount Type: 1/2in Heim
Extended Information:
- Country of Origin: US
- Emissions : Emissions Compliance Exempt
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1.0
- Package UOM: EA
- Dimension: 29.5000 x 3.5000 x 3.5000 inches
- Weight: 7.0000 POUNDS
