Bilstein Shock Absorbers

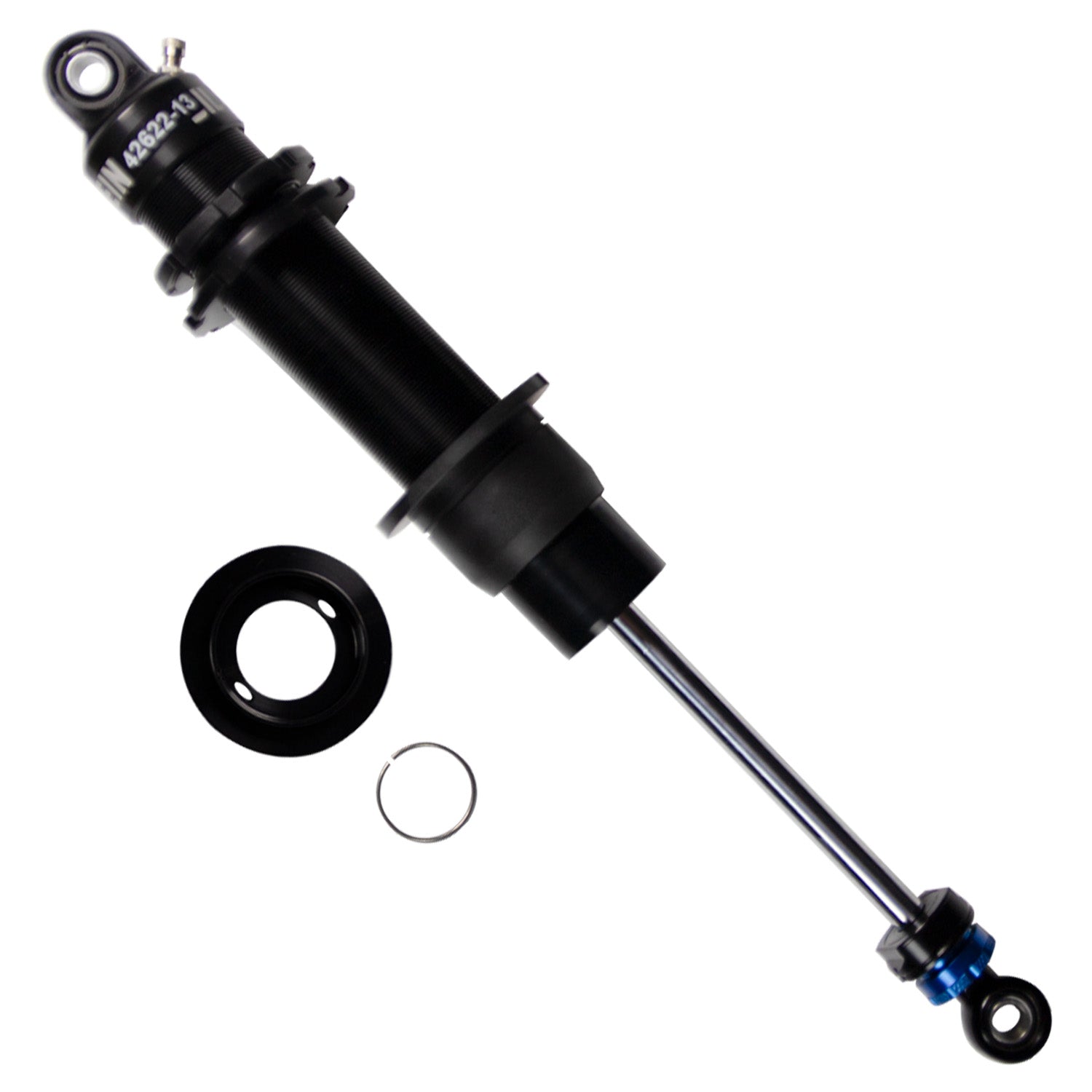

Bilstein AS2 Series shock absorbers are designed for motorsports applications and provide the user with the option to rebuild them. The modular aluminum design is offered in non-, single and double adjustable configurations which provide superior on-vehicle tuning capabilities. The threaded body provides precise height adjustments for coilover setups and dissipates heat quickly. The hard anodized coating reduces internal friction and improves strength and durability (pistons, piston bands and heims are sold separately to allow for a variety of combinations). AS2 Series shock absorbers are ideal for racers demanding a lightweight design with upgrade capability.

• 46mm lightweight extruded aluminum body for superior heat dissipation
• Fine thread body provides precise adjustments in coilover applications
• Single and double adjustable shaft options available

Vehicle Specific

• No Applications

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860872698
• Adjustable Damping: Single Adjustable - Rebound
• Body Design: Threaded Body Screw Top (Coilover)
• Body Material: Aluminum
• Boot Included: No
• Collapsed Length (IN): 13.21
• Collapsed Length (MM): 336.0
• Extended Length (IN): 19.40
• Extended Length (MM): 493.0
• Finish: Clear Anodized
• Internal Design: Monotube
• Lower Mount Type: 1/2in teflon heim
• PartType: Shocks / Struts
• Piston Diameter: 46mm
• Piston Type: Linear
• Segment: Motorsports
• Series: AS2 Series
• Shaft Diameter: 14mm

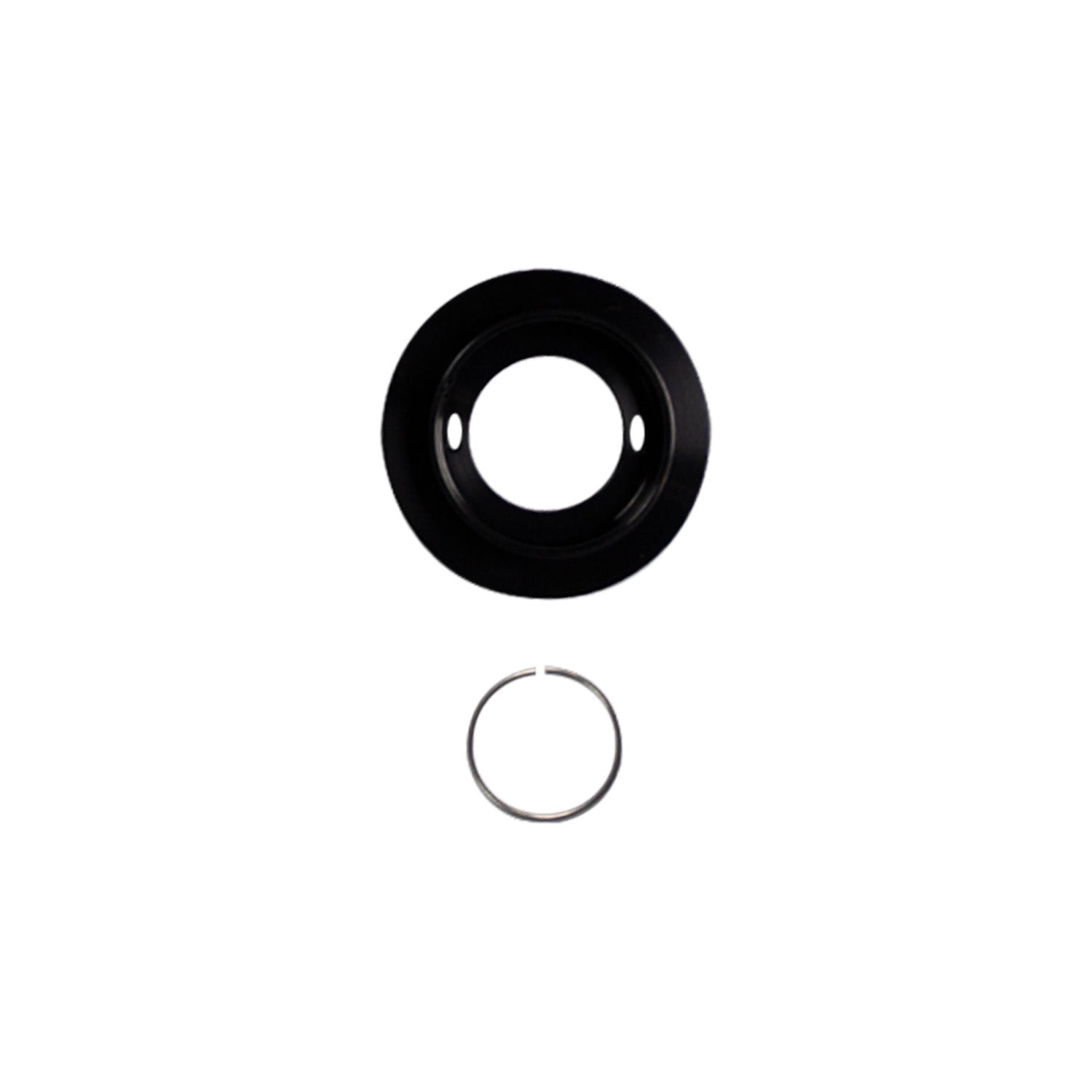

• Spring Seat Included: Yes
• Stroke/Travel Length (IN): 6.19
• Stroke/Travel Length (mm): 157.2
• Upper Mount Type: 1/2in teflon heim

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 29.5000 x 3.5000 x 3.5000 inches
• Weight: 3.9300 POUNDS
