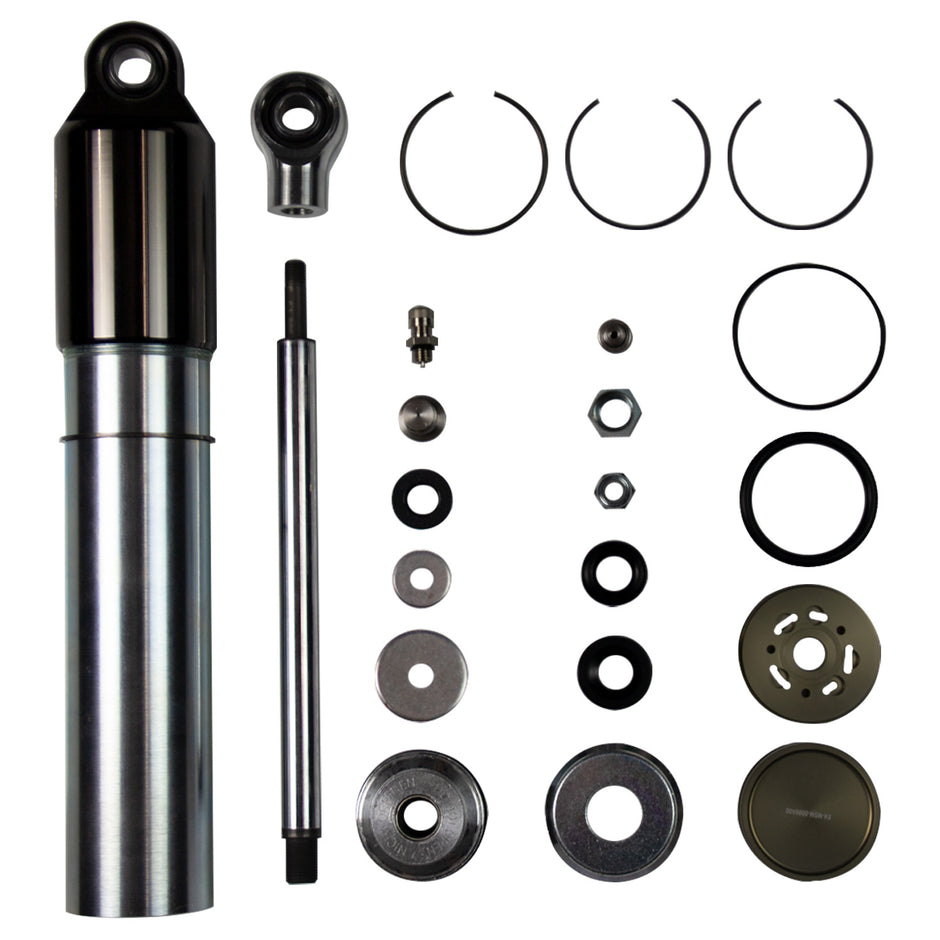

Bilstein Shock Absorbers

Bilstein SNS2 Series (BV) shock absorbers feature an all-steel smooth body construction with 46mm internal bore (piston and piston band sold separately, base valve assembly and premium Teflon heims.  These shock absorbers include a steel body with external nitrogen fill valve and can be converted to a coilover application (kit sold separately).  SNS2 Series (BV) shock absorbers are ideal for racers competing within sanctioning rules require all-steel body construction who are looking for rebuildable dampers with extra tuning options through base valve technology.

• Base Valve design delivers ultra low rod pressures and elminates gas preload
• Modular steel body design allows racer rebuildability
• Comes with IMCA-legal plug assembly installed (SNS2 Series)

Vehicle Specific

• No Applications

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860873848
• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body Screw Top (Non-coilover)
• Body Material: Steel
• Boot Included: No
• Collapsed Length (IN): 13.35
• Collapsed Length (MM): 339.0
• Extended Length (IN): 19.16
• Extended Length (MM): 486.8
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: 1/2in Heim
• PartType: Shocks / Struts
• Piston Diameter: 46mm
• Piston Type: Sold Separately
• Segment: Motorsports
• Series: SNS2 Series (BV)
• Shaft Diameter: 14mm
• Spring Seat Included: No
• Stroke/Travel Length (IN): 5.82
• Stroke/Travel Length (mm): 147.8
• Upper Mount Type: 1/2in Heim

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 22.4500 x 2.9500 x 2.9500 inches
• Weight: 3.8200 POUNDS
