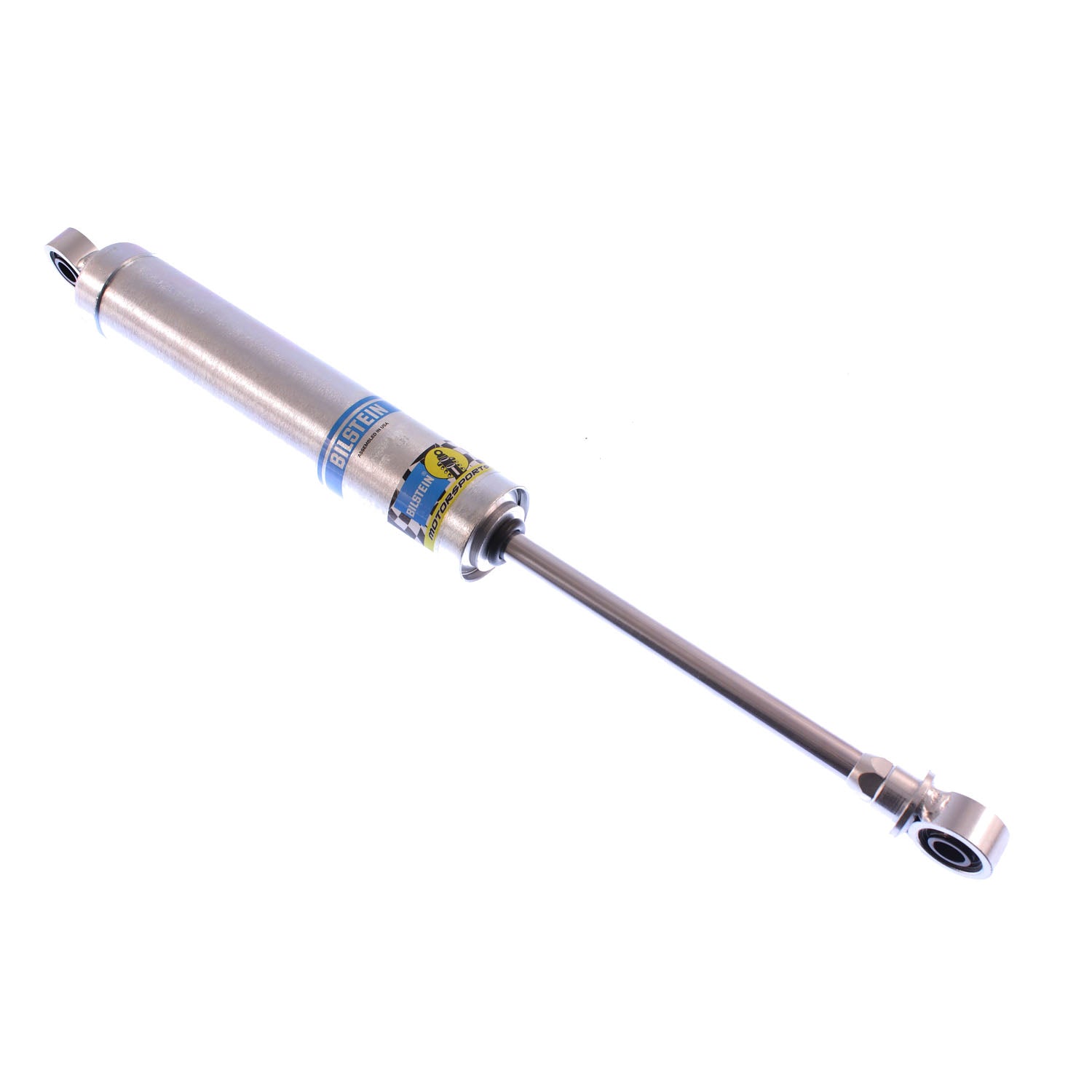

Bilstein Shock Absorbers

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

• Plated steel body for durability and superior heat dissipation
• 46mm piston design for maximum damping control
• Standard 1/2” graphite heims

Vehicle Specific

• No Applications

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860880754
• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body (Non-coilover)
• Body Material: Steel
• Boot Included: No
• Collapsed Length (IN): 14.88
• Collapsed Length (MM): 378.0
• Compression @ 10"/sec: 625
• Extended Length (IN): 23.52
• Extended Length (MM): 597.5
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: 1/2in Heim
• PartType: Shocks / Struts
• Piston Diameter: 46mm
• Piston Type: Digressive
• Rebound @ 10"/sec: 125
• Segment: Motorsports
• Series: SZ Series
• Shaft Diameter: 14mm
• Spring Seat Included: No
• Stroke/Travel Length (IN): 8.64
• Stroke/Travel Length (mm): 219.5
• Upper Mount Type: 1/2in Heim

Extended Information:

• Country of Origin: United States
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 4.6300 POUNDS
