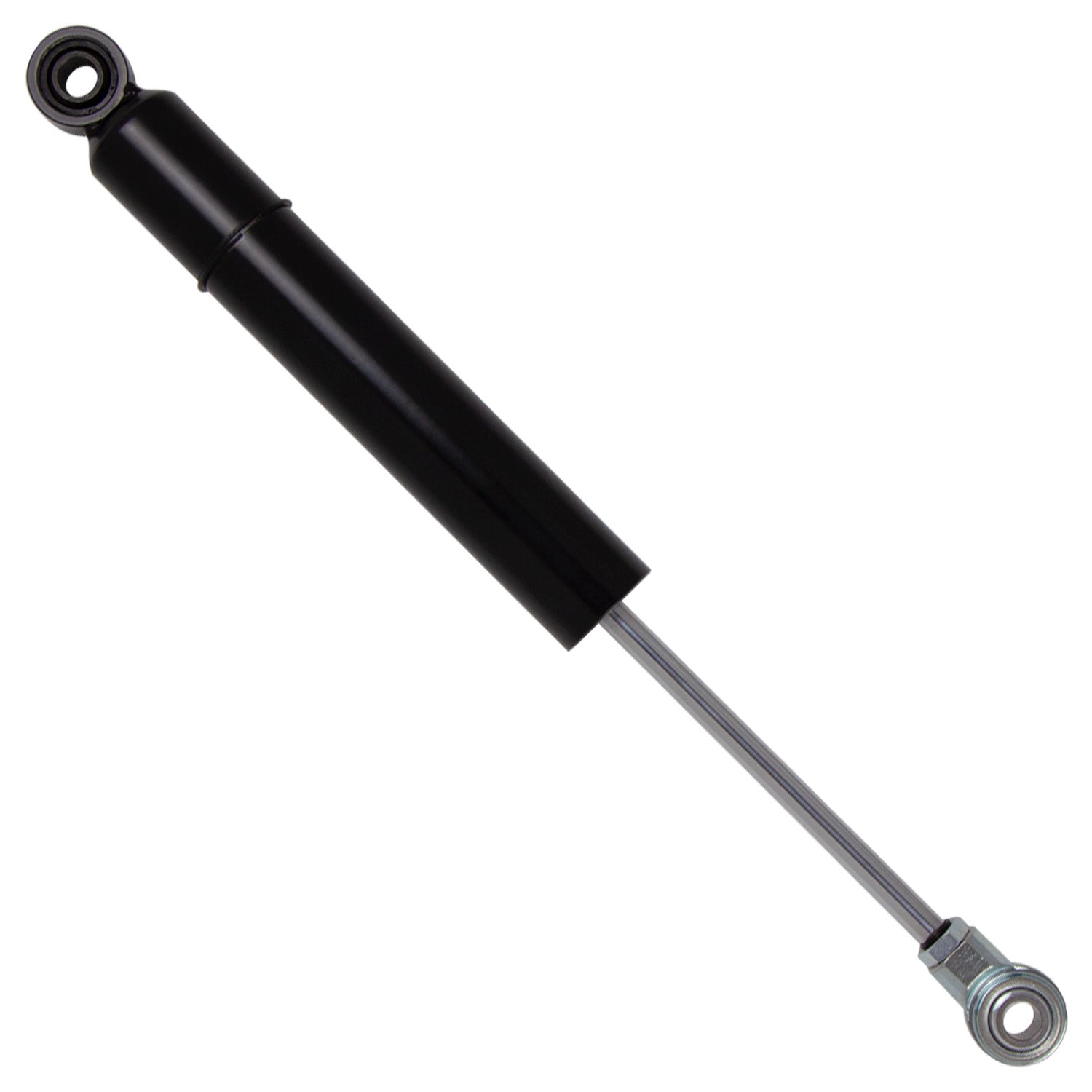

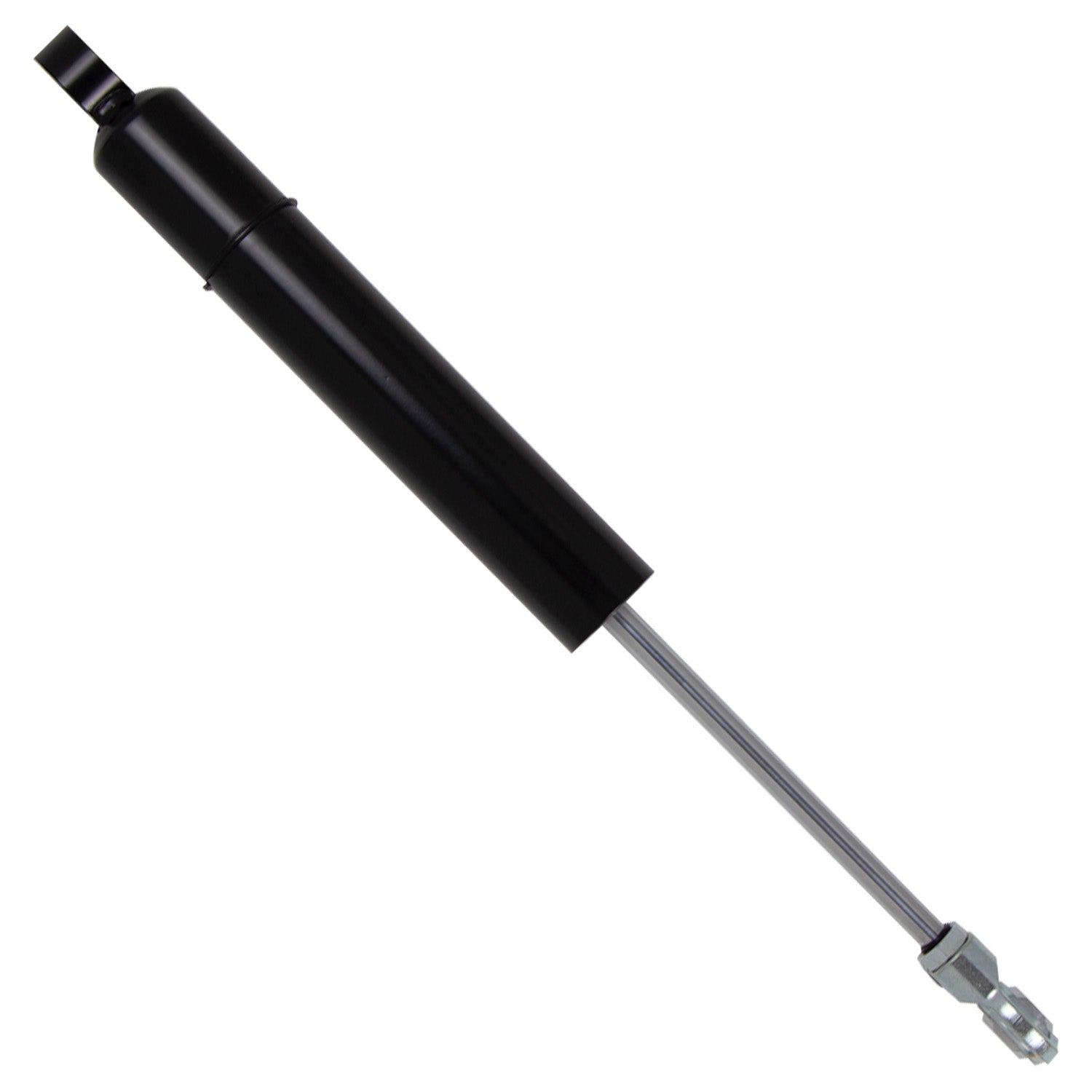

Bilstein Shock Absorbers

BILSTEIN SG2 Series shock absorbers feature a steel monotube body with a 36mm piston designed for a variety of motorsports applications. These dampers are available in 6 and 7 inch strokes with the option of linear or digressive pistons to provide racers with a wide tuning range. These can also be converted to a coilover design (kit sold separately) for multiple platforms on dirt and asphalt. The SG2 Series shock absorbers are ideal for racers needing a lightweight high-performance option with fade free handling and control on light to mid-weight applications.

• 36mm monotube design ensures consistent, fade-free performance in all conditions
• Available for standard and coilover applications
• Designed for Stock Cars, IMCA/UMP Modified, Midgets, Mini-Sprints, Modified Lites and Dwarf Cars

Vehicle Specific

• No Applications

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860938615
• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body (Non-coilover)
• Body Material: Steel
• Boot Included: No
• Collapsed Length (IN): 11.36
• Collapsed Length (MM): 288.5
• Extended Length (IN): 17.22
• Extended Length (MM): 437.5
• Finish: Black Paint
• Internal Design: Monotube
• Lower Mount Type: 1/2in Heim
• PartType: Shocks / Struts
• Piston Diameter: 36mm
• Piston Type: Digressive
• Segment: Motorsports
• Series: G Series
• Shaft Diameter: 11mm
• Spring Seat Included: No
• Stroke/Travel Length (IN): 5.86
• Stroke/Travel Length (mm): 148.8
• Upper Mount Type: 1/2in Heim

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 22.4500 x 2.9500 x 2.9500 inches
• Weight: 2.2000 POUNDS
