Bilstein Shock Absorbers

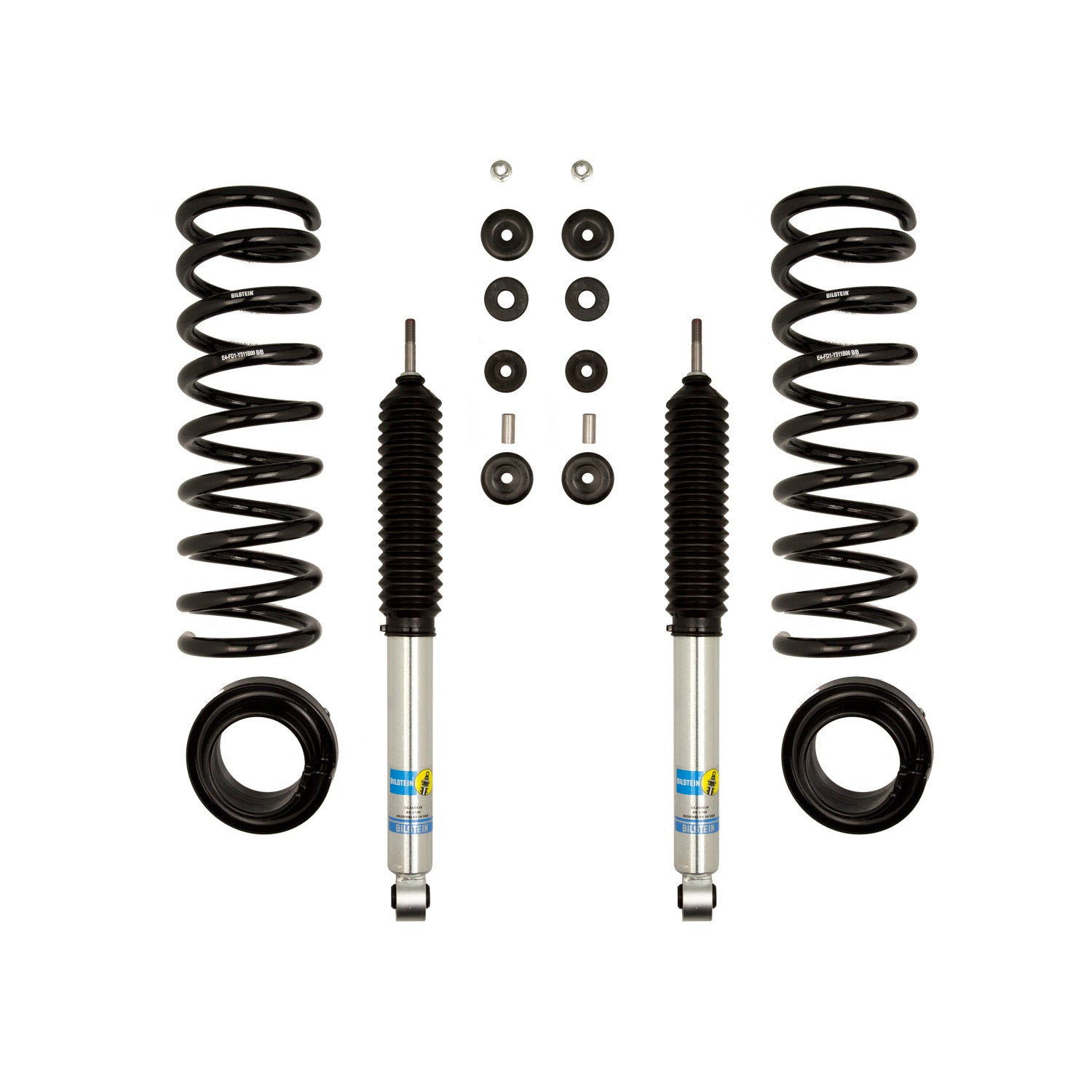

Bilstein B8 5112 suspension kit is a high performance leveling kit which provides more ground clearance, allows for larger tires, and increases wheel travel. The Bilstein B8 5112 suspension kit is for front applications and consists of (2) B8 5100 shock absorbers combined with (2) matched coil springs. This simple yet effective kit will bolt into the factory locations with no modifications. The Bilstein B8 5112 suspension kit provides a smooth and stable ride both on and off-road.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Vehicle Specific

• Ram 2500 2014-2026

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860795690
• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body (Non-Coilover)
• Boot Included: Black Bellows
• Finish: Dampers: Zinc Plated/Springs: Black
• Front Main Spring Rate (lbs/in): 408
• Internal Design: Monotube
• PartType: Suspension Kit
• Piston Diameter: 46mm
• Reservoir: No
• Segment: Light Truck
• Series: B8 5112
• Shaft Diameter: 14mm
• Spring Seat Included: No
• Upper Mount Type: N/A

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 22.2500 x 27.3800 x 7.0000 inches
• Weight: 58.9500 POUNDS
