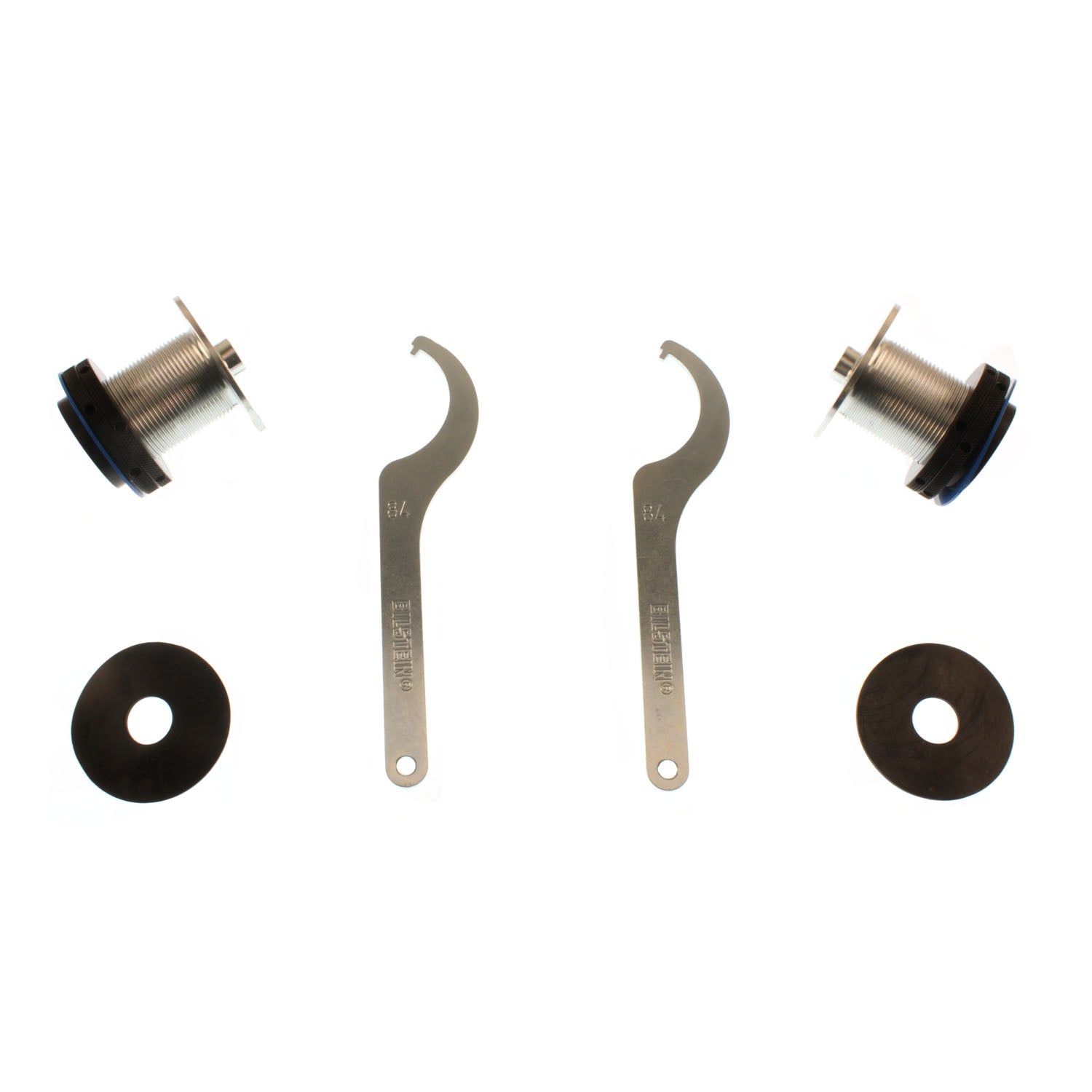

Bilstein Shock Absorbers

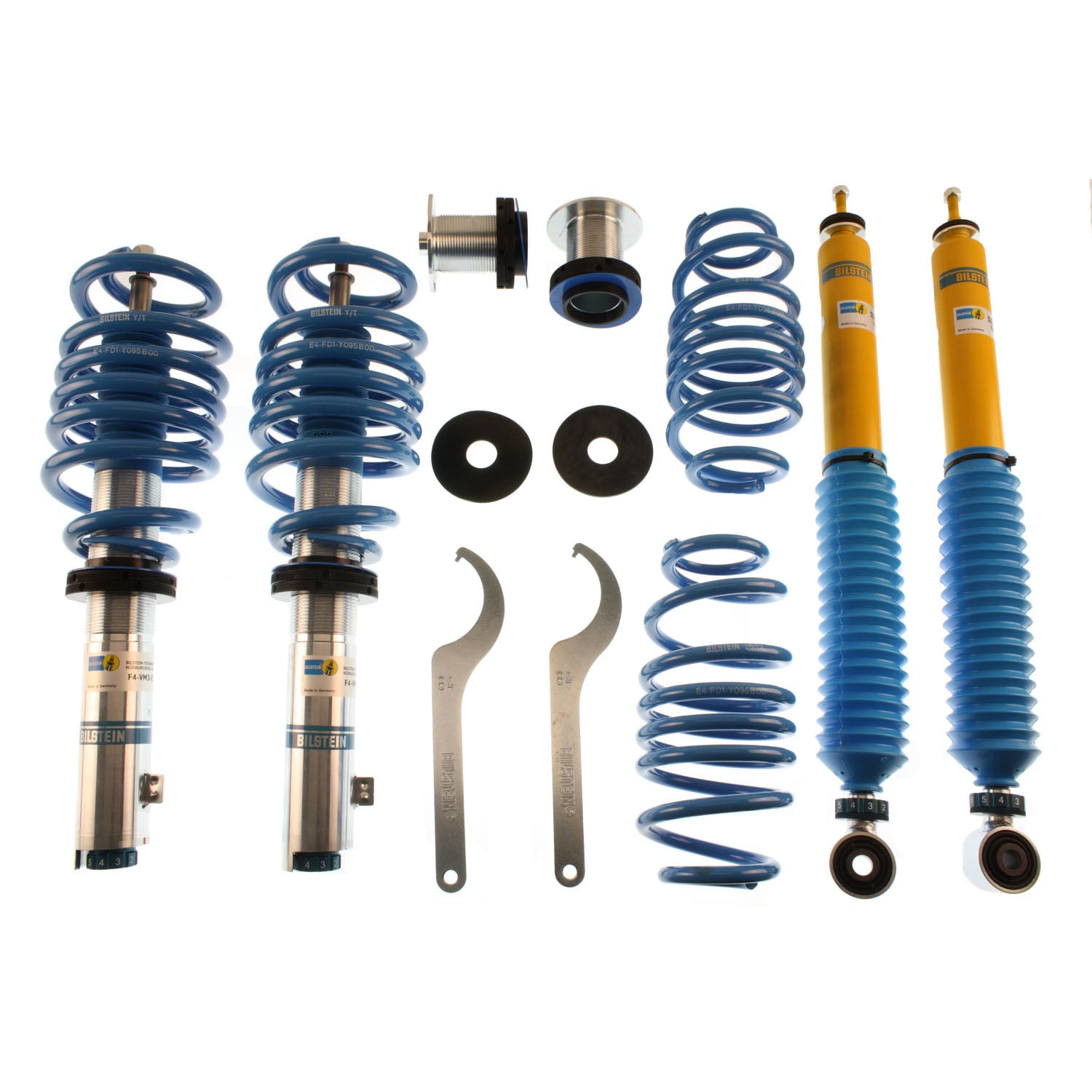

Bilstein B16 (PSS10) suspension kits feature ride height adjustability with 10-stage manually adjustable dampers in an OE quality, direct fit package. The 10-stage damping system adjusts both rebound and compression with each click to provide the best handling performance in any condition. These kits offer monotube performance dampers with matched springs that are tuned for each specific application. The zinc coated and threaded body design will give you the flexibility to find the perfect ride height setting for your intended use while providing unsurpassed protection against the harshest road elements. B16 (PSS10) suspension kits are made in Germany and feature technology tested on the famed Nürburgring.

• Quick and easy damping level adjustment
• Threaded body allows lowering of approximately 30mm to 50mm
• Tested by our engineers under motorsport conditions

Vehicle Specific

• Audi A4 2009-2016, A4 Quattro 2009-2016, A5 2010-2014, A5 Quattro 2008-2017, RS5 2013-2015, S4 2010-2016, S5 2008-2017

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860601694
• Finish: Dampers: Zinc Plated Front Yellow Rear/Springs: Blue
• Front Main Spring Rate (lbs/in): 566
• Front Main Spring Type: Linear
• Front Tender Spring Rate (lbs/in): N/A
• Internal Design: Monotube
• PartType: Suspension Kit
• Rear Main Spring Rate (lbs/in): 285
• Rear Main Spring Type: Linear
• Rear Tender Spring Rate (lbs/in): N/A
• Segment: Tuning
• Series: B16 (PSS10)

Extended Information:

• Country of Origin: DE
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 30.3000 x 11.0000 x 8.3000 inches
• Weight: 62.4600 POUNDS
