Bilstein Shock Absorbers

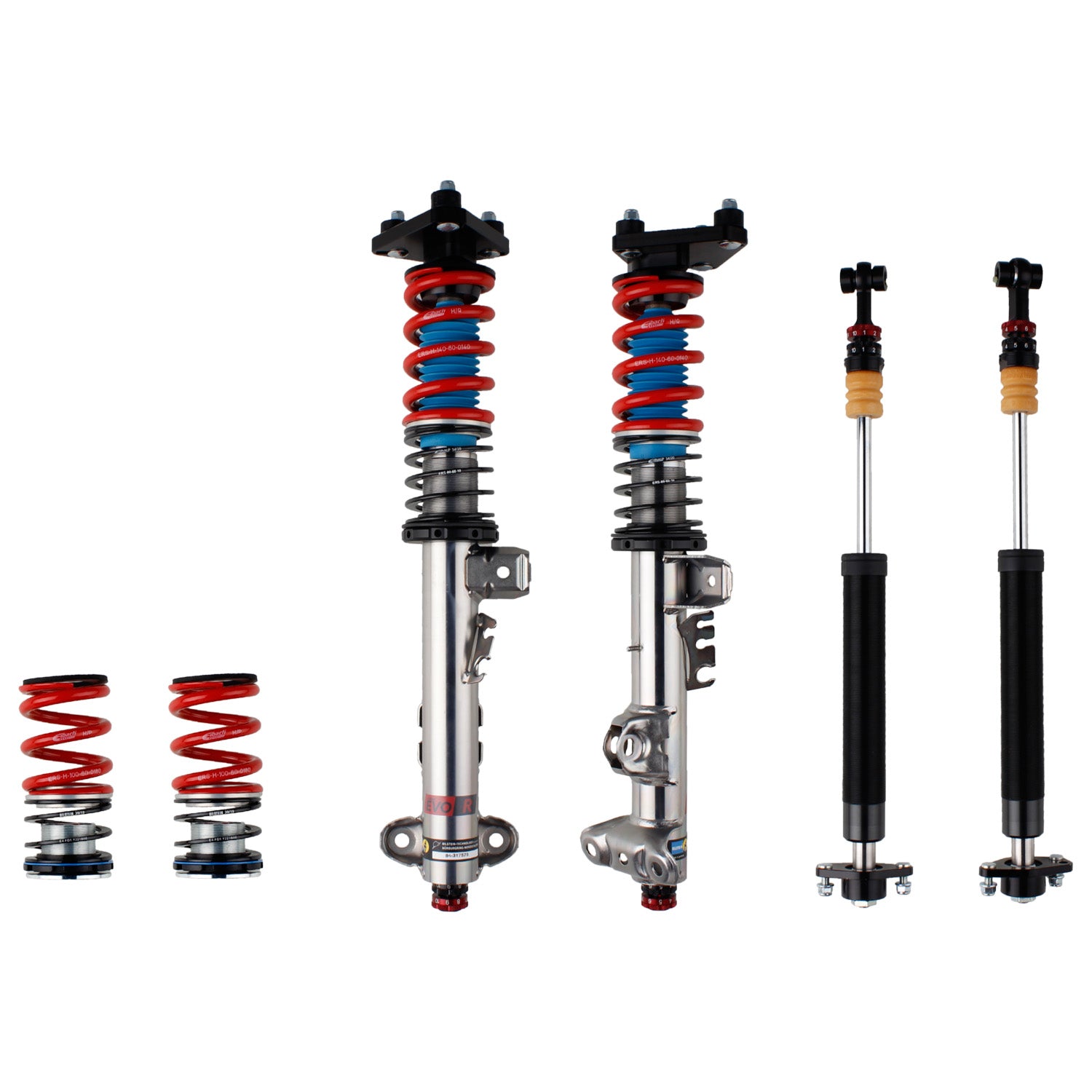

Bilstein EVO R is the next step in the evolution of performance suspension tuning. EVO R is a coilover kit built and tuned specifically for the demanding conditions of motorsports. Featuring 2-way manually adjustable dampers and monoball mounting equipment. The 2-way independent compression and rebound adjustment system provides 100 different setting variations for precision adjustment. Where applicable, adjustable monoball upper mounts allow for adjustment to camber settings. Monotube damper construction and high quality components provide consistent performance under the most demanding motorsports conditions. Proven performance, reliability and exceptional versatility is achieved to provide the ultimate performance coilover setup. Bilstein EVO R suspension kits are designed and hand built in Germany to each specific application. EVO R coilovers feature technology and tuning knowledge acquired from Bilstein’s experience conquering the Nürburgring.

• Aluminum and lightweight construction – for more stability, faster cornering and quicker laps
• Aluminum adjusters are easy-to-read and scale from 1 (soft) to 10 (hard)
• Two totaly personalized aluminum dials offer 100 possible damper settings – 10x10 Pro-Click adjustment lets you define rebound and bump separately and confidently for a completely personalized damper setup

Vehicle Specific

• BMW 318i 1992-1998, 318is 1992-1997, 323i 1999, 323is 1998-1999, 325i 1992-1995, 325is 1992-1995, 328i 1996-1999, 328is 1996-1999

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860878317
• Finish: Dampers: Grey/Springs: Red
• Front Main Spring Rate (lbs/in): 800
• Front Main Spring Type: Linear
• Front Tender Spring Rate (lbs/in): 57
• Internal Design: Monotube
• PartType: Suspension Kit
• Rear Main Spring Rate (lbs/in): 1027
• Rear Main Spring Type: Linear
• Rear Tender Spring Rate (lbs/in): 114
• Segment: Tuning
• Series: EVO R

Extended Information:

• Country of Origin: DE
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 30.3000 x 11.0000 x 8.3000 inches
• Weight: 49.6500 POUNDS
