Bilstein Shock Absorbers

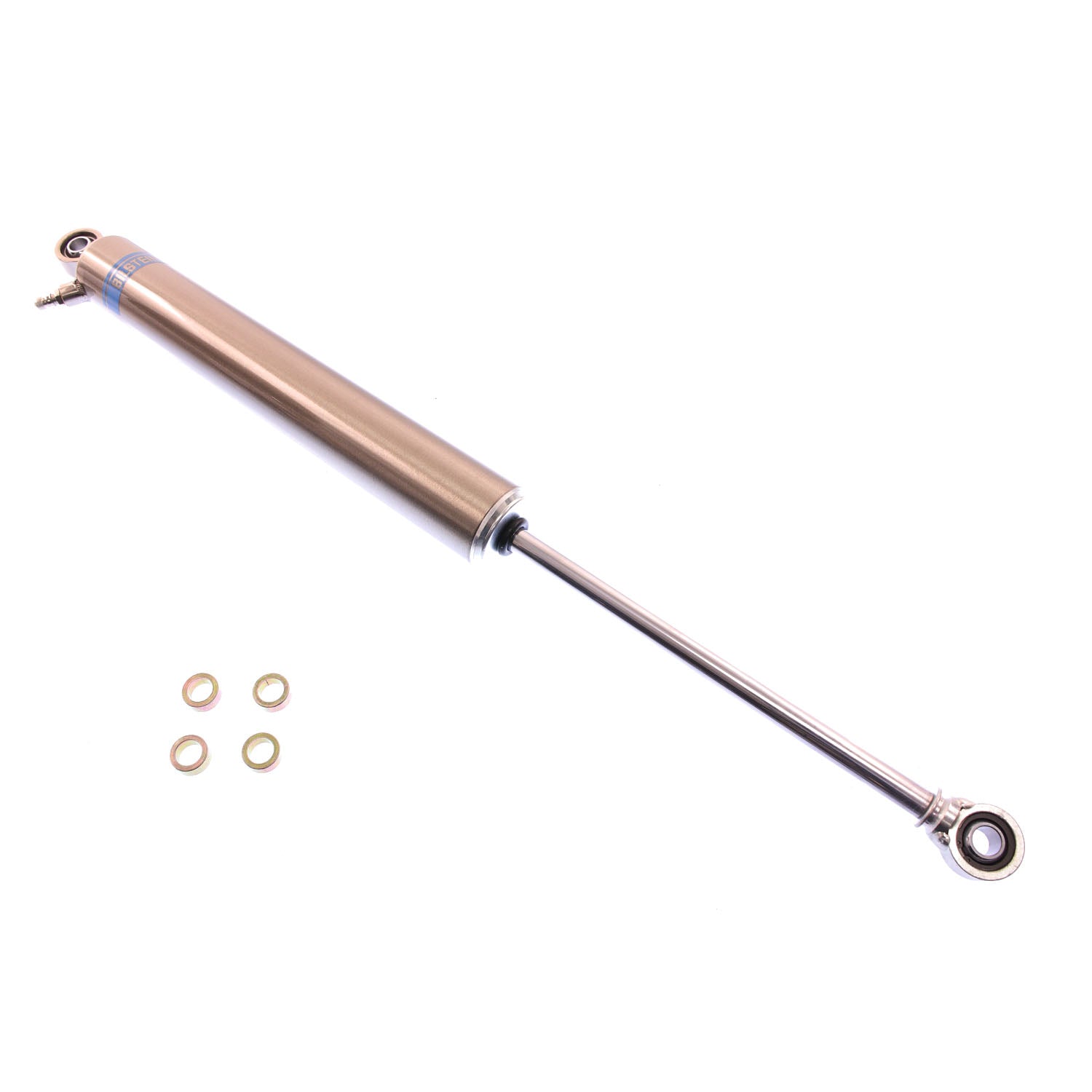

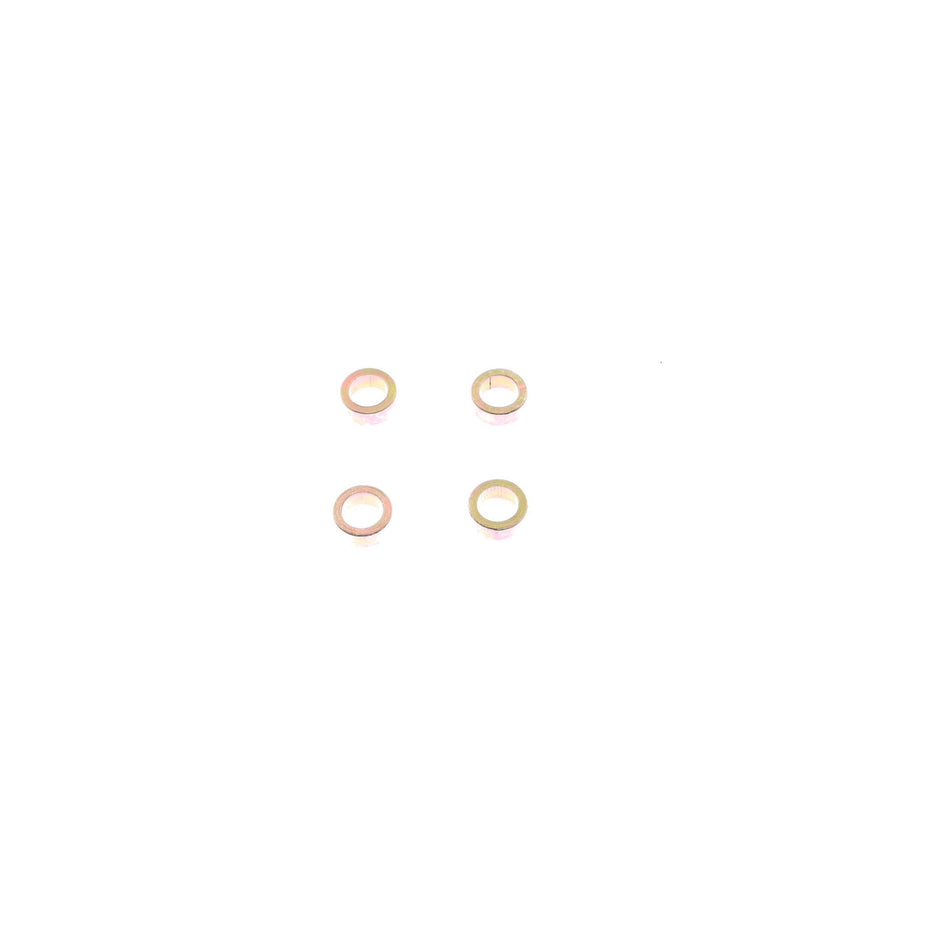

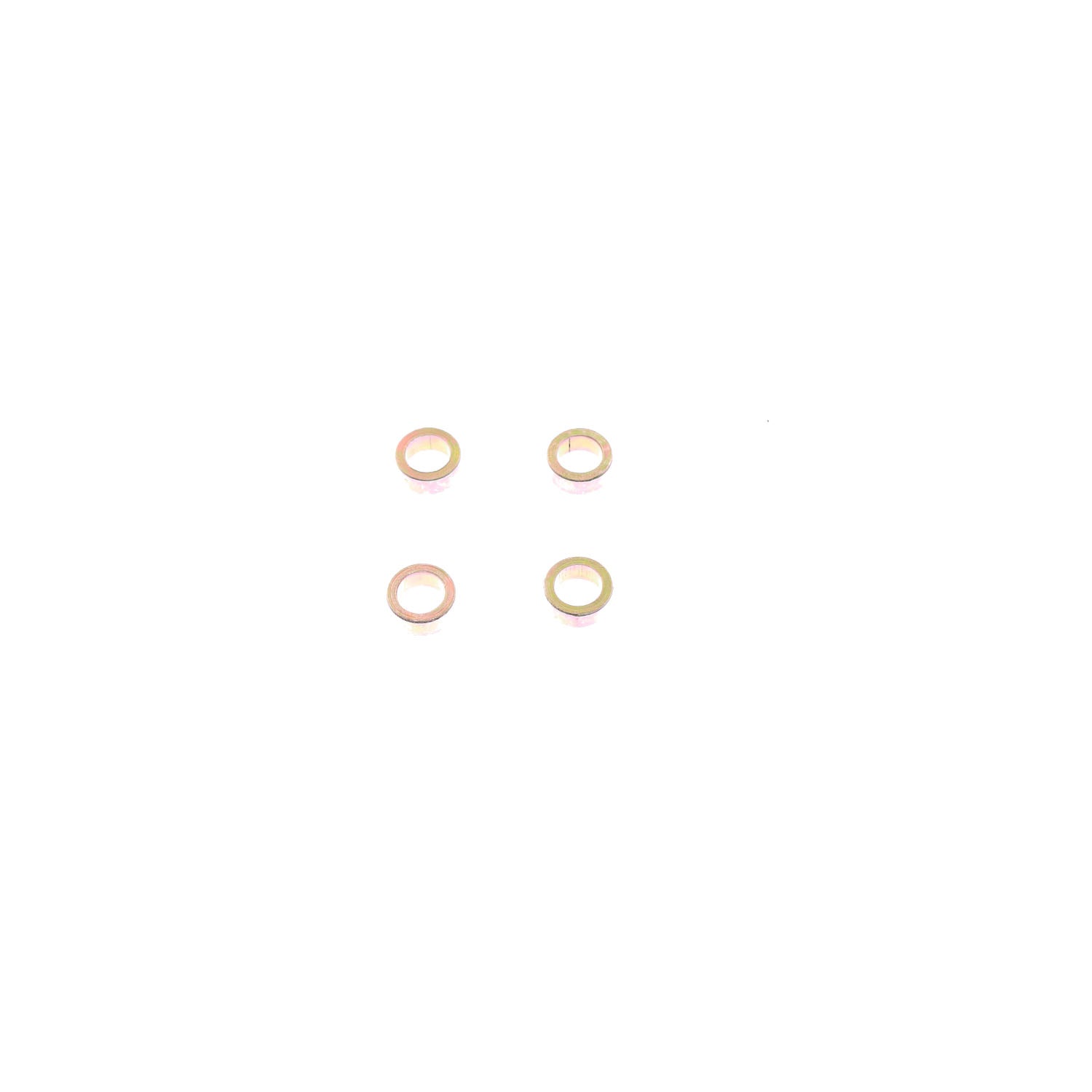

Bilstein M 7100 shock absorbers are designed for custom off-road motorsports and recreational applications. These shock absorbers are owner rebuildable and are available in remote reservoir or non-reservoir configurations. Each shock absorber is supplied with ½ inch heims and misalignment spacers for maximum durability in off-road conditions. M 7100 shock absorbers are available in a wide array of lengths and valve settings. Service components for M 7100 shock absorbers are readily available and sold separately. M 7100 shock absorbers will offer reliable performance that is customizable to meet specific demands.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
• High-flow piston reduces harshness

Vehicle Specific

• No Applications

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860957593
• Body Design: Smooth Body (Non-Coilover)
• Collapsed Length (IN): 16.10
• Collapsed Length (MM): 408.9
• Compression @0.52m/s: 780
• Extended Length (IN): 25.77
• Extended Length (MM): 654.6
• Finish: Nickel Plated with Clear Powder Coat
• Internal Design: Monotube
• Lower Mount Type: 1/2in Heim
• Mount Type: Eye-to-Eye
• Optional Reservoir Clamp: N/A
• PartType: Shocks / Struts
• Piston Diameter: 46mm
• Rebound @0.52m/s: 2750
• Reservoir: No
• Segment: Motorsports
• Series: M 7100
• Shaft Diameter (mm): 14.0
• Spring Seat Included: No
• Stroke/Travel Length (IN): 9.67
• Stroke/Travel Length (mm): 245.6
• Upper Mount Type: 1/2in Heim

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 37.0000 x 7.0000 x 2.0000 inches
• Weight: 5.2900 POUNDS
