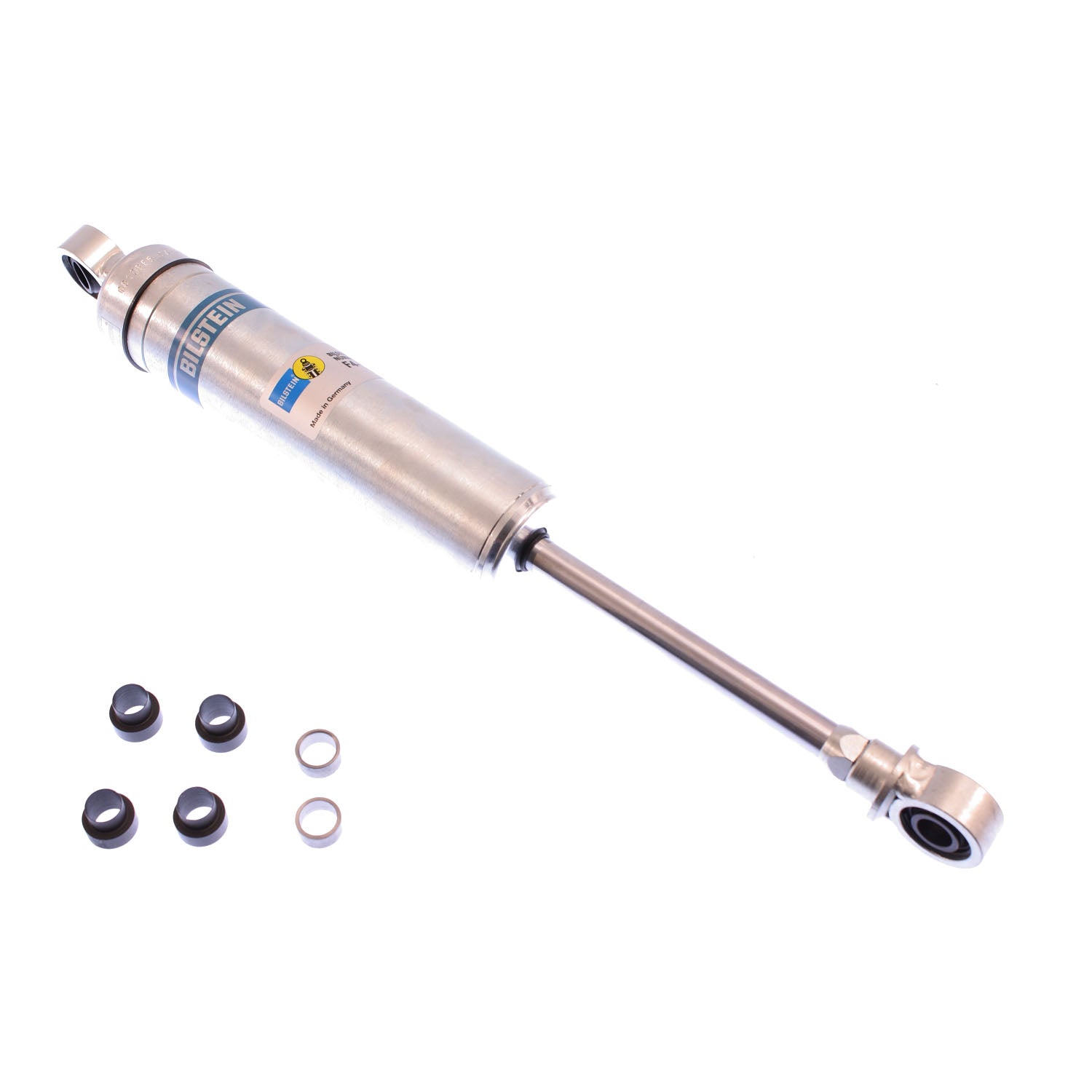

Bilstein Shock Absorbers

Bilstein M 7100 Classic shock absorbers are the most successful shock absorbers in off-road racing history. Since their inception in the early 70's, these 46mm monotube shock absorbers are equipped on more winning off-road cars and trucks than any other shock absorber. Today, the M 7100 Classic shock absorbers are perfect for meeting the demands of vintage off road race cars and VW based off-road recreational vehicles. Withstanding the test of time, the M 7100 Classic shock absorber will deliver period correct performance.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Available for standard and coilover applications in a wide variety of lengths
• Self-adjusting deflective disc valving

Vehicle Specific

• No Applications

Attributes:

• Brand Name: Bilstein
• GTIN: 00790832511873
• Body Design: Smooth Body (Coilover)
• Collapsed Length (IN): 11.24
• Collapsed Length (MM): 285.5
• Compression @0.52m/s: 1600
• Extended Length (IN): 16.24
• Extended Length (MM): 412.5
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: 1/2in Heim
• Mount Type: Eye-to-Eye
• Optional Reservoir Clamp: N/A
• PartType: Shocks / Struts
• Piston Diameter: 46mm
• Rebound @0.52m/s: 3500
• Reservoir: No
• Segment: Motorsports
• Series: M 7100 Classic
• Shaft Diameter (mm): 14.0
• Spring Seat Included: No
• Stroke/Travel Length (IN): 5.00
• Stroke/Travel Length (mm): 127.0
• Upper Mount Type: 1/2in Heim

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 21.4500 x 2.9500 x 2.9500 inches
• Weight: 3.6600 POUNDS
