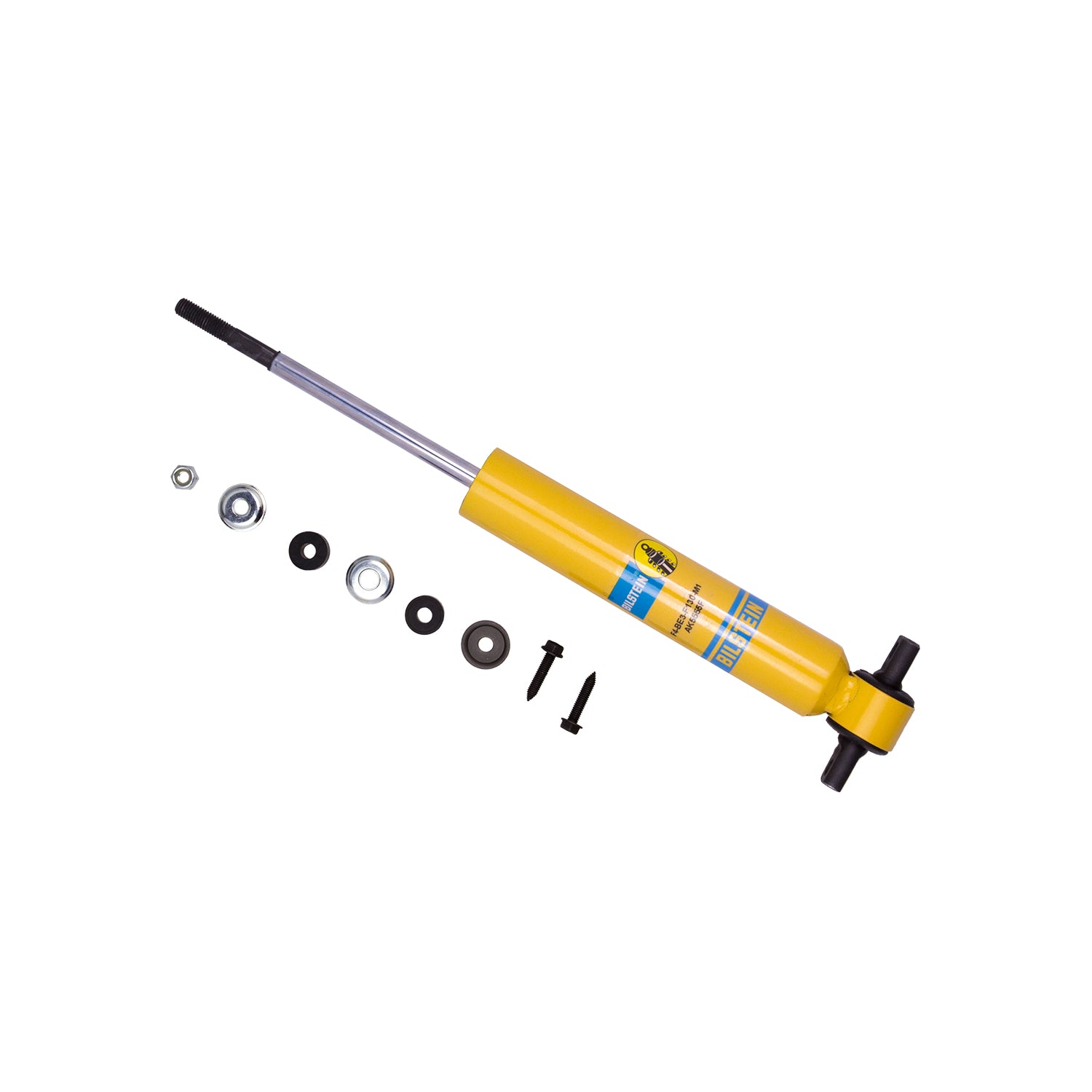

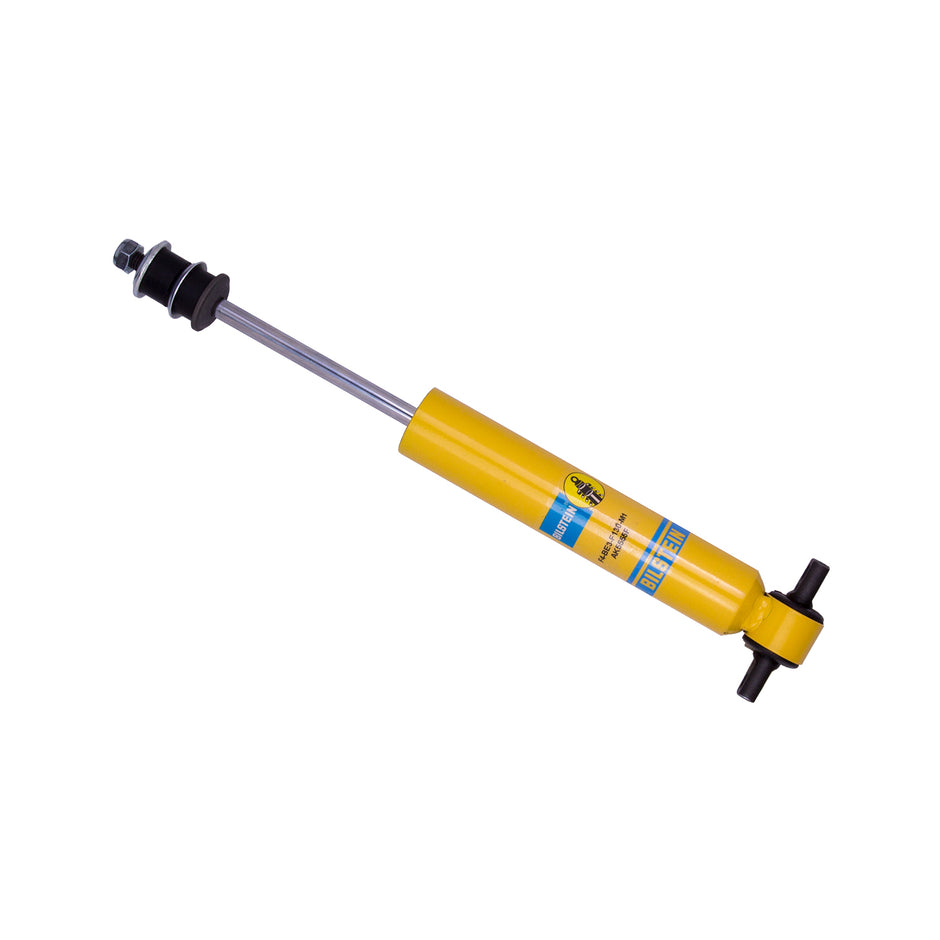

Bilstein Shock Absorbers

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

• Monotube design ensures consistent, fade-free performance in all conditions
• Direct fit (OE) mounting design
• Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions

Vehicle Specific

• No Applications

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860751863
• Adjustable Damping: Non-Adjustable
• Body Design: Stock Mount Smooth Body
• Body Material: Steel
• Boot Included: No
• Collapsed Length (IN): 8.73
• Collapsed Length (MM): 221.8
• Compression @0.26m/s: 875
• Extended Length (IN): 13.46
• Extended Length (MM): 342.0
• Finish: Yellow Paint
• Internal Design: Monotube
• Lower Mount Type: Bar Pin
• PartType: Shocks / Struts
• Piston Diameter: 36mm
• Piston Type: Digressive
• Rebound @0.26m/s: 1395
• Segment: Motorsports
• Series: AK Series
• Shaft Diameter: 11mm
• Spring Seat Included: No
• Stroke/Travel Length (IN): 4.73
• Stroke/Travel Length (mm): 120.1
• Upper Mount Type: Stem

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 22.4500 x 2.9500 x 2.9500 inches
• Weight: 2.5600 POUNDS
