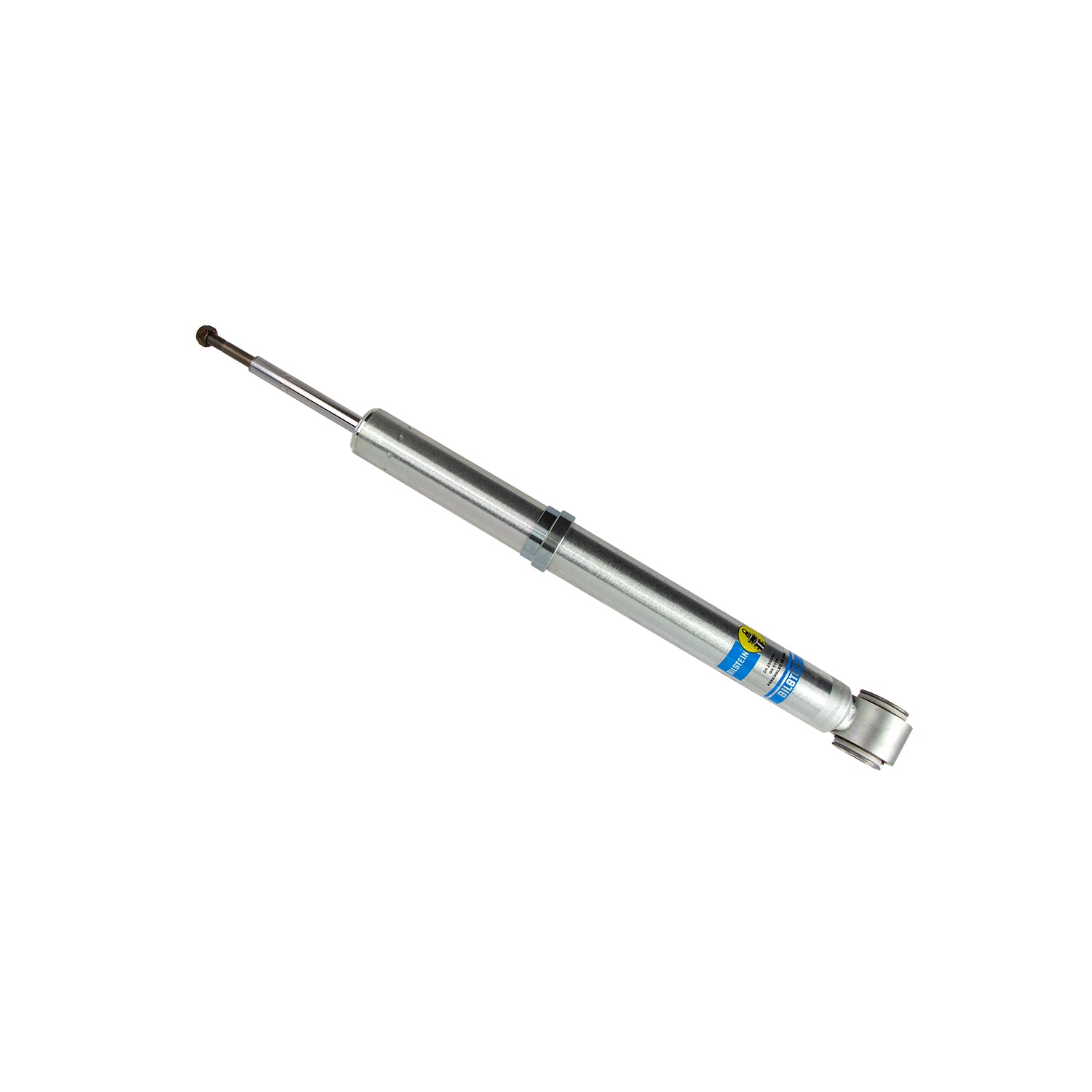

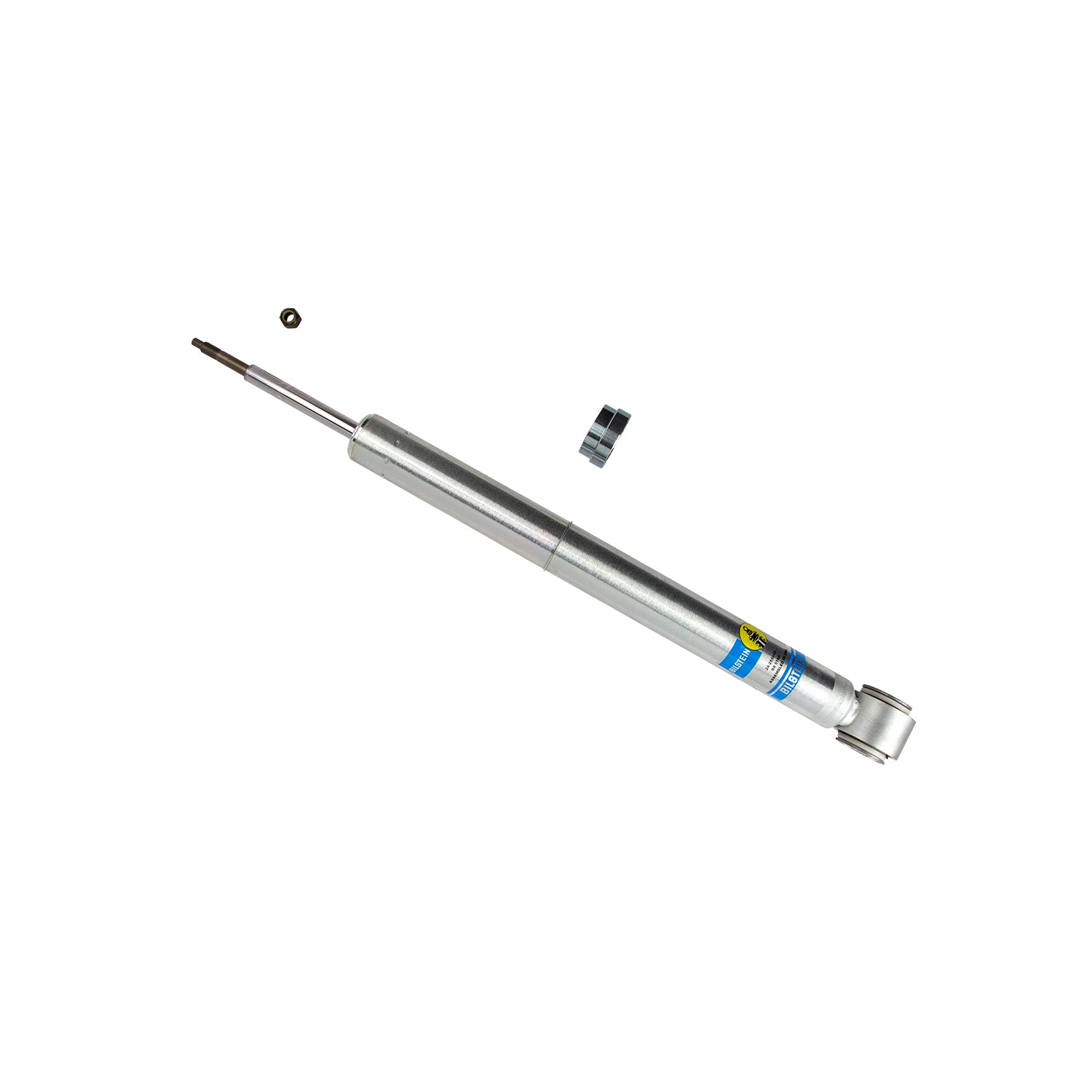

Bilstein Shock Absorbers

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860808024
• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body (Non-coilover)
• Boot Included: No
• Collapsed Length (IN): 21.93
• Collapsed Length (MM): 557.0
• Extended Length (IN): 26.83
• Extended Length (MM): 681.5
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 20.3mm
• PartType: Shocks / Struts
• Piston Diameter: 46mm
• Reservoir: No
• Segment: Light Truck
• Series: B8 5100
• Shaft Diameter: 18mm
• Spring Seat Included: No
• Stroke/Travel Length (IN): 4.65
• Stroke/Travel Length (mm): 118.1
• Upper Mount Type: Stem

Extended Information:

• Country of Origin: MX
• Emissions : 4

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 29.9500 x 3.5500 x 3.5500 inches
• Weight: 7.7000 POUNDS
