Bilstein Shock Absorbers

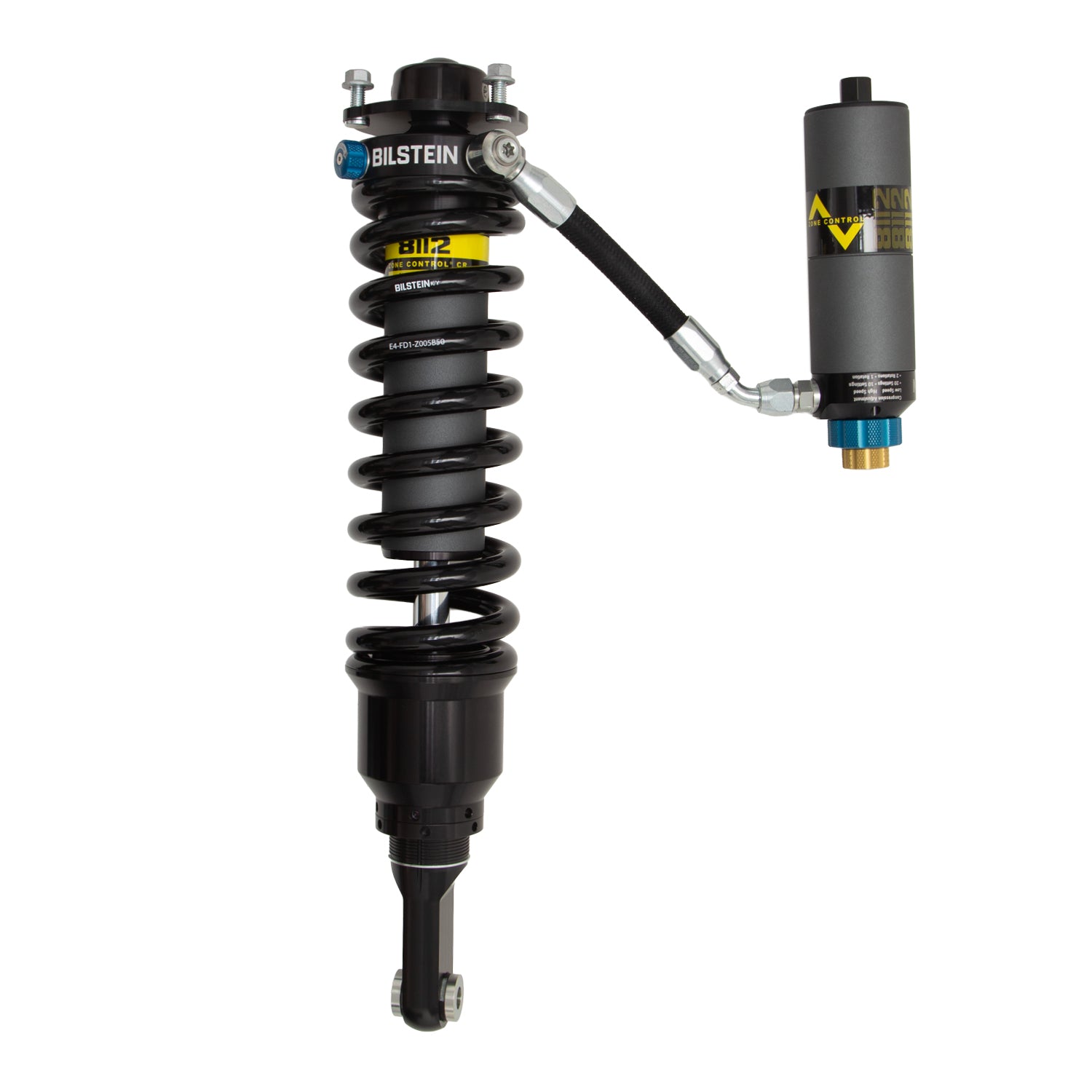

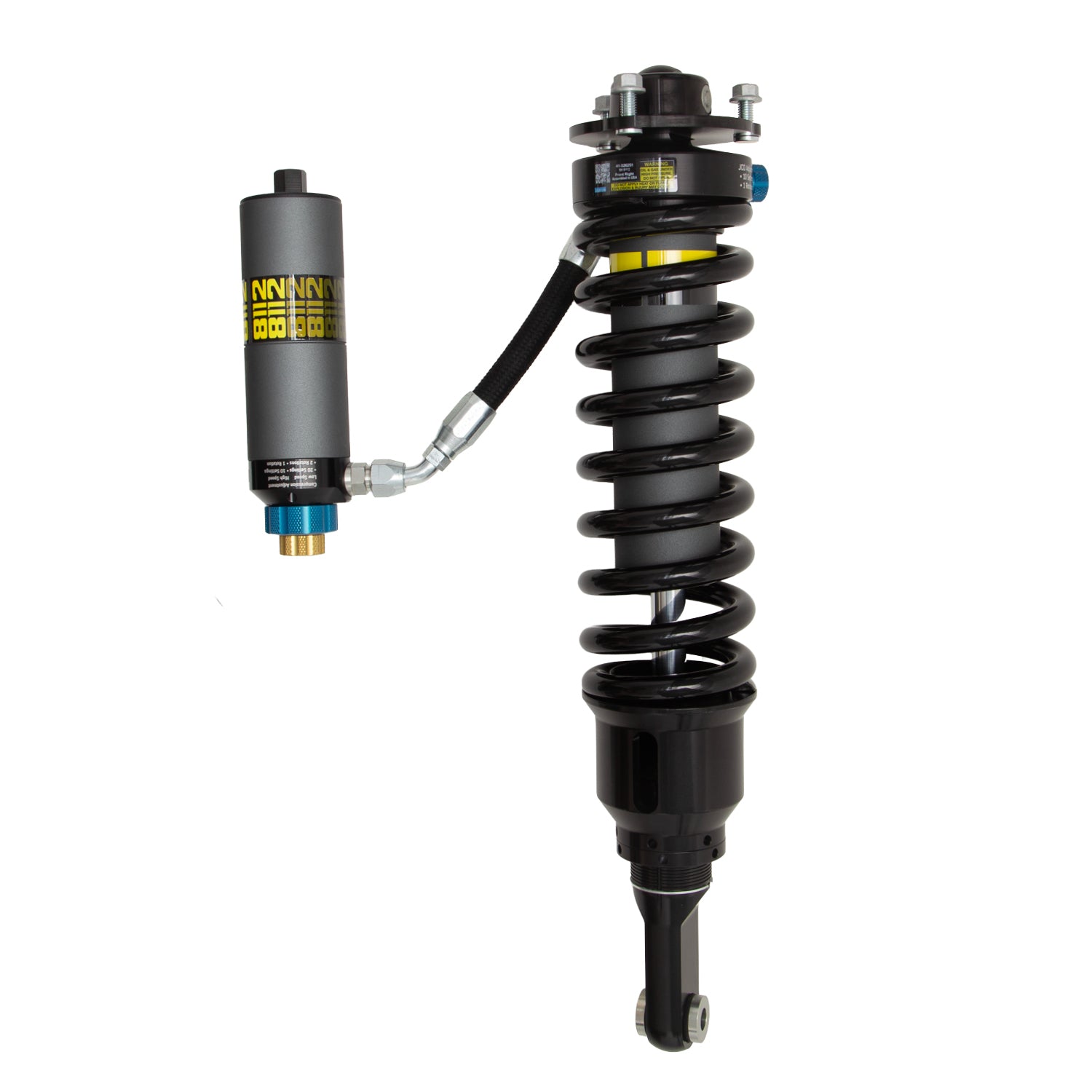

Bilstein B8 8112 (ZoneControl CR DSA+) is a direct fit, 3-way adjustable, 2.65-in body, position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR DSA+ is a revolutionary technology delivering position sensitive damping plus user Dual Speed Adjustability. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop). The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3” (depending on application). It is supplied with a remote reservoir for increased cooling along with an accompanied, bolt-on anodized reservoir chassis mount. Bilstein B8 8112 (ZoneControl CR DSA+) position sensitive Dual Speed Adjustable coilovers offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs with the ability to quickly adjust the shock to tackle any terrain.

• ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
• Click adjuster knobs allow easy and precise Dual Speed Adjustment of both low and high speed compression plus an adjustable JCO (internal hydraulic bump stop)
• 60mm remote reservoir for increased oil capacity and cooling

Vehicle Specific

• Lexus GX460 2010-2023, Toyota 4Runner 2010-2024

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860956237
• Adjustable Damping: Click Adjusters for High and Low Speed Compression plus internal Bump Stop (JCO)
• Body Design: Smooth Body (Coilover)
• Body Material: Steel
• Boot Included: No
• Collapsed Length (IN): 17.43
• Collapsed Length (mm): 442.6
• Extended Length (IN): 22.24
• Extended Length (mm): 564.8
• Finish: Dampers: EVO Grey/Springs: Black
• Front Main Spring Rate (lbs/in): 600
• Internal Design: Monotube
• Lower Mount Type: Eye 14.1mm
• PartType: Shocks / Struts
• Piston Diameter: 60mm
• Reservoir: Yes
• Segment: Light Truck
• Series: B8 8112 (ZoneControl CR DSA+)
• Shaft Diameter (mm): 22.0
• Spring Seat Included: Yes
• Upper Mount Type: Special

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 33.5000 x 11.8800 x 8.8800 inches
• Weight: 38.6500 POUNDS
