Bilstein Shock Absorbers

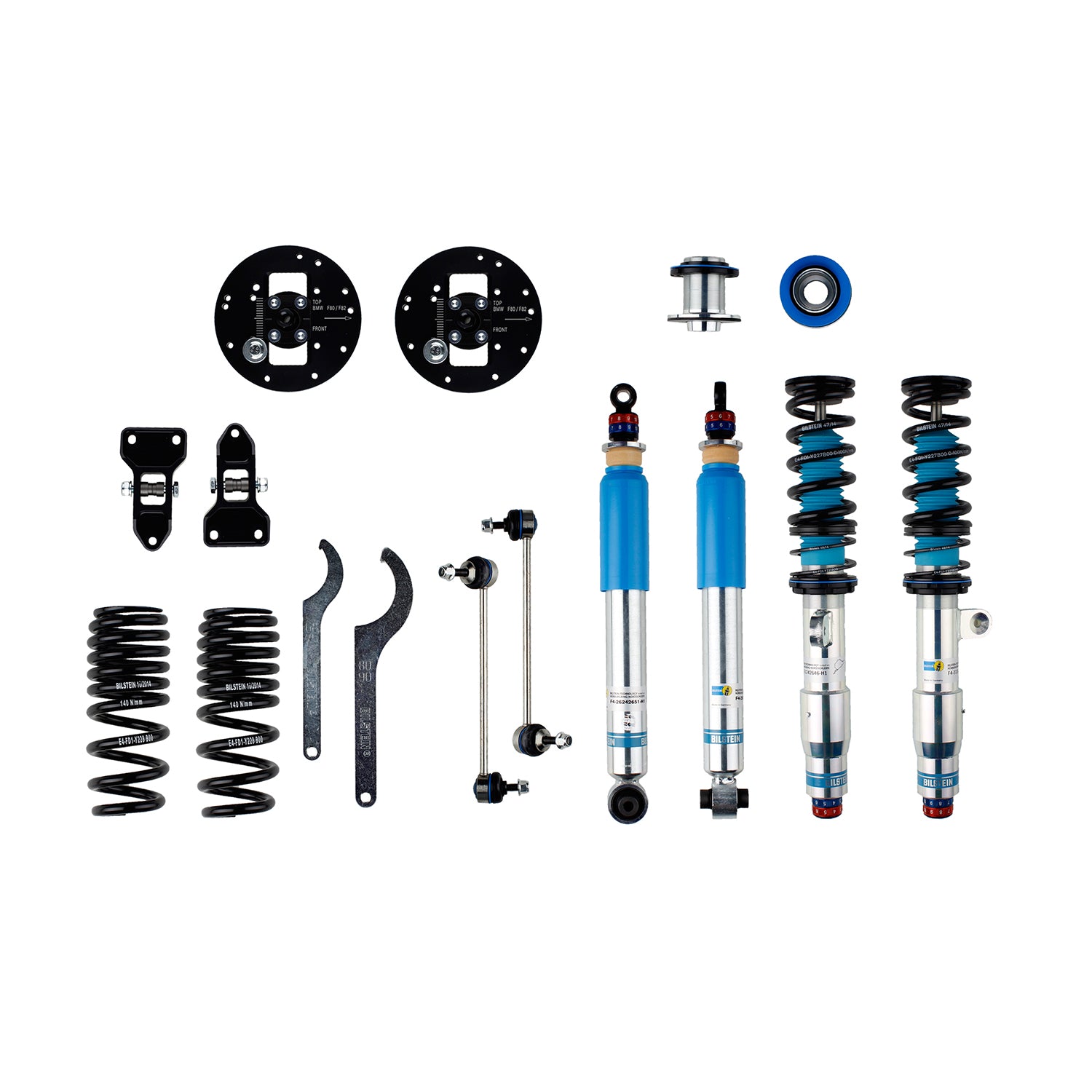

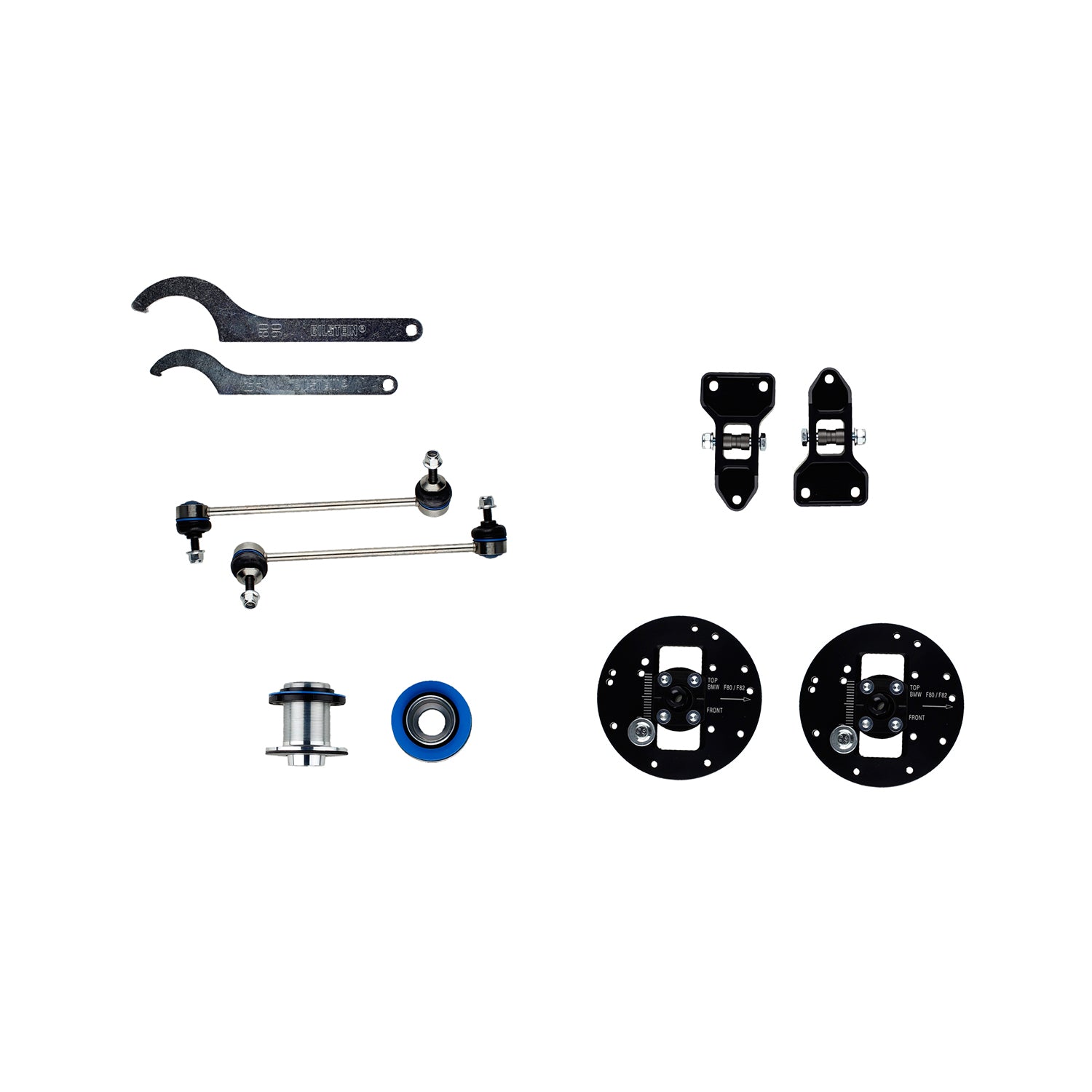

Bilstein Clubsport suspension kits feature ride height adjustability with 2-way manually adjustable dampers in an OE quality, direct fit package. The 2-way independent rebound and compression adjustment features 10-stages each, providing up to 100 different settings for the ultimate in handling performance under any condition. The adjustable monoball upper mounts allow the user to change camber settings to suit any road, condition or driver preference. These kits offer monotube performance dampers with matched springs that are tuned for each specific application. The zinc coated and threaded body design will give you the flexibility to find the perfect ride height setting for your intended use while providing unsurpassed protection against the harshest road elements. Bilstein Clubsport suspension kits are made in Germany and tested under motorsports conditions on the famed Nürburgring.

• Separate configurations for rebound and compression: Red for rebound, blue for compression
• 100 setting variations that can be manually selected and experienced with tangible differences
• Aluminum adjusters are easy-to-read and scale from 1 (soft) to 10 (hard)

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860795706
• Finish: Dampers: Zinc Plated/Springs: Black
• Front Main Spring Rate (lbs/in): 571
• Front Main Spring Type: Linear
• Front Tender Spring Rate (lbs/in): 114
• Internal Design: Monotube
• PartType: Suspension Kit
• Rear Main Spring Rate (lbs/in): 800
• Rear Main Spring Type: Progressive
• Rear Tender Spring Rate (lbs/in): N/A
• Segment: Tuning
• Series: Bilstein Clubsport

Extended Information:

• Country of Origin: DE
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 30.3000 x 11.0000 x 11.8000 inches
• Weight: 64.5100 POUNDS
