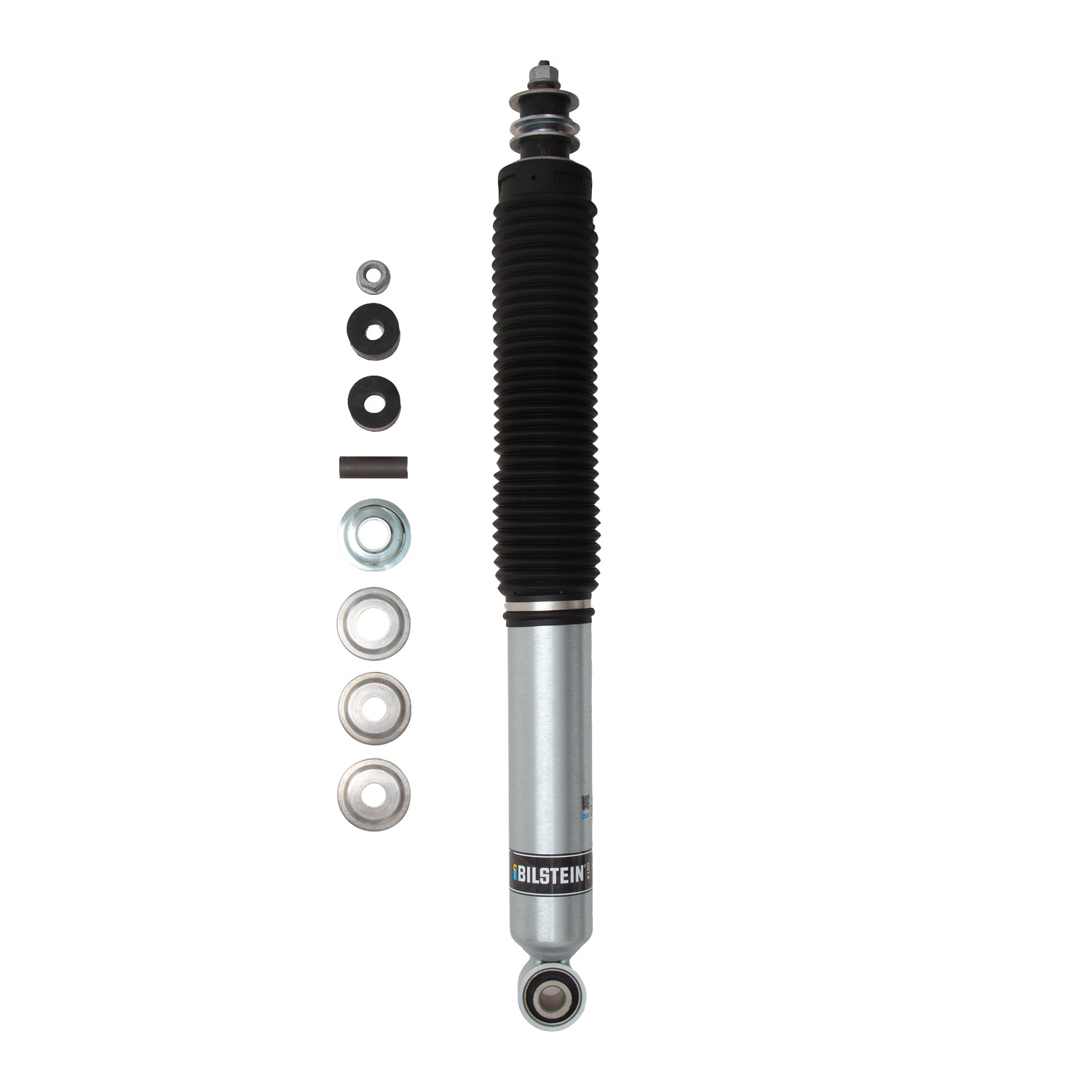

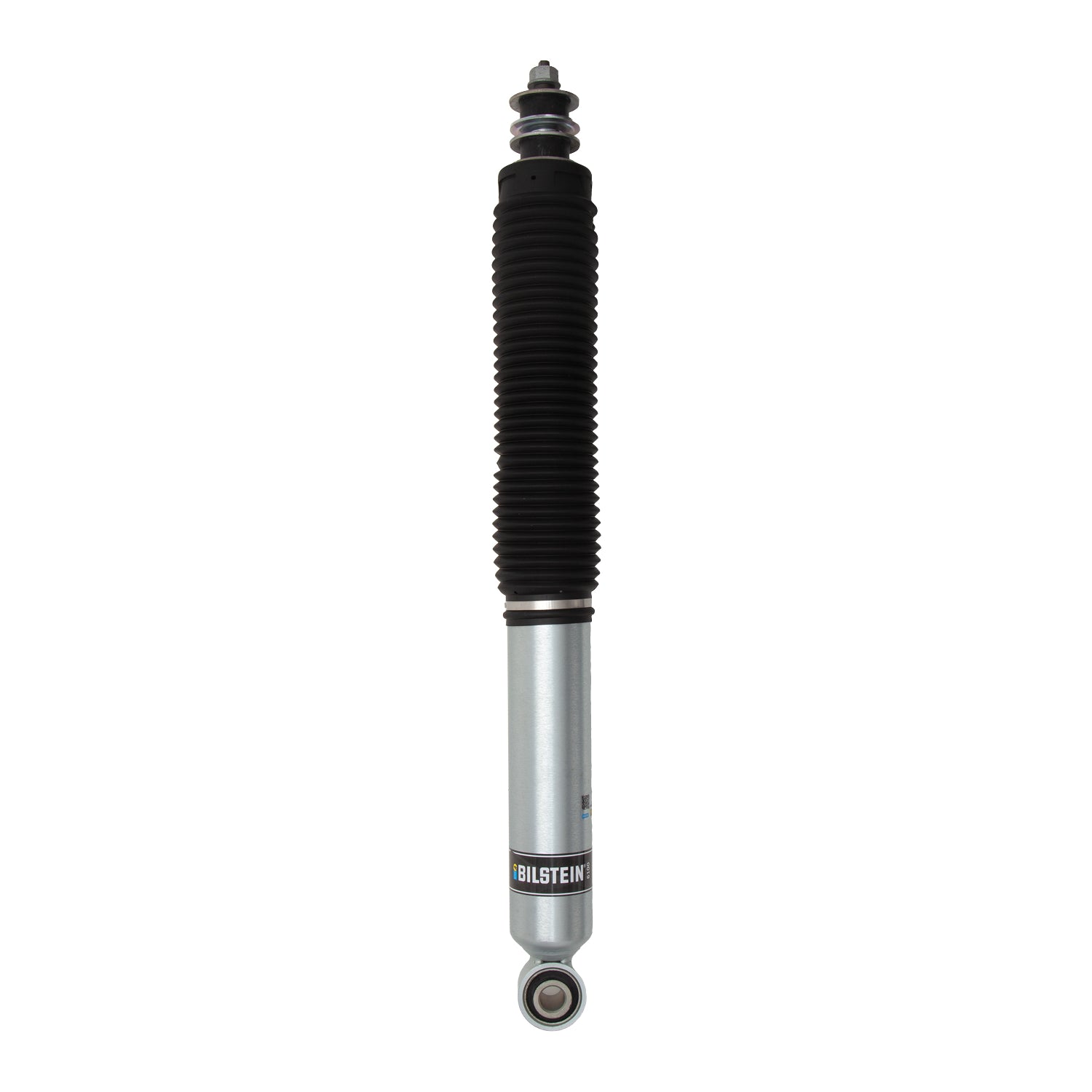

Bilstein Shock Absorbers

Bilstein B8 6100 shock absorbers are filled with the technology perfected over 3 decades of off-road dominance. Bilstein's monotube gas pressure design with a large 2.65-in OD body and 60mm digressive piston maximizes heat dissipation for increased shock life, and decreases oil foaming to prevent performance loss while providing a smoother ride and more control over rough terrain. The B8 6100 will provide increased durability, making them perfect for vehicles subjected to rugged roads and harsh conditions.

• Large 60mm body for increased oil capacity, cooling, and long-term durability
• 60mm digressive piston improves ride comfort and control over rough terrain
• Vehicle specific tuning

Vehicle Specific

• Toyota Tacoma 2024-2026

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860955070
• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body (Non-coilover)
• Boot Included: Black Bellows
• Collapsed Length (IN): 16.55
• Collapsed Length (mm): 420.4
• Extended Length (IN): 25.56
• Extended Length (mm): 649.2
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 19.1mm
• PartType: Shocks / Struts
• Piston Diameter: 60mm
• Reservoir: No
• Segment: Light Truck
• Series: B8 6100
• Shaft Diameter: 18mm
• Spring Seat Included: Yes
• Stroke/Travel Length (IN): 9.01
• Stroke/Travel Length (mm): 228.9
• Upper Mount Type: Stem

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 4.1500 x 4.1500 inches
• Weight: 10.5500 POUNDS
