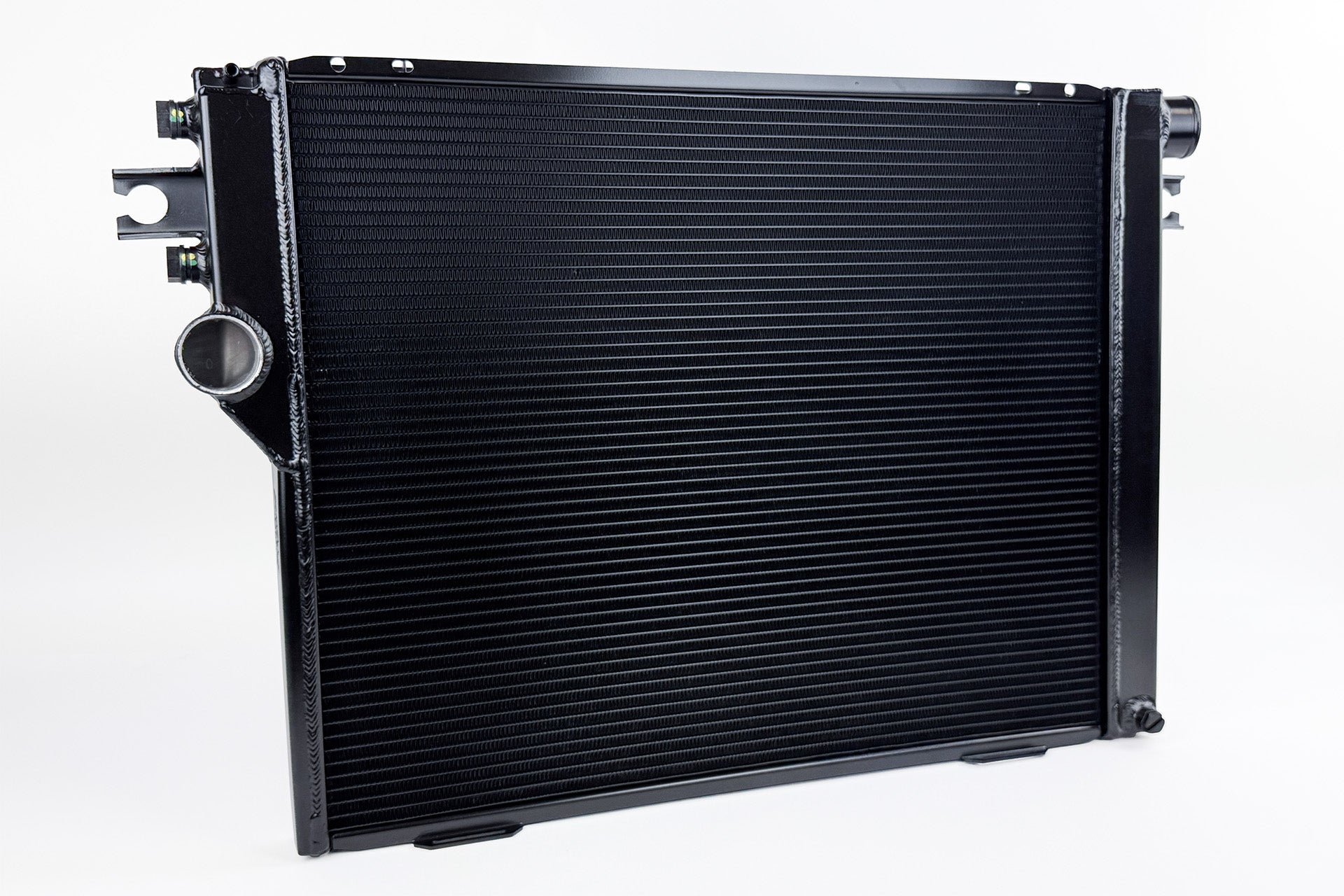

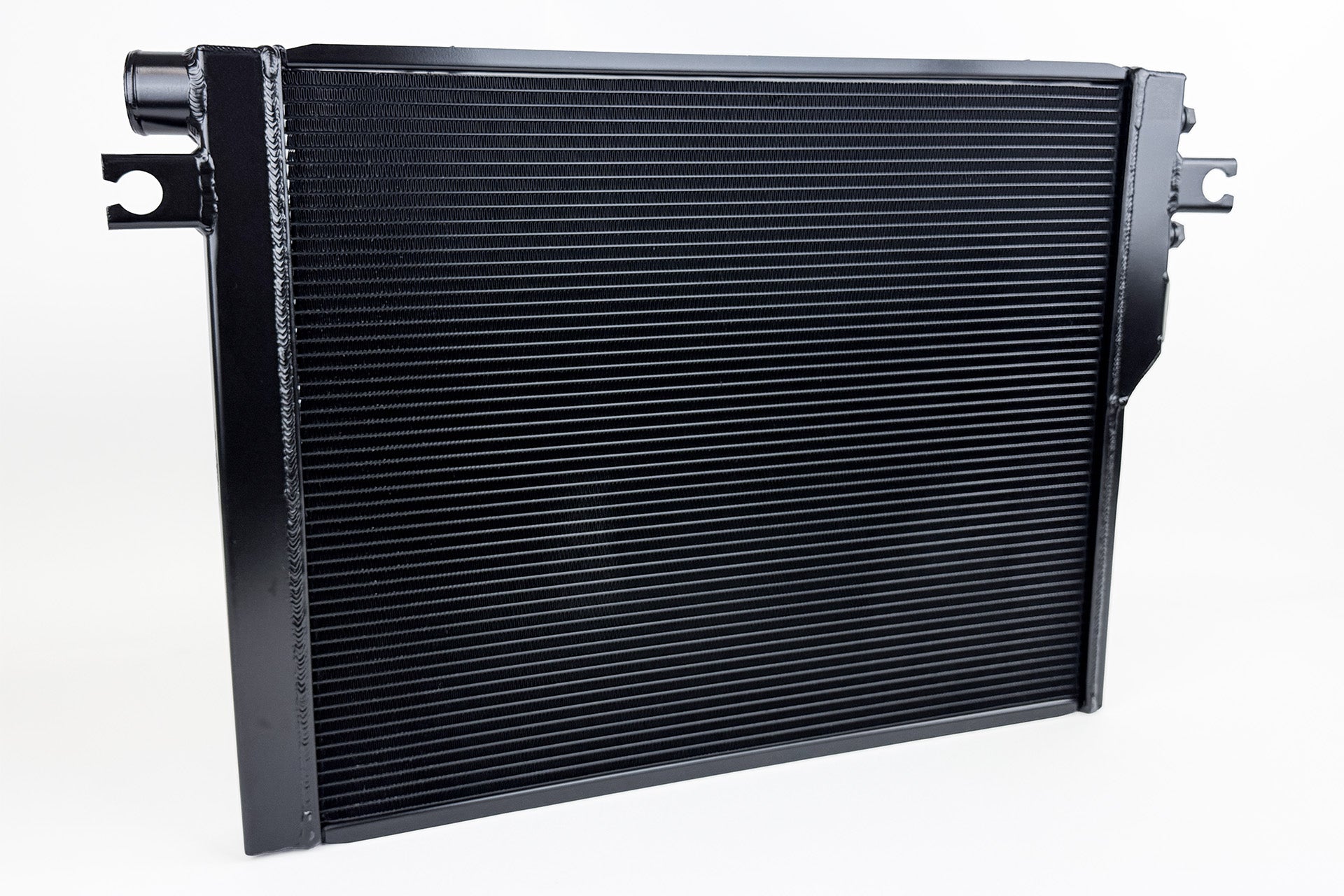

BMW E28 M5 / E24 M6/635CSi High-Performance All-Aluminum Radiator

Those familiar with the radiator on the E28 M5 and E24 M6 know that the factory radiator does not come with a drain plug. While this isn't the end of the world, it's definitely a nice thing to have if you're going to do a coolant flush, pull the engine out, etc.

• 1-Row, 31mm Ultra-High-Performance Core
• 2-Year Limited Warranty
• Cooling Tubes with CSF's Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• 100% All Aluminum TIG-Welded Construction
• Satin Black Finish for an OEM+ Look and Feel
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Two M14x1.5 Temperature Sensor Ports on left side tank (Plugs Included)
• Individually Leak and Pressure Tested

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353072325
• Coolant Hose Inlet Connection Type: OE Type Connection
• Coolant Hose Outlet Connection Type: OE Type Connection
• Core Height: 575mm
• Core Material: Aluminum
• Core Row Quantity: 1
• Core Thickness: 31mm
• Core Width: 457mm
• Down Flow Or Cross Flow Type: Cross Flow
• Finish/Color: Black
• Frame Included: No
• Grade Type: Performance
• Inlet Connector Type: Slip On
• Inlet Diameter: 44.5mm
• Inlet Location: Top Right
• Installation Type: Drop-In Fit Installation
• Internal Engine Oil Cooler: No
• Internal Transmission Oil Cooler: No
• Mounting Hardware Included: No
• Mounting Type: Mounts with OE Hardware
• Outlet Connector Type: Slip On
• Outlet Diameter: 44.5mm
• Outlet Location: Center Left
• Radiator Cap Included: No
• Tank Material: Aluminum
• Thermostat Included: No

Extended Information:

• Country of Origin: ID
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 32 x 23 x 5 inches
• Weight: 15 POUNDS
