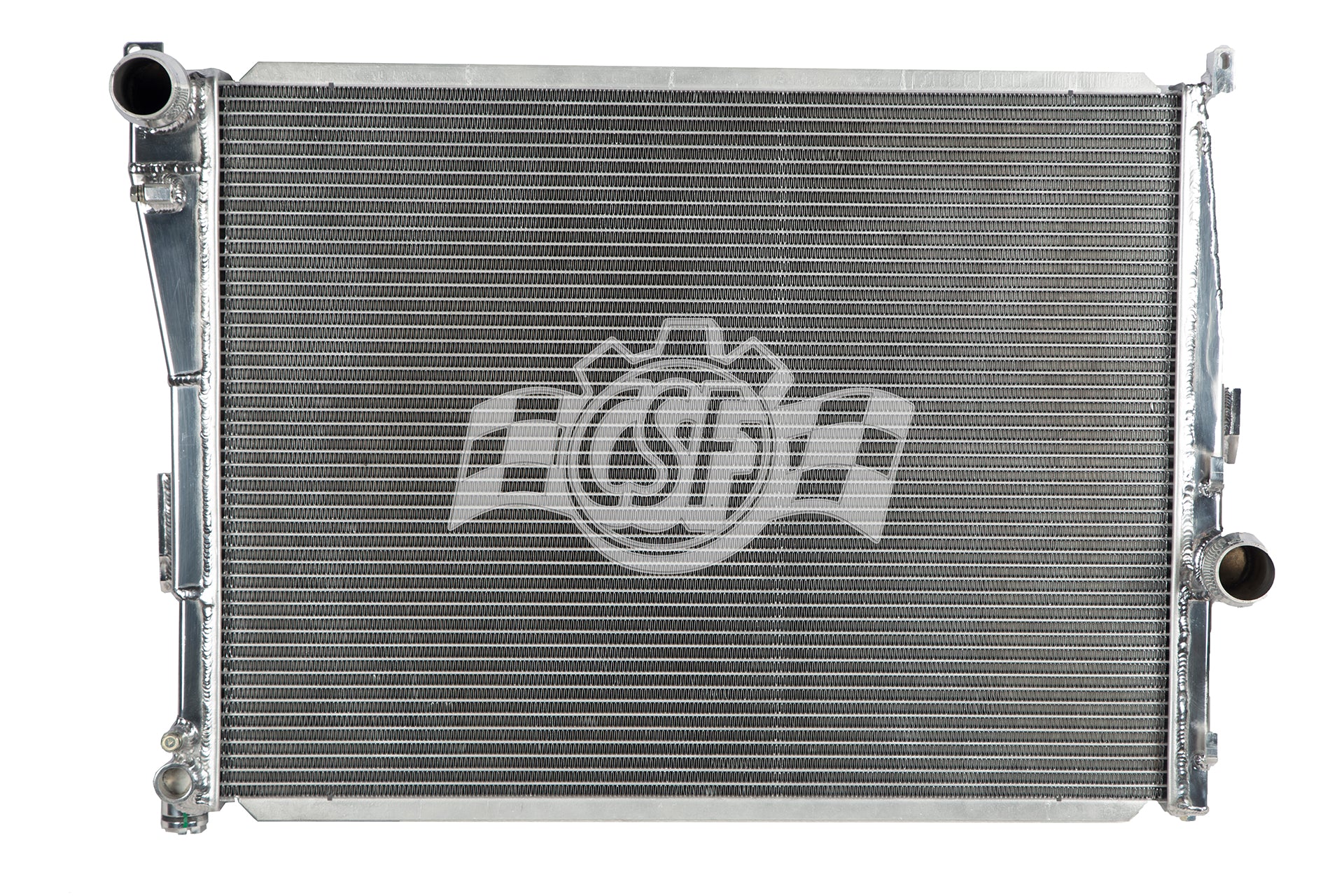

BMW E46 3-Series / 03-05 E85/E86 Z4 High-Performance All-Aluminum Radiator

Fitment Note: If you are having any clearance issues between your expansion tank and any pulleys, be sure you are mounting the radiator as far forward as possible. If there is clearance between the pulley and expansion tank but you find evidence of rubbing, your engine and transmission mounts are worn out and should be replaced. This will minimize the movement of the engine and prevent rubbing under load.

• 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology
• Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined "Quick-Connect" Inlet/Outlet Connections
• CNC Machined Brackets and Fittings for Superb Fit and Durability
• All-Aluminum Race Style Drain Plug
• Smooth Satin Finish
• "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud

Attributes:

• Brand Name: CSF Cooling - Racing & High Performance Division
• GTIN: 00710353030554
• Coolant Hose Inlet Connection Type: OE Type Connection
• Coolant Hose Outlet Connection Type: OE Type Connection

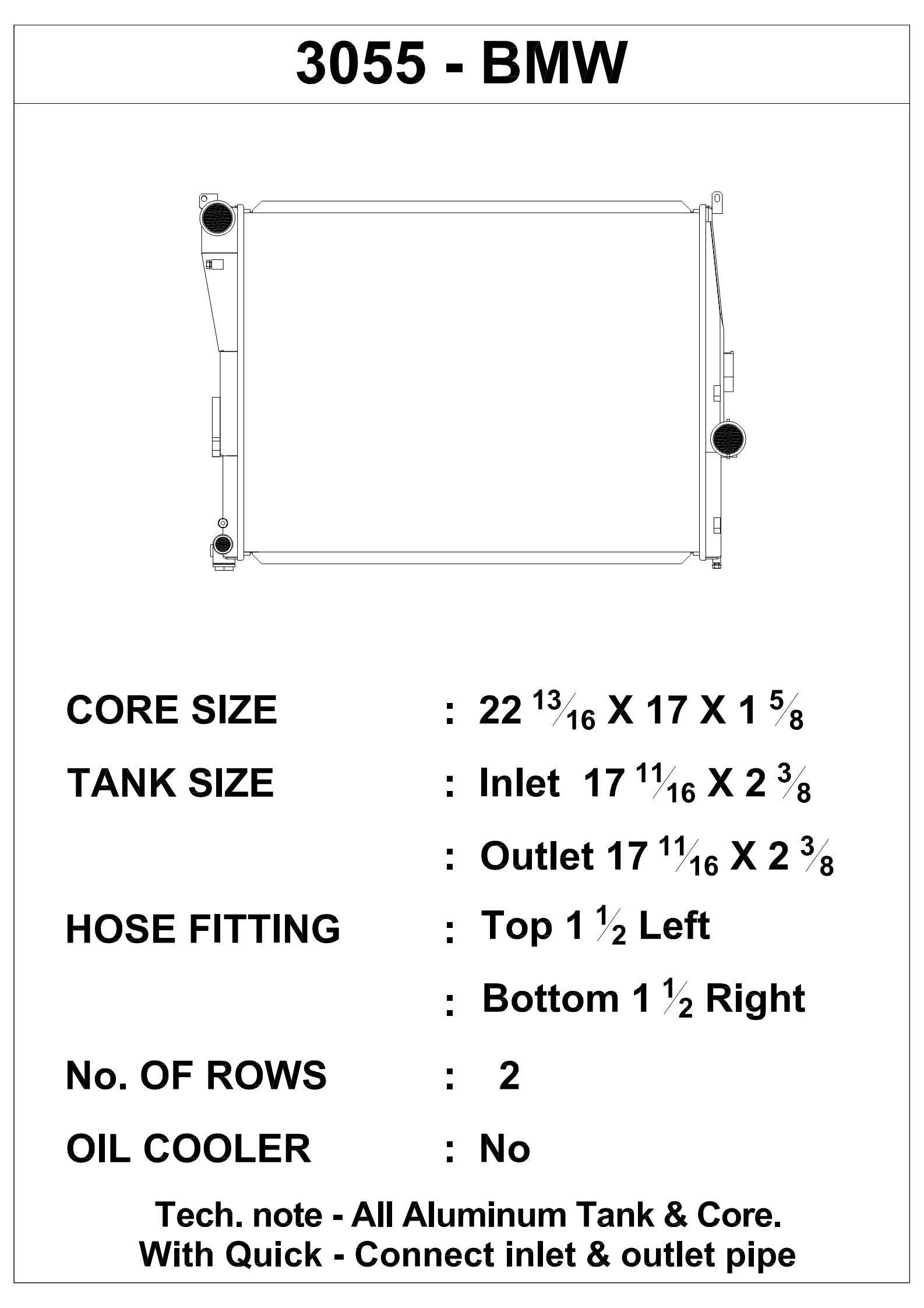

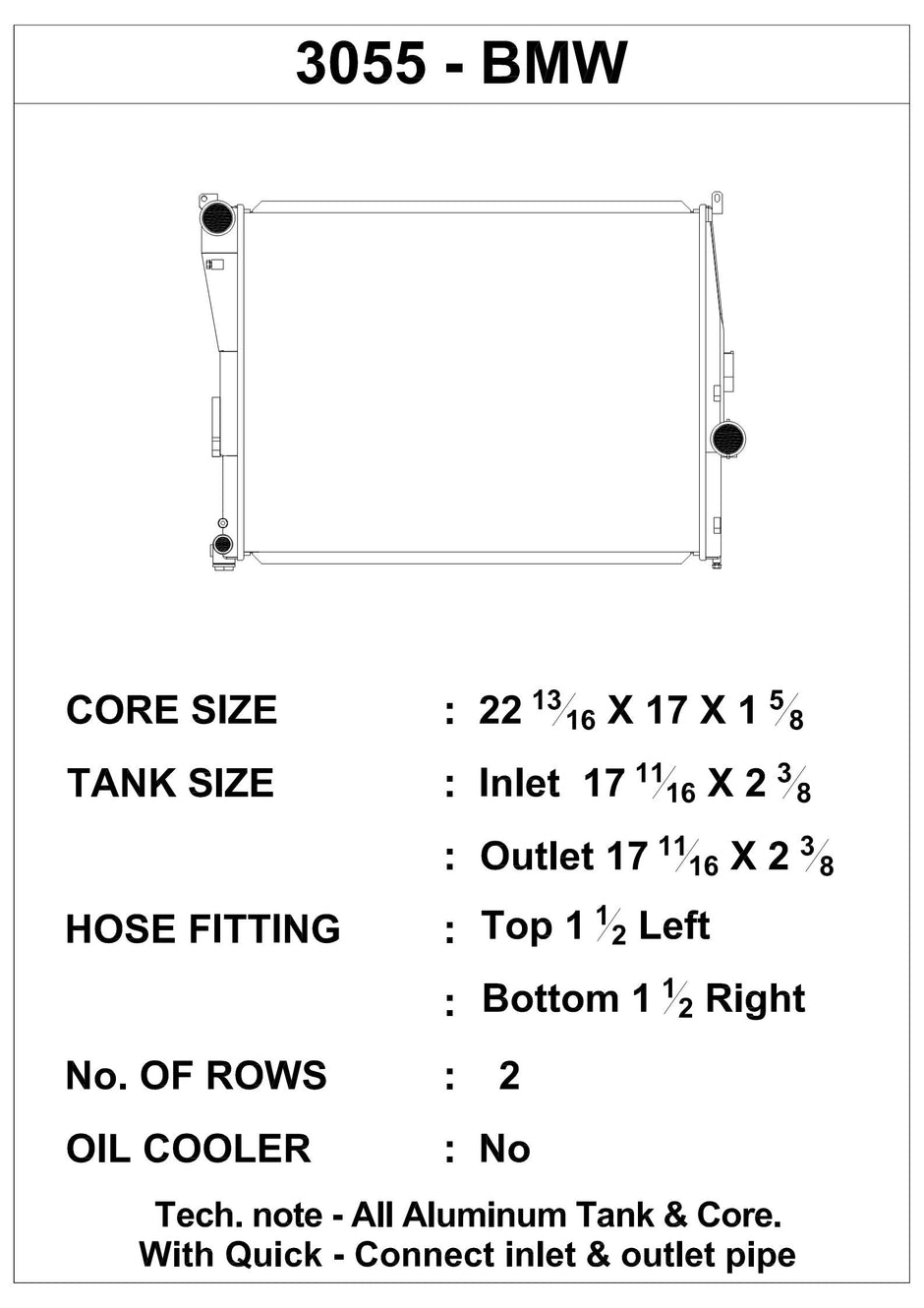

• Core Height: 22.8125 in.
• Core Material: Aluminum
• Core Row Quantity: 2
• Core Thickness: 1.625 in.
• Core Width: 17 in.
• Down Flow Or Cross Flow Type: Cross Flow
• Finish/Color: Satin
• Frame Included: No
• Grade Type: Performance
• Inlet Connector Type: Slip On
• Inlet Diameter: 1.5 in.
• Inlet Location: Top Left
• Installation Type: Drop-In Fit Installation
• Internal Engine Oil Cooler: No
• Internal Transmission Oil Cooler: No
• Mounting Hardware Included: No
• Mounting Type: Mounts with OE Hardware
• Outlet Connector Type: Slip On
• Outlet Diameter: 1.5 in.
• Outlet Location: Bottom Right
• Radiator Cap Included: No
• Tank Material: Aluminum
• Thermostat Included: No

Extended Information:

• Country of Origin: Indonesia
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 29 x 6 x 21 inches
• Weight: 12 POUNDS
